Description

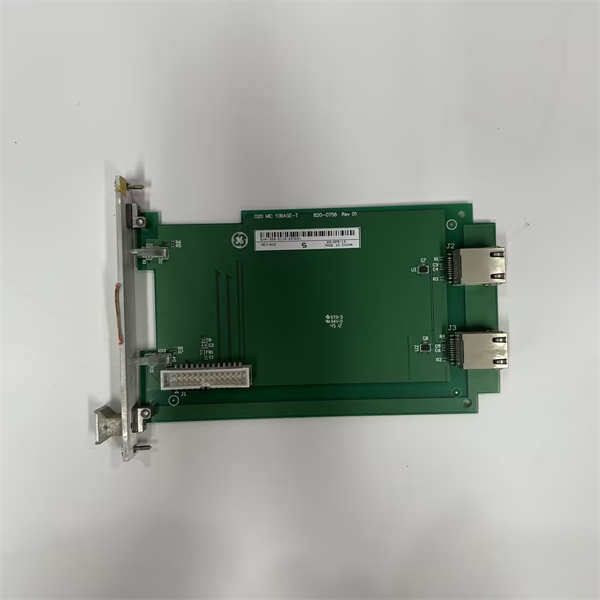

The GE D20 EME210BASE-T is a specialized Ethernet Network Card Module designed for seamless integration within GE’s D20MX and D200 series chassis. These chassis form the backbone of GE’s robust substation automation and Remote Terminal Unit (RTU) solutions, primarily used in critical infrastructure applications like power transmission and distribution. The D20 EME210BASE-T provides essential 10BASE-T (10 Mbps Ethernet over twisted pair) connectivity, enabling reliable communication between devices within a distributed control system (DCS) and allowing for the transfer of crucial operational data.

Application Scenarios:

Consider a remote electrical substation, a critical node in the power grid that monitors and controls high-voltage equipment like circuit breakers, transformers, and reclosers. Data from these intelligent electronic devices (IEDs) needs to be securely and reliably transmitted to a central control center for real-time monitoring, alarming, and remote control commands. In older substations, communication might have relied on slower, less flexible serial connections. The integration of the GE D20 EME210BASE-T network card module into the substation’s D20MX controller significantly upgraded its communication capabilities. This module enabled the D20MX to establish a fast, dedicated Ethernet link to the substation’s local area network (LAN), allowing for high-speed data acquisition from multiple IEDs simultaneously. This meant operators at the control center received real-time status updates, meter readings, and alarm notifications much faster, enabling quicker response to grid events, improved operational efficiency, and enhanced grid reliability. The D20 EME210BASE-T effectively transformed the substation into a more connected and responsive component of the smart grid.

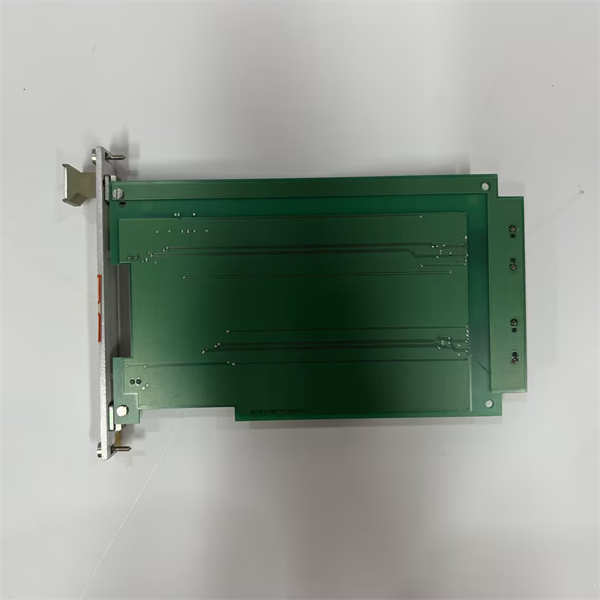

GE D20 EME210BASE-T

Parameter:

Here are the key parameters for the GE D20 EME210BASE-T:

Export to Sheets

Technical Principles and Innovative Values:

The GE D20 EME210BASE-T module’s effectiveness in substation automation stems from its specialized design principles and integration capabilities.

• Innovation Point 1: Dedicated 10BASE-T Ethernet Connectivity for Industrial Control: While 10BASE-T may seem dated by modern commercial Ethernet standards, its inherent simplicity, robustness, and proven reliability make it highly suitable for the long life cycles and stability required in industrial control and substation environments. The D20 EME210BASE-Tprovides a purpose-built, hardened Ethernet interface that is designed to withstand the electrical noise, temperature extremes, and vibration common in substations, ensuring consistent data flow for critical monitoring and control applications. This contrasts with general-purpose Ethernet cards which may not offer the same level of industrial resilience.

• Innovation Point 2: Flexible Channel Configuration and Diagnostic Support: The module’s ability to be configured for LAN A and LAN B via jumpers (JP1 and JP2) provides flexibility for network architecture, potentially supporting redundant communication paths or segmenting network traffic. Furthermore, the detailed pin functions allowing for “test jabs” and “link tests” indicate built-in diagnostic capabilities. This enables engineers to quickly verify communication links and troubleshoot network issues directly at the module level, reducing downtime and simplifying maintenance in complex substation networks.

• Innovation Point 3: Seamless Integration within the D20 Platform: The D20 EME210BASE-Tis not a standalone device but an integral part of the GE D20 and D200 chassis. Its specific slot requirement and need for an interface cable (P/N 977-0298) to connect to the D20EME Ethernet/Memory board highlight a tightly integrated design. This ensures optimal performance and compatibility within GE’s established substation automation architecture, leveraging the D20 controller’s extensive protocol library (DNP3, IEC 61850, Modbus, etc.) to communicate with a wide range of IEDs and SCADA master stations. This plug-and-play integration significantly simplifies system setup and expansion for GE D20 users.

Application Cases and Industry Value:

In a regional utility’s distribution network, challenges arose in quickly identifying the location of faults and restoring power to unaffected areas. Their existing RTUs in recloser controllers communicated over slow, unreliable serial lines, causing delays in receiving critical status updates and issuing remote commands. This resulted in longer outage times for customers and increased operational costs.

The utility upgraded several of its remote recloser controllers with GE D20MX units equipped with the D20 EME210BASE-T modules. This allowed the controllers to directly connect to the utility’s fiber optic-based substation LAN. The real-time, high-speed Ethernet communication facilitated by the D20 EME210BASE-T meant that fault indications from the reclosers were transmitted almost instantaneously to the distribution management system (DMS). Operators could immediately see which reclosers had tripped, analyze their status, and issue remote reclose or isolation commands much faster. This drastically reduced the mean time to restoration (MTTR) for outages, significantly improving customer satisfaction and grid reliability. Furthermore, the enhanced data flow enabled more sophisticated automation schemes at the substation level, optimizing power flow and reducing line losses. The D20 EME210BASE-T played a crucial role in modernizing the utility’s distribution automation strategy.

GE D20 EME210BASE-T

Related Product Combination Solutions:

The GE D20 EME210BASE-T is an integral part of the GE D20/D200 substation automation platform. It is typically combined with:

• GE D20MX or D200 Chassis: The main enclosure and backplane that houses the D20 EME210BASE-Tand other D20 modules.

• GE D20EME Ethernet/Memory Board: The D20 EME210BASE-Tconnects to this board (via J1 and interface cable P/N 977-0298) to provide the actual Ethernet and memory expansion capabilities for the D20 system.

• GE D20ME II CPU Board: The central processing unit of the D20 system, which manages data collection, executes local automation algorithms, and communicates with the network via the D20 EME210BASE-T.

• GE D20 I/O Modules (e.g., D20S, D20A, D20K, D20C): These modules handle the physical digital and analog inputs/outputs from substation equipment, with their data being processed by the D20 CPU and then communicated over the network via the D20 EME210BASE-T.

• GE Multilin D20E Ethernet I/O Module: For newer installations or upgrades, the D20E is a next-generation Ethernet I/O module that replaces legacy D20 I/O and offers enhanced features and performance, also integrating with the D20/D200 system (though the D20 EME210BASE-Tis specifically for the EME board).

• GE Multilin Protection Relays / IEDs: Devices like the F60, G60, D400, etc., that the D20 controller communicates with to gather data for substation automation, transmitted via the D20 EME210BASE-Tto a central control.

• SCADA Master Station / HMI Software: The higher-level control system or human-machine interface (HMI) that receives data and sends commands through the network link established by the D20 EME210BASE-T.

Installation, Maintenance, and Full-Cycle Support:

The GE D20 EME210BASE-T is designed for integration into hardened industrial control systems, emphasizing ease of installation and robust, low-maintenance operation. Installation typically involves sliding the module into the designated left-most slot of the D20MX or D200 chassis and securing it. Crucially, an interface cable (P/N 977-0298) is required to connect it to the D20EME Ethernet/Memory module. Configuration, including setting jumper positions for LAN A/B operation, is done during system setup using GE’s specific configuration tools (e.g., ConfigPro or SGConfig software). Its industrial design allows it to operate reliably within the specified temperature and humidity ranges of substation environments.

Routine maintenance for the D20 EME210BASE-T itself is minimal due to its solid-state nature. Periodic checks of cable connections and physical integrity within the D20 chassis are typically part of overall system maintenance. The module’s design, including its jumper configurations and detailed pin functions, supports straightforward diagnostics for network connectivity issues. In the event of a fault, the modular design of the D20 system allows for relatively quick replacement of the module, minimizing disruption to substation operations.

GE (specifically GE Grid Solutions/GE Vernova) provides comprehensive full-cycle support for the D20 platform and its components, including the D20 EME210BASE-T. This includes access to detailed technical manuals, software tools for configuration and diagnostics, and a global network of specialized field service engineers. Despite the D20 series being a mature product line, GE continues to offer support, including repair services and spare parts availability (subject to notice periods), ensuring the long-term reliability and operational continuity of your critical substation automation infrastructure.
