Description

The GE IS215WETAH1BB IS200WETAH1AGC is a critical component within GE’s Mark VIe turbine control system. Specifically, it functions as a Terminal Board / Top Box A Board for analog input applications. It is designed to work in conjunction with an IS200WETA series Analog Input Module (such as the IS200WETAH1AGC or IS200WETAH1AEC) to form a complete analog input solution.

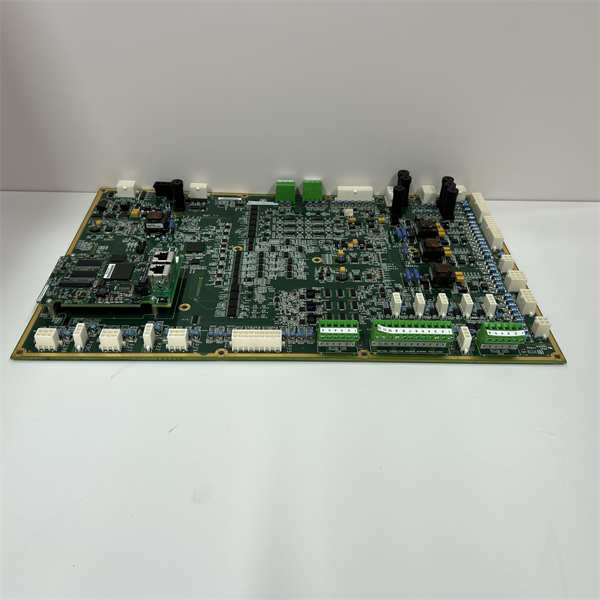

GE IS215WETAH1BB IS200WETAH1AGC

Product Description: GE IS215WETAH1BBIS200WETAH1AGC  (Mark VIe Analog Input Terminal Board)

The GE IS215WETAH1BB IS200WETAH1AGC is a specialized circuit board that serves as the interface between field wiring from sensors and the core analog input processing module (IS200WETA) within a GE Mark VIe control system. Often referred to as a “Top Box A Board,” its primary roles include:

• Physical Connection:Providing robust screw terminals for direct connection of various analog sensor signals (e.g., thermocouples, RTDs, pressure transducers, current/voltage signals) from the turbine or industrial process.

• Signal Protection:Incorporating circuitry for voltage protection, noise filtering, and proper grounding to ensure the integrity of the analog signals entering the sensitive Mark VIe electronics. This is vital in electrically noisy industrial environments.

• Module Integration:Serving as the mechanical and electrical mating point for the IS200WETA Analog Input Module, allowing it to securely plug in and communicate with the broader Mark VIe control system via the VME bus.

The “IS215” prefix in GE’s Mark VIe nomenclature generally denotes a terminal board, indicating its role in providing the physical interface and robust connections for I/O modules. The “WETA” acronym often relates to “Wind Energy Topbox A” or “Wet End Turbine Application,” pointing to its common use in turbine control, particularly in wind energy or applications involving fluid/hydraulic systems where the “wet end” designation applies.

Application Scenarios:

Imagine a large gas turbine in a power generation plant. Hundreds of analog sensors monitor critical parameters: bearing temperatures via RTDs, exhaust gas temperatures via thermocouples, fuel flow rates via current loops (4-20mA), and vibration levels via voltage signals. All this data must be accurately and reliably fed into the Mark VIe control system for real-time control, monitoring, and protective actions.

The IS215WETAH1BB IS200WETAH1AGC board would be installed in the Mark VIe control panel, typically within an I/O rack. The analog sensor cables from the turbine would terminate at the screw terminals of the IS215WETAH1BB IS200WETAH1AGC . For example:

• Temperature Sensors:Thermocouple wires from turbine exhaust ducts would connect to specific terminals on the IS215WETAH1BB.

• Pressure Transducers:Wires from pressure sensors in the fuel system or lubrication system would also connect here.

• Vibration Monitors:Voltage signals from proximity probes monitoring shaft vibration would be routed to these terminals.

The corresponding IS200WETA Analog Input Module (e.g., IS200WETAH1AEC) would then be plugged directly into the IS215WETAH1BB. The IS215WETAH1BB IS200WETAH1AGC ensures that these sensitive analog signals are securely connected, protected from electrical transients, and properly grounded before they are passed to the IS200WETA for analog-to-digital conversion and processing. This robust interface is crucial for maintaining data integrity and system reliability, directly impacting the turbine’s efficiency, safety, and operational uptime.

Parameter:

Here are the key parameters for the GE IS215WETAH1BB Terminal Board:

GE IS215WETAH1BB IS200WETAH1AGC

Technical Principles and Innovative Values:

The GE IS215WETAH1BB terminal board, while seemingly a simple interface, embodies critical technical principles essential for the reliability of the Mark VIe system:

• Innovation Point 1: Robust Field Wiring Interface and Signal Integrity: The IS215WETAH1BB IS200WETAH1AGC provides a highly robust and reliable termination point for analog signals coming directly from the field. Its design focuses on maintaining signal integrity. This includes high-quality screw terminals that ensure secure connections resistant to vibration, as well as PCB layout techniques that minimize noise pickup. This is crucial because analog signals, especially low-level ones like from thermocouples, are highly susceptible to noise. The board acts as the first line of defense in ensuring clean, accurate data reaches the control system.

• Innovation Point 2: Enhanced Electrical Protection and Grounding Schemes: A key innovation is the integrated electrical protection and sophisticated grounding strategy. The board is designed to handle the often harsh electrical environment of industrial plants, featuring components for overvoltage protection (e.g., transient voltage suppressors) and careful isolation between different circuits. Crucially, it provides a dedicated, robust grounding mechanism, often through a specific ground terminal or shield bar. Proper grounding is paramount in preventing ground loops and common-mode noise, which can severely degrade analog signal accuracy and potentially damage sensitive electronics.

• Innovation Point 3: Facilitating Modular and Maintainable I/O Architecture: The IS215WETAH1BB IS200WETAH1AGC is a core part of the Mark VIe’s modular I/O design. It allows the expensive and sensitive analog input processing modules (IS200WETA) to be easily plugged in and replaced without disturbing the field wiring. This “hot-swap” capability (in many Mark VIe configurations) minimizes maintenance time and simplifies troubleshooting. The clear labeling and standardized connections reduce the likelihood of wiring errors during installation or replacement, significantly improving overall system maintainability and reducing operational downtime.

Application Cases and Industry Value:

A large pulp and paper mill was upgrading its boiler control system. The existing system suffered from frequent signal noise, leading to inaccurate temperature and pressure readings, causing inefficient boiler operation and occasional trips. They needed a more reliable solution to monitor critical boiler parameters.

They implemented a GE Mark VIe system, incorporating numerous IS215WETAH1BB IS200WETAH1AGC terminal boards paired with IS200WETA analog input modules for monitoring. For example:

• Boiler Drum Level:Multiple differential pressure transmitters (outputting 4-20mA) were connected to the IS215WETAH1BB IS200WETAH1AGC boards, providing highly accurate and stable drum level readings.

• Steam Temperature/Pressure:Thermocouples and pressure transducers in steam headers were terminated on the IS215WETAH1BB.

The robust design of the IS215WETAH1BB IS200WETAH1AGC significantly reduced noise interference on these critical signals. This led to:

• Improved Boiler Efficiency:More accurate analog readings allowed for tighter control of fuel-air ratio and water level, leading to optimal combustion and steam production, resulting in energy savings of 3%.

• Reduced Unscheduled Downtime:Enhanced signal integrity and protection prevented nuisance trips caused by noisy or erroneous readings, decreasing boiler trips by 20%.

• Faster Troubleshooting:The modularity allowed for quick identification and replacement of faulty components, minimizing repair time.
