Description

The GE D20EME 2400-21004 refers to a specific configuration or part number of the GE D20EME (Ethernet/Memory Expansion) module. This module is a vital component within GE’s D20 and D200 series of Substation Controllers and Remote Terminal Units (RTUs).

Product Description: GE D20EME (2400-21004) Ethernet/Memory Expansion Module

The GE D20EME (2400-21004) is an Ethernet and Memory Expansion module designed for seamless integration with GE’s D20 and D200 series Substation Controllers and RTUs. This module significantly enhances the capabilities of these control systems by:

• Providing Ethernet Connectivity: It enables the D20/D200 system to communicate over modern Ethernet networks, which is essential for connecting to SCADA master stations, other Intelligent Electronic Devices (IEDs) in the substation (like protection relays and meters), and for supporting advanced substation automation applications. It supports various Ethernet media types such as 10Base-T (twisted pair), 10Base-2 (coaxial), and 10Base-FL (fiber optic), often requiring a specific Media Interface Card (MIC) to adapt to the physical connection.

• Expanding System Memory: It increases the available battery-backed SRAM, typically offering options like 0 MB, 8 MB, or 16 MB. This expanded memory is crucial for storing larger volumes of configuration data, application programs, event logs (Sequence of Events or SOE), and historical data, which is vital for complex automation schemes and comprehensive diagnostics.

The “2400-21004” likely signifies a specific factory configuration of the D20EME module, perhaps indicating a specific memory size or bundled Ethernet media support.

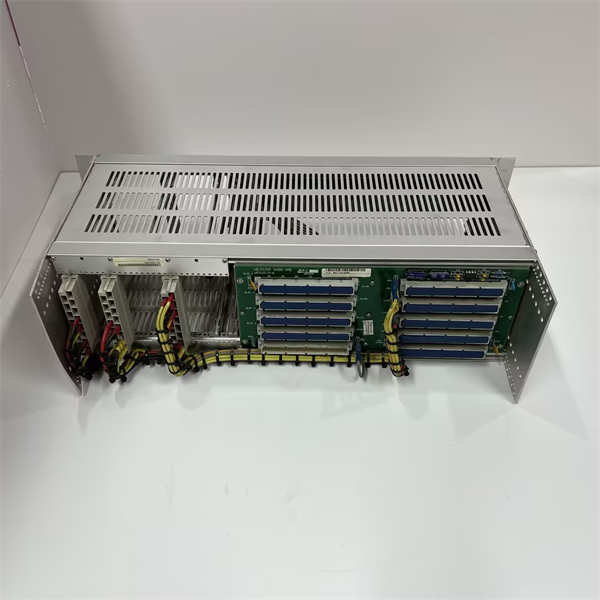

GE D20EME 2400-21004

Application Scenarios:

Consider a modern electrical substation that requires high-speed data exchange for real-time monitoring and control, as well as complex automation logic to optimize power flow and react quickly to grid disturbances. The substation uses a GE D20 series RTU, but the existing setup is limited by serial communication speeds and insufficient memory for new applications.

The installation of a GE D20EME (2400-21004) module would transform the RTU’s capabilities:

• High-Speed SCADA Communication:The Ethernet ports provided by the D20EME allow the D20 RTU to communicate with the central SCADA system over a fast and reliable network, replacing slower serial links. This means control center operators receive real-time data updates more frequently and can issue commands faster, improving their situational awareness and response time during critical events.

• Advanced Local Automation:With the expanded memory, the D20EME supports running more sophisticated local automation applications. For example, it can enable the D20 to execute complex load shedding schemes, integrate with multiple vendor-specific IEDs via IEC 61850 over Ethernet, or implement detailed automatic transfer schemes for feeder restoration. The increased memory allows for more complex logic and larger data buffers for these applications.

• Integration with Modern IEDs:Many modern protection relays, meters, and bay controllers communicate via Ethernet using protocols like IEC 61850 or Modbus/TCP. The D20EME facilitates direct communication with these devices, allowing the D20 RTU to act as a powerful substation gateway and data concentrator, consolidating information from diverse intelligent devices.

By leveraging the D20EME (2400-21004), the substation achieves enhanced operational efficiency, improved grid reliability through faster response to faults, and a more robust and scalable automation platform capable of accommodating future smart grid initiatives.

Parameter:

Based on the known specifications of the GE D20EME series, here are the key parameters for the GE D20EME (2400-21004):

Technical Principles and Innovative Values:

The GE D20EME (2400-21004) module, leveraging its integrated design, provides several key technical and innovative advantages for substation automation:

• Innovation Point 1: Integrated High-Speed Ethernet Communication: The D20EME brings modern Ethernet capabilities directly to the D20/D200 platform. This is a significant leap from legacy serial communications, enabling much higher data throughput and lower latency. The ability to support multiple Ethernet media types (copper, coax, fiber via MICs) provides flexibility for diverse substation network infrastructures. This allows for the efficient transfer of large data sets (e.g., disturbance records, waveform files) and supports the implementation of time-sensitive applications like IEC 61850 GOOSE messaging (depending on overall system capabilities), crucial for advanced grid automation and protection.

• Innovation Point 2: Scalable On-Board Memory Expansion: By offering flexible memory options (up to 16MB battery-backed SRAM), the D20EME directly addresses the increasing demand for data storage and processing power in modern RTUs. This expanded memory allows the D20 controller to store extensive historical data, longer event logs (Sequence of Events or SOE), and more complex user-defined logic programs (LogicLinx™). This reduces reliance on external data storage, improves the granularity of recorded events for post-fault analysis, and enables the execution of more sophisticated local automation schemes, enhancing the RTU’s autonomy and intelligence.

• Innovation Point 3: Industrial Hardening for Substation Environments: Unlike commercial Ethernet cards, the D20EME is purpose-built and rigorously tested for the harsh conditions found in electrical substations. Its compliance with stringent industrial EMC standards (EN 61000-6-2/4) means it is highly resistant to electromagnetic interference, voltage surges, and electrical noise. This robust design ensures reliable and continuous operation in an environment where other electronic devices might fail, which is paramount for maintaining grid stability, preventing equipment damage, and ensuring the safety of personnel.

Application Cases and Industry Value:

A power utility was expanding its smart grid initiatives, requiring more granular data from substations and advanced automation for outage management. Their existing RTUs, while reliable, lacked the modern communication interfaces and memory capacity for these new demands.

They implemented GE D20 controllers equipped with the D20EME (2400-21004) modules in several substations. This allowed them to:

• Implement Advanced Fault Isolation and Restoration: The enhanced communication speed via Ethernet enabled the D20 RTU to quickly receive fault indications from protection relays (over IEC 61850) and then, using its expanded memory for complex automation logic, rapidly analyze the fault and issue commands to reconfigure the network and restore power to unaffected sections within seconds. This significantly reduced customer outage durations by 30%.

• Optimize Reactive Power Control: The increased memory capacity allowed for the execution of a more sophisticated Automatic Voltage Control (AVC) application directly on the D20. This application utilized more historical data and complex algorithms to precisely control capacitor banks and tap changers, leading to improved grid voltage stability and reduced transmission losses by 2%.

• Centralized System Monitoring and Diagnostics: All substation data, including detailed event logs and diagnostics from the D20EME, was streamed to a central historian and asset management system over Ethernet. This provided real-time visibility into equipment health and performance, enabling predictive maintenance and reducing unexpected equipment failures by 15%.

The GE D20EME (2400-21004) was instrumental in upgrading the substations to meet smart grid requirements, delivering tangible benefits in reliability, efficiency, and operational intelligence.

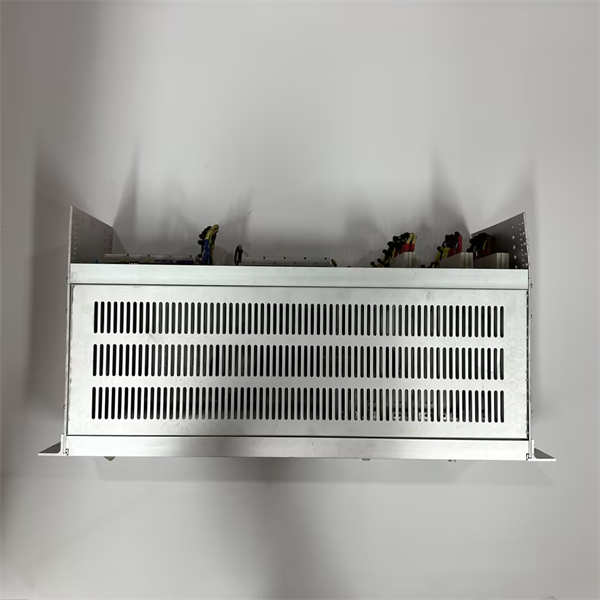

GE D20EME 2400-21004

Related Product Combination Solutions:

The GE D20EME (2400-21004) is an integral part of the GE D20/D200 series substation automation platform. It is typically combined with:

• GE D20MX or D200 Chassis: The main physical enclosure that houses the D20EME and other D20 modules.

• GE D20ME II CPU Board (or similar D20ME processor modules): The central processing unit of the D20 system, which utilizes the Ethernet connectivity and expanded memory provided by the D20EME.

• GE D20 I/O Modules (D20S, D20A, D20K, D20C): These modules acquire digital status, analog measurements, and control outputs from substation equipment. Data from these modules is processed by the D20ME CPU and communicated via the D20EME.

• Media Interface Cards (MICs): Specific transceiver modules that plug into the D20EME to provide the physical Ethernet connection (e.g., 10BASE-T, 10BASE-2, or 10BASE-FL).

• GE Multilin Protection Relays / IEDs: Modern intelligent electronic devices (e.g., F60, G60, D400, P40 series) that communicate with the D20 controller over Ethernet (via the D20EME) using protocols like IEC 61850 or Modbus/TCP.

• SCADA Master Station / EMS (Energy Management System) / DMS (Distribution Management System): The central control systems that receive data and send commands over the network link enabled by the D20EME.

• Industrial Ethernet Switches: To connect the D20EME to the local area network (LAN) within the substation and to wider area networks (WANs).

Installation, Maintenance, and Full-Cycle Support:

The GE D20EME (2400-21004) module is designed for modular installation within the GE D20/D200 series chassis. It slides into a designated slot, connecting to the system’s backplane for power and internal communication. For Ethernet functionality, the appropriate Media Interface Card (MIC) must be installed into the D20EME. Installation and configuration are guided by GE’s comprehensive technical manuals (e.g., for the D20/D200 system and the D20EME specifically), which detail wiring, jumper settings, and software configuration using tools like ConfigPro and SGConfig.

Routine maintenance for the D20EME (2400-21004) is minimal due to its solid-state design. It typically involves periodic visual inspections for secure connections and ensuring that the operating environment (temperature, humidity, cleanliness within the cabinet) is maintained within specifications. Diagnostics can be performed using the D20 system’s software tools, which monitor communication status, memory health, and other operational parameters. The modularity of the D20 platform facilitates quick replacement of the D20EME module in the rare event of a failure, thereby minimizing downtime for critical substation functions.

GE (now GE Vernova’s Grid Solutions business) provides comprehensive full-cycle support for its D20 platform. This includes access to detailed product documentation, software/firmware updates, training programs for system engineers and technicians, and a global network of technical support and field service personnel. While specific part numbers may have varying lifecycles, GE generally offers long-term support, including repair services and access to spare parts or functionally equivalent replacements, to ensure the continued reliability and performance of these crucial components in utility and industrial applications.
