Description

The ABB 5SHX1960L0006 3BHB016120R0002 is an IGCT Module (Integrated Gate-Commutated Thyristor), specifically identified as a Gate Module or Thyristor IGCT module. It’s a high-power semiconductor device with an integrated gate driver, designed by ABB for demanding power electronics applications.

Product Description: ABB 5SHX1960L0006 3BHB016120R0002 IGCT Module

The ABB 5SHX1960L0006 3BHB016120R0002 is a state-of-the-art power semiconductor switching device from ABB. At its core, it’s an Integrated Gate-Commutated Thyristor (IGCT), which represents a significant advancement in power electronics. This module is more than just a raw semiconductor; it integrates the IGCT chip with an anti-parallel diode and a sophisticated gate drive circuit, all connected in a low-inductance manner to optimize performance.

Key features and functionalities include:

• IGCT Technology: It uniquely combines the strengths of traditional GTO (Gate Turn-Off) thyristors and IGBTs (Insulated Gate Bipolar Transistors). This means it offers the very low on-state lossescharacteristic of thyristors (leading to high energy efficiency) while providing the stable and fast turn-off capabilities of transistors. This combination is crucial for high-power, high-voltage, and medium-frequency switching applications.
• Integrated Gate Driver: The “Gate Module” designation highlights that the intricate gate drive circuitry required to control the IGCT is integrated directly into the module. This integration ensures precise and reliable turn-on/turn-off characteristics, optimizing the switching performance and providing crucial protection functions.
• High Power Handling: Designed to manage very high currents and voltages, making it suitable for demanding industrial and power system environments.
• High Reliability and Robustness: Engineered for operation in harsh conditions, it includes built-in protection features like overload and short-circuit protection, ensuring long-term stable performance and equipment safety.
• Compact Design: Despite its high power capabilities, the module maintains a compact form factor (e.g., around 91mm dimensions for some similar gate units), facilitating easier integration into various power systems and optimizing space.

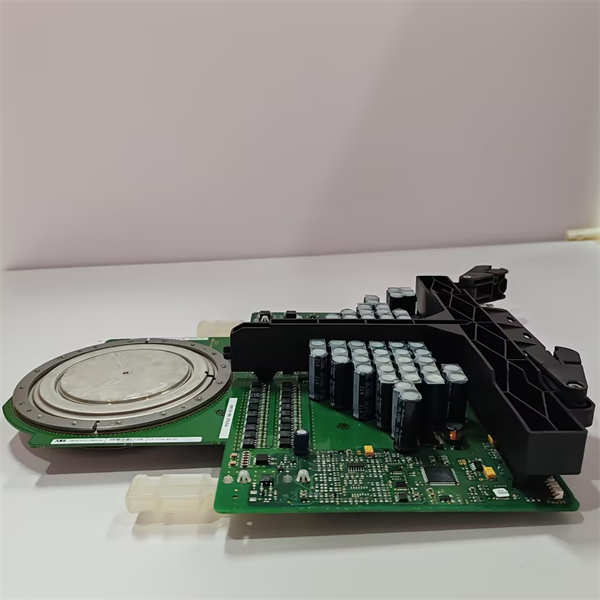

  ABB-5SHX1960L0006 3BHB016120R0002

Application Scenarios:

The ABB 5SHX1960L0006 3BHB016120R0002 IGCT module is primarily employed in medium-voltage (MV) and high-power applications where precise, efficient, and reliable control of large electrical power flows is critical.

Consider its use in industrial drive systems or renewable energy integration:

• Medium Voltage Drives (e.g., ABB ACS 6000/ACS 8000 series): This module is a core component within the power converter sections of these large drives, which control high-power AC motors in industries like mining, cement, metals (e.g., rolling mills), and oil & gas. For example, in a steel mill’s cold rolling mill, the IGCT modules would precisely control the speed and torque of the main mill motors, allowing for accurate thickness control and high-quality finished products. The IGCT’s high efficiency reduces energy consumption, and its fast response allows for dynamic control during the rolling process.
• Wind Turbine Power Converters: In multi-megawatt wind turbines, especially offshore wind farms, the IGCT module is vital in the full-power converter. This converter converts the variable frequency AC power from the wind turbine generator into stable, grid-compliant AC power. The IGCT’s high power handling and efficiency maximize the energy extracted from the wind, while its fast switching supports advanced grid code compliance (e.g., fault ride-through capabilities).
• Active Rectifier Units (ARUs) and Voltage Source Inverters (VSIs): Used in various power conversion systems for applications like grid-tie inverters, large-scale battery energy storage systems, and industrial power supplies. The IGCT’s ability to efficiently handle bidirectional power flow is advantageous in these scenarios.
• Grid Interconnection and Power Quality: In static compensators (STATCOMs) or other grid devices, these modules enable rapid reactive power compensation to stabilize the grid and improve power quality.

Parameter:

While specific current and voltage ratings for 5SHX1960L0006 can vary by exact datasheet, here are general parameters derived from its type (IGCT module) and common applications:

Technical Principles and Innovative Values:

The ABB 5SHX1960L0006 3BHB016120R0002 embodies several pivotal technical principles and provides substantial innovative value:

• Innovation Point 1: Optimized IGCT Technology for Unrivaled Efficiency: The core innovation is the perfection of the IGCT device, merging the high current density and low conduction losses of traditional thyristors with the gate-controlled turn-off capability of transistors. This combination results in a power switch with exceptionally low energy dissipation during the “on” state, which is paramount in high-power applications. This translates directly to higher overall system efficiency, reduced cooling requirements, and significant energy savings over the operational lifetime of the equipment.
• Innovation Point 2: Enhanced Reliability Through Integrated Design and Robustness: The module’s design integrates the gate driver directly with the IGCT chip through a very low-inductance connection. This eliminates external gate drive circuitry and minimizes parasitic inductances, leading to superior switching characteristics and improved reliability. Furthermore, these modules are built to withstand the demanding conditions of industrial environments, including thermal cycling, vibration, and EMI. Built-in protection features like overcurrent and short-circuit protection further enhance system safety and longevity, reducing costly downtimeand extending the service life of high-value assets.
• Innovation Point 3: High Power Density and Scalability for Complex Systems: The compact design of the 5SHX1960L0006 allows for high power density in power converters. This means more power can be handled in a smaller physical footprint, leading to more compact and lighter power equipment (e.g., smaller drive cabinets, lighter nacelles in wind turbines). The modular nature of these IGCTs also allows for easy scalability. Multiple modules can be combined in parallel or series to achieve even higher voltage and current ratings, making them adaptable to a wide range of power conversion architectures, from industrial drives to utility-scale grid solutions.

Application Cases and Industry Value:

A leading global manufacturer of large-scale offshore wind turbines was striving to increase the power rating and reduce the overall size and weight of their nacelle-mounted power converters. Their previous designs were limited by the performance and physical size of power semiconductors.

They partnered with ABB to integrate the 5SHX1960L0006 3BHB016120R0002 IGCT modules into the latest generation of their wind turbine converters. The results were transformative:

• Increased Turbine Power Output and Energy Capture: The higher efficiency and robust current handling of the IGCT modules allowed the power converters to process more power with less loss. This contributed to enabling turbine designs with increased nominal power ratings (e.g., from 12MW to 15MW+)and improved overall energy capture from the wind, directly impacting the wind farm’s electricity production and revenue.
• Reduced Nacelle Size and Weight: The high power density of the IGCT modules allowed for a more compact power converter design. This led to a significant reduction in the size and weight of the nacelle equipment, simplifying installation, reducing structural costs, and enabling larger turbines to be deployed more easily.
• Enhanced Grid Stability and Reliability: The fast switching characteristics of the IGCTs allowed for more dynamic and precise control of the power fed into the grid. This improved the turbine’s ability to support grid stability, respond to grid events (like voltage sags), and comply with increasingly strict grid codes, minimizing penalties and maximizing operational uptime.

The ABB IGCT module was a foundational technology that allowed the wind turbine manufacturer to achieve next-generation performance, demonstrating its critical value in advancing renewable energy solutions.

Related Product Combination Solutions:

The ABB 5SHX1960L0006 3BHB016120R0002 IGCT Module is typically integrated into complex power electronics systems, working in conjunction with:

• ABB ACS 6000 / ACS 8000 / ACS 5000 Medium Voltage Drives: These are the overarching drive systems where the IGCT modules form the power switching stage.
• ABB Control Units / DSP (Digital Signal Processor) Boards: These higher-level controllers generate the precise gate signals (pulses) that drive the 5SHX1960L0006 module, ensuring synchronized and optimized switching.
• Heat Sinks and Cooling Systems: Given the high power dissipation, these modules are always mounted on robust heat sinks, often utilizing liquid cooling or forced-air cooling systems for thermal management.
• DC Link Capacitors and AC/DC Inductors: Essential passive components that work with the IGCTs to form the complete power converter topology (e.g., voltage source inverters, rectifiers).
• Protection and Monitoring Relays: For overall system protection, including overcurrent, overvoltage, and thermal monitoring.
• Voltage and Current Sensors: To provide feedback to the control system for closed-loop control of the power conversion process.
• Control Cabinets/Enclosures: To house and protect the entire power converter system.

Installation, Maintenance, and Full-Cycle Support:

The installation of the ABB 5SHX1960L0006 3BHB016120R0002 IGCT Module is a highly specialized task requiring expertise in high-power electronics and adherence to stringent safety protocols. It involves:

• Mechanical Mounting:Securely fastening the module onto a dedicated high-performance heat sink, ensuring optimal thermal contact. The proper mounting force is critical for electrical and thermal performance, as mentioned in some search results.
• Electrical Connections:Making robust, low-inductance connections for the main power terminals, as well as precise wiring for the control signals from the higher-level gate drive controller.
• Cooling System Integration:Connecting the module to the appropriate liquid or air cooling system.

Commissioning involves configuring the gate unit parameters and integrating it with the overall drive or converter control system. This ensures the correct switching patterns, protection thresholds, and performance optimization for the specific application.

Routine maintenance for the IGCT module itself is minimal due to its robust, solid-state design. However, maintenance focuses on ensuring the health of the surrounding system:

• Cooling System Performance:Regular checks of the fans, pumps, coolant levels, and filter cleanliness to prevent overheating, which is the primary cause of failure for power semiconductors.
• Connection Integrity:Periodic inspections of power and control connections for tightness, signs of corrosion, or discoloration (indicating overheating).
• Diagnostic Monitoring:Utilizing the diagnostic capabilities of the associated drive or control system to monitor the module’s operating parameters, temperatures, and any fault flags.

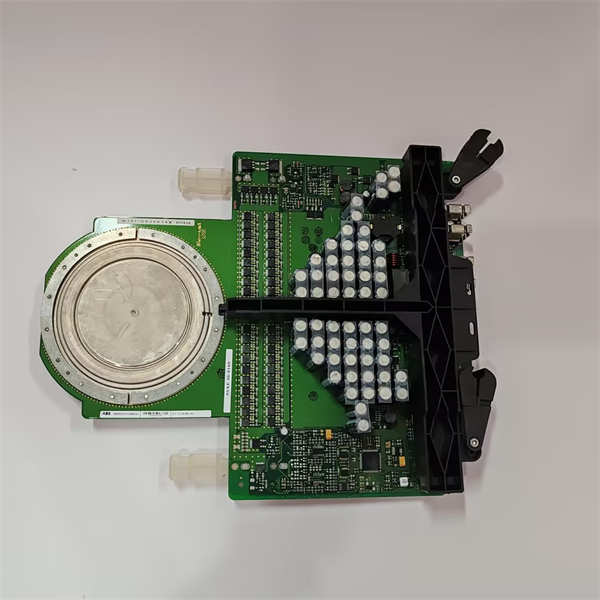

  ABB-5SHX1960L0006 3BHB016120R0002

ABB provides comprehensive full-cycle support for its power electronics components:

• Extensive Documentation:Detailed technical manuals, application notes, and design guidelines for integrating and operating IGCTs.
• Software Tools:For configuring, monitoring, and diagnosing the power converters and drives in which these modules are used.
• Global Technical Support:Access to ABB’s highly specialized power electronics engineers for expert troubleshooting and technical assistance.
• Training Programs:Specialized courses for customers on the design, operation, and maintenance of high-power converters utilizing IGCT technology.
• Spare Parts and Repair Services:Ensuring long-term availability of genuine components and expert repair services to maximize the operational lifespan and reliability of critical power equipment.
