Description

The ABB PP886 3BSE092980R1 is a specific model of Human-Machine Interface (HMI) panel from ABB’s Panel 800 series. It’s designed for industrial automation applications, providing operators with a graphical interface to monitor and control industrial processes.

ABB PP886 3BSE092980R1

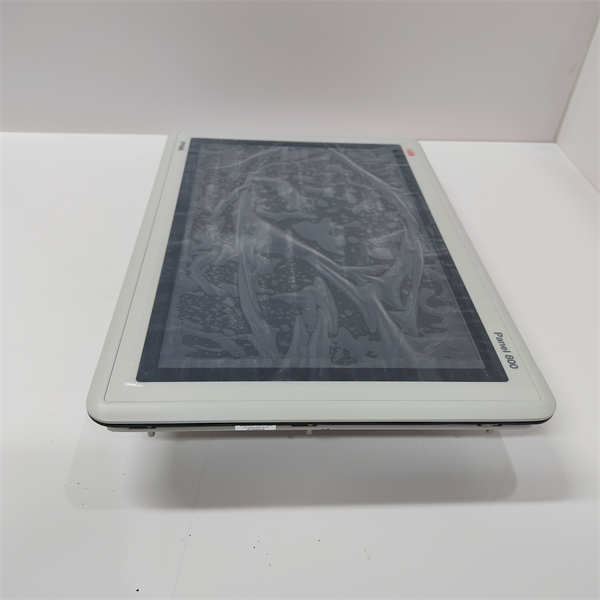

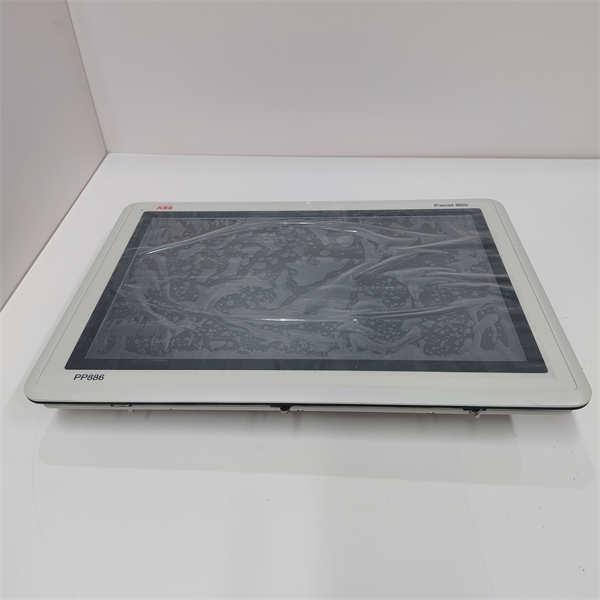

Product Description: ABB PP886 3BSE092980R1 (Panel 800 Standard Panel 15.4″)

The ABB PP886 3BSE092980R1 is a 15.4-inch touchscreen operator panel, part of ABB’s comprehensive Panel 800 range. It serves as a crucial interface between human operators and the underlying control systems (PLCs, DCS, etc.) in various industrial environments.

Key characteristics and features include:

• Display:It features a 4-inch TFT/LED touchscreen display with a high resolution of 1280 x 800 pixels (16:10 aspect ratio). The display offers brilliant colors and a brightness of 450 cd/m², ensuring clear visibility even in well-lit industrial settings.
• User-Friendly HMI:Designed for ease of use, it comes with comprehensive and integrated templates and libraries. The Panel Builder tool, running in a familiar Microsoft Windows environment, supports multiple languages, enabling fast, easy, and efficient engineering of HMI applications.
• Robust and Reliable Construction:The panel is housed in a rugged yet lightweight die-cast, powder-coated aluminum enclosure. The front casing is rated IP65, NEMA 4X/12, and UL Type 4X/12, meaning it’s protected against dust, water jets, and harsh environments. It’s designed to operate in a wide temperature range of -10 °C to +60 °C and with high humidity (up to 85% non-condensing).
• Powerful Processing:Equipped with an ARM9 processor running at 1 GHz, it ensures smooth operation of complex HMI applications. It has 1 GB of main memory and 2 GB of SSD external storage (with 1.5 GB free for applications).
• Extensive Connectivity:The PP886 offers multiple communication options, including two Ethernet ports (10/100 Base-T), two USB 2.0 ports, and multiple serial ports (RS232, RS422/485). This multi-protocol connectivity allows it to communicate with various brands of controllers simultaneously.
• Open Platform:Built on open architecture and technologies (supporting the .NET framework), it allows for flexible integration and customization.

Application Scenarios:

The ABB PP886 is suitable for a wide range of industrial applications where clear visualization, intuitive operation, and robust performance are required.

Consider a large food and beverage processing plant that produces various products requiring precise temperature, pressure, and flow control across multiple lines. Operators need real-time data and the ability to adjust parameters quickly.

• Process Monitoring and Control:The PP886 would be installed on the control room or machine panels. Operators can use its touchscreen to visualize process flow diagrams, monitor critical parameters (e.g., tank levels, mixer speeds, oven temperatures), view real-time trends, and acknowledge alarms. They can directly interact with the system to start/stop pumps, open/close valves, or adjust setpoints.
• Batch Management:For batch processes, the HMI can display the current batch status, recipe details, and allow operators to initiate new batches or modify parameters within the recipe.
• Alarm Management and Event Logging:The panel provides a clear interface for displaying alarms, allowing operators to quickly identify issues and take corrective actions. It can also log historical events for later analysis, aiding in troubleshooting and process optimization.
• Machine Control:In discrete manufacturing, the PP886 can serve as the primary interface for controlling individual machines or work cells, displaying machine status, production counts, and allowing for manual control or mode selection.
• Remote Access and Data Acquisition:With its Ethernet connectivity, the PP886 can be integrated into a larger plant network, allowing for remote monitoring and data acquisition by supervisory systems (SCADA) or enterprise-level software.

By deploying the PP886, the plant improves operator efficiency, reduces response times to process deviations, enhances data visibility, and contributes to overall operational reliability and product quality.

ABB PP886 3BSE092980R1

Technical Principles and Innovative Values:

The ABB PP886 3BSE092980R1 HMI, as part of the Panel 800 series, incorporates several key technical principles and innovative values:

• Innovation Point 1: Robust Industrial Design and Environmental Hardening: A critical aspect of the PP886 is its industrial-grade construction. The rugged, powder-coated aluminum housing and the IP65/NEMA 4X/12 front rating ensure reliable operation in harsh industrial environments characterized by dust, moisture, extreme temperatures (-10°C to +60°C), and vibrations (1 G / 15 G). This robustness is not just about survival; it’s about maintaining consistent performance and display readability in conditions that would quickly disable standard consumer-grade touchscreens, thereby ensuring continuous process monitoring and control.
• Innovation Point 2: Enhanced Operator Experience through Advanced Graphics and Intuitive Interface: The PP886 provides a significant leap in operator interaction through its 15.4-inch high-resolution (1280×800) TFT/LED touchscreen. The use of vector-based graphics and an icon-based interface delivers crisp, clear visuals, improving situational awareness for operators. The Panel Builder engineering tool, with its familiar Windows-like environment, accelerates application development with rich libraries and templates. This focus on user experience minimizes operator training time, reduces human error, and allows for quicker and more informed decision-making, which directly impacts plant efficiency and safety.
• Innovation Point 3: Open and Multi-Protocol Connectivity for System Integration: A key innovative feature of the Panel 800 series, including the PP886, is its “truly open platform” architecture. It supports multi-protocol connectivity with an extensive driver library (over 60 drivers). This enables the PP886 to communicate simultaneously with various brands of PLCs and legacy ABB control systems (e.g., AC 800M, older Process Panels). This interoperability provides significant flexibility for system integrators and end-users, reducing vendor lock-in, simplifying upgrades of existing facilities, and allowing for a unified HMI experience across diverse automation hardware.

Application Cases and Industry Value:

A large automotive manufacturing plant was looking to modernize its paint shop, which involved complex robotic systems and strict environmental controls. The existing operator interfaces were outdated, difficult to use, and provided limited data visualization.

They decided to implement ABB’s Panel 800 series, including several ABB PP886 3BSE092980R1 HMIs, strategically placed throughout the paint shop.

• Centralized Process Visualization: Each PP886 HMI provided a detailed, graphical overview of a specific section of the paint process, showing real-time paint flow rates, oven temperatures, robot status, and ventilation system performance. This allowed operators to monitor multiple parameters at a glance and quickly identify any deviations.
• Streamlined Fault Diagnostics: When an alarm occurred (e.g., a robotic arm fault or a temperature excursion), the PP886 displayed clear alarm messages with contextual information, guiding operators to the exact location and nature of the problem. This reduced diagnostic time by 30%, leading to quicker resolution and less downtime.
• Improved Quality Control: Operators could use the touchscreen to adjust paint recipes, control spray parameters, and view historical quality data trends directly on the panel. This enabled more proactive adjustments, resulting in a 5% reduction in paint reworkand improved final product quality.
• Operator Efficiency and Training: The intuitive interface and familiar Windows-like engineering environment significantly reduced the learning curve for new operators and improved the efficiency of experienced staff.

The ABB PP886 proved instrumental in enhancing the paint shop’s automation, leading to improved operational efficiency, higher product quality, and reduced maintenance efforts.

Related Product Combination Solutions:

The ABB PP886 3BSE092980R1 HMI is designed to integrate seamlessly with various industrial automation components:

• ABB AC 800M Controllers (e.g., PM8xx series): These are often the primary PLCs/DCS controllers that the PP886 communicates with to exchange process data and control commands.
• ABB AC500 Series PLCs: Another range of ABB Programmable Logic Controllers that can be interfaced with the PP886.
• Other PLC Brands: Due to its multi-protocol support, the PP886 can connect to PLCs from various manufacturers (e.g., Siemens, Rockwell, Mitsubishi).
• ABB I/O Modules (e.g., S800 I/O): The digital and analog input/output modules connected to the controllers, providing field data to be displayed on the HMI.
• Panel Builder Software: The engineering tool (a PC-based application) used to design, configure, and program the HMI application that runs on the PP886.
• Industrial Ethernet Switches: To facilitate network communication between the HMI, controllers, and other networked devices.
• Power Supplies: A reliable 24 VDC industrial power supply is required to power the HMI panel.
• SCADA Systems / Historians: For larger-scale supervision and data archiving, the PP886 can act as a local operator station, feeding data to a central SCADA or historian system.

Installation, Maintenance, and Full-Cycle Support:

Installation of the ABB PP886 3BSE092980R1 involves panel mounting, where it is securely fitted into a pre-cut opening in a control cabinet or console. Electrical connections include the 24 VDC power supply and Ethernet/serial communication cables to the controllers. Commissioning is performed using the ABB Panel Builder software on a PC. This software allows engineers to download the HMI application, configure communication drivers, set up alarm limits, and calibrate the touchscreen. The “simulate and run” feature in Panel Builder enables testing the application directly on the PC before deployment, speeding up commissioning.

Routine maintenance for the PP886 is typically low due to its rugged design and lack of moving parts. It primarily involves:

• Cleaning:Regularly cleaning the touchscreen surface with appropriate, non-abrasive cleaners to maintain visibility and touch responsiveness.
• Firmware Updates:Applying periodic firmware updates from ABB to ensure optimal performance, security, and compatibility with new features or controllers.
• Backup:Regularly backing up the HMI application and configuration files to prevent data loss.
• Environmental Checks:Ensuring the control cabinet’s internal temperature and humidity remain within the specified operating ranges.

ABB provides comprehensive full-cycle support for its Panel 800 series:

• Extensive Documentation:Detailed installation, programming, and troubleshooting manuals.
• Software Tools:Access to the Panel Builder software and any necessary updates.
• Technical Support:Global network of ABB technical support engineers for troubleshooting and expert assistance.
• Training:Courses for engineers and technicians on HMI application development and system integration.
• Spare Parts & Repair Services:Ensuring long-term availability of replacement units and repair services, which is crucial for maintaining operational continuity in industrial settings.
