Description

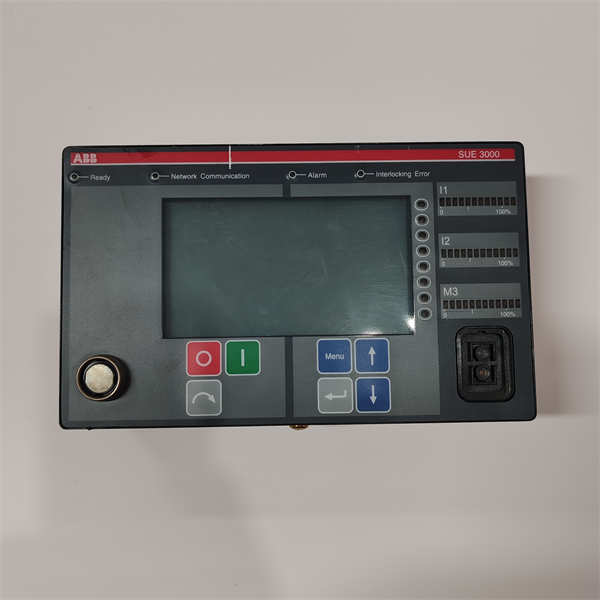

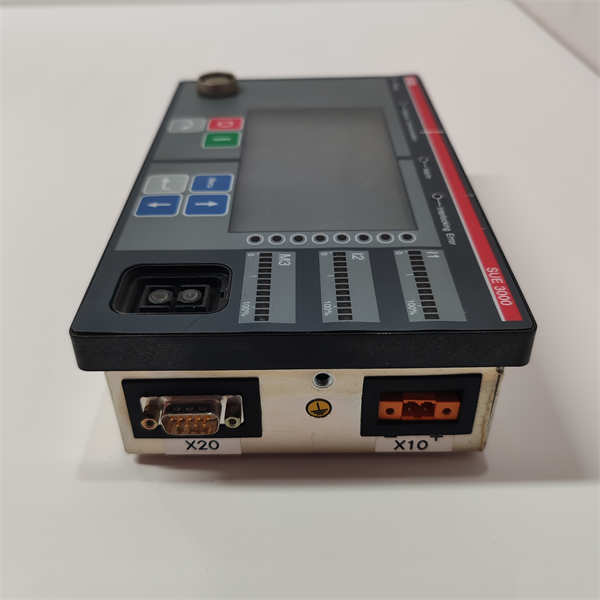

The ABB SUE3000 1VCF750090R0804 is a high-performance Human Machine Interface (HMI) touch panel, serving as a vital component in industrial automation and motion control systems. As part of ABB’s advanced SUE3000 series, this specific model is meticulously engineered for seamless integration with Programmable Logic Controller (PLC) systems, particularly those associated with ABB’s Guard PLC controllers, or as a critical component of a High Speed Transfer System (HSTS). The ABB SUE3000 1VCF750090R0804 provides an intuitive and robust interface for operators to monitor, control, and optimize complex industrial processes with high precision.

Functioning as the primary window into the industrial control environment, the ABB SUE3000 1VCF750090R0804 combines a user-friendly touch screen with versatile communication capabilities. It enables real-time visualization of process data, alarm management, historical trending, and direct interaction with manufacturing and process control settings. This HMI’s technical positioning is to enhance operational efficiency, reduce human error, and provide immediate feedback for critical process adjustments. Its expandable architecture and multiple communication interfaces ensure that the ABB SUE3000 1VCF750090R0804 can adapt to various industrial applications and integrate effortlessly into both new and existing automation infrastructures.

The value proposition of the ABB SUE3000 1VCF750090R0804 extends beyond mere display; it significantly contributes to increased plant availability, reduced costly production outages, and optimized resource utilization. By providing operators with clear, concise, and actionable information, it empowers quicker decision-making and more effective response to process deviations. Its robust design ensures reliable performance in harsh industrial environments, making the ABB SUE3000 1VCF750090R0804 an indispensable tool for achieving higher levels of automation, efficiency, and safety across diverse industrial sectors.

ABB SUE3000 1VCF750090R0804

Technical Specifications

Main Features and Advantages

The ABB SUE3000 1VCF750090R0804 represents a cutting-edge solution in industrial human-machine interaction, delivering a suite of features that significantly enhance operational efficiency, safety, and system resilience. Its robust design and sophisticated capabilities make it a formidable asset in modern automation environments.

Intuitive User Experience: At its core, the ABB SUE3000 1VCF750090R0804 provides a highly intuitive touch screen interface. This user-friendly design simplifies complex process monitoring and control, allowing operators to quickly access real-time data, manage alarms, and adjust parameters with minimal training. The clarity and responsiveness of the touch panel reduce cognitive load, leading to fewer operational errors and improved overall control.

Versatile Communication Options: The ABB SUE3000 1VCF750090R0804 boasts extensive communication capabilities, including Ethernet (supporting UDP and Modbus TCP) and serial interfaces (RS422 with Modbus RTU). This broad range of supported protocols, including IEC 61850-8-1 MMS, IEC 60870-5-103, Profibus DP, and ABB SPA, ensures seamless integration with a wide variety of PLCs, DCS, and other industrial control systems, making it highly adaptable to diverse industrial networks and existing infrastructure.

High Precision and Control Capability: Engineered for high-precision control, the ABB SUE3000 1VCF750090R0804 ensures stable and accurate automation processes. When integrated into systems like a High Speed Transfer System (HSTS), its ability to reflect and respond to control signals with accuracy is critical for maintaining power supply continuity and protecting essential processes from costly outages. This level of precision is paramount for complex or sensitive operations where slight deviations can have significant consequences.

Scalability and Adaptability: The design of the ABB SUE3000 1VCF750090R0804 emphasizes scalability, allowing it to support expansion and upgrades as industrial needs evolve. Its compact and lightweight form factor (330 x 280 x 120 mm, 1.25 kg) makes it suitable for diverse automation environments, including both new installations and retrofits where space might be a constraint. This adaptability ensures a future-proof investment for operations looking to grow or modernize.

Integrated Diagnostics and Reliability: The ABB SUE3000 1VCF750090R0804 often includes integrated diagnostic features and watchdog self-monitoring, contributing to enhanced system reliability. For applications within a High Speed Transfer System, features like permanent supervision of involved incomers, busbars, and circuit breakers ensure the continuous safeguarding of energy supply. This built-in intelligence aids in rapid fault detection and resolution, minimizing downtime and optimizing overall plant availability.

Application Field

The ABB SUE3000 1VCF750090R0804 Human Machine Interface is ideally suited for a wide array of demanding industrial environments where intuitive operation, high reliability, and efficient process monitoring are paramount. Its robust design and versatile communication capabilities make it indispensable across multiple sectors.

In Power Generation and Distribution, the ABB SUE3000 1VCF750090R0804 is a critical component, particularly within High Speed Transfer Systems (HSTS). It enables the rapid and seamless transfer of power from a main incomer to a standby source in milliseconds, ensuring uninterrupted power supply to essential processes and preventing costly outages for critical loads such as pumps, fans, and automation systems within power plants or substations. Its ability to display real-time grid status, breaker positions, and power flow information allows operators to make rapid, informed decisions during electrical disturbances.

Within Manufacturing and Process Industries such as chemical, petrochemical, and pulp & paper, the ABB SUE3000 1VCF750090R0804 serves as the primary operator interface for controlling complex production lines and batch processes. It provides a visual representation of the plant, allowing operators to monitor critical parameters like temperature, pressure, flow rates, and machine status. Its touch interface facilitates quick adjustments to recipes, start/stop sequences, and alarm acknowledgements, leading to optimized throughput, improved product quality, and enhanced operational safety. For example, in an automated bottling plant, the ABB SUE3000 1VCF750090R0804 can display bottle fill levels, capping machine speed, and conveyor belt status, enabling operators to maintain high efficiency.

In Infrastructure and Building Automation, the ABB SUE3000 1VCF750090R0804 can be deployed in large facilities for comprehensive HVAC control, lighting management, and security system monitoring. Its centralized control capabilities allow facility managers to optimize energy consumption, enhance occupant comfort, and respond swiftly to security events. The ability to integrate with various communication protocols ensures that the ABB SUE3000 1VCF750090R0804 can act as a unified interface for disparate building systems, providing a holistic view and control point for complex facilities, ensuring efficient and safe operations.

ABB SUE3000 1VCF750090R0804

Related Products

The ABB SUE3000 1VCF750090R0804 HMI touch panel is typically part of larger ABB control solutions, interacting closely with various other components to form a complete system. Here are some related products that complement its functionality:

ABB Guard PLC Controllers: The SUE3000 1VCF750090R0804 is designed for seamless integration with ABB’s Guard PLC controllers, serving as the primary visualization and control interface for the logic executed by these safety and process controllers.

ABB REF 542plus Feeder Protection Relays: When used in a High Speed Transfer System (HSTS) context, these relays act as initiation units, detecting faults and sending signals to the SUE 3000 system, including the SUE3000 1VCF750090R0804, to trigger rapid transfers.

ABB VM1-T High Speed Vacuum Circuit Breakers: These breakers are integral to the HSTS, enabling the rapid switching action (as fast as 30 ms) orchestrated by the SUE 3000 system, ensuring continuous power supply. The SUE3000 1VCF750090R0804 would display their status.

ABB REF615/630/670 Series Relion Protection and Control Relays: These intelligent electronic devices (IEDs) provide advanced protection, control, and monitoring functions for various power system elements, and their data can be visualized and managed via the SUE3000 1VCF750090R0804 through supported communication protocols like IEC 61850.

ABB AC 800M Controllers: As a higher-level Distributed Control System (DCS) controller, the AC 800M can integrate data from various field devices and protection relays, and the SUE3000 1VCF750090R0804 can serve as a local operator panel or gateway for specific control functions within this larger architecture.

ABB PLC Communication Modules (e.g., Modbus, Profibus, Ethernet): These modules are essential for connecting the SUE3000 1VCF750090R0804 to the underlying PLC or DCS, facilitating the exchange of real-time data and control commands.

ABB Sensors and Transducers: Various current and voltage sensors/transformers provide the raw electrical data (e.g., voltage levels, current measurements) that the SUE3000 1VCF750090R0804 processes and displays to operators, enabling precise monitoring of the electrical system.

Installation and Maintenance

Pre-installation preparation: Before installing the ABB SUE3000 1VCF750090R0804 HMI touch panel, thorough preparation is essential to ensure its optimal performance and longevity. Verify that the intended installation location within the control cabinet provides adequate ventilation and adheres to environmental specifications, including temperature (0°C to +70°C) and humidity (5-95% non-condensing) limits. Ensure the mounting surface is clean, dry, and free from excessive vibration or electromagnetic interference. All power sources to the cabinet must be de-energized and properly locked out following established safety protocols. Have necessary tools on hand, including screwdrivers for mounting, crimping tools for wiring, and a multimeter for electrical checks. Carefully unpack the ABB SUE3000 1VCF750090R0804, inspecting for any shipping damage, and ensure all required accessories and documentation are present before beginning the physical installation and wiring processes.

Maintenance recommendations: The ABB SUE3000 1VCF750090R0804 is designed for robust operation and requires minimal routine maintenance. Periodically, inspect the touch screen surface for cleanliness and clear any dust or smudges with a soft, lint-free cloth and a mild, non-abrasive cleaning solution to maintain visibility and touch sensitivity. Verify all power and communication cable connections are secure and free from corrosion or physical damage. Monitor the operational status indicators on the ABB SUE3000 1VCF750090R0804 and within the connected PLC/DCS system for any diagnostic alerts or abnormal behavior. If a fault is detected, consult the system documentation for specific troubleshooting steps. For firmware updates or more complex issues, always refer to ABB’s official technical support guidelines. Regular backups of configuration files are highly recommended to facilitate swift recovery in case of unexpected events, ensuring the continuous efficiency of the ABB SUE3000 1VCF750090R0804 in your automation setup.

Product Guarantee

ABB, a globally recognized leader in industrial technology, stands firmly behind the superior quality and performance of the ABB SUE3000 1VCF750090R0804 HMI touch panel with a comprehensive product guarantee. Each ABB SUE3000 1VCF750090R0804 unit undergoes stringent manufacturing processes and rigorous quality control testing to ensure its reliability, durability, and adherence to the highest industrial standards. This commitment is reflected in our standard warranty, which protects against defects in materials and workmanship under normal operating conditions. Our guarantee underscores ABB’s unwavering confidence in the ABB SUE3000 1VCF750090R0804 to deliver consistent, high-precision performance in even the most demanding industrial environments. Beyond the warranty period, customers benefit from ABB’s extensive global service network, offering accessible technical support, comprehensive documentation, spare parts availability, and specialized maintenance services. Our dedicated team of experts is committed to providing prompt, professional assistance throughout the entire lifecycle of your ABB SUE3000 1VCF750090R0804, ensuring optimal operational continuity, maximizing system uptime, and protecting your valuable automation investments.
