Description

The MTL 8502-B1-DP is a Bus Interface Module (BIM), specifically designed by MTL (now part of Eaton) to serve as a crucial communication link within the MTL8000 series I/O system. This module facilitates high-speed data exchange between the intrinsically safe MTL8000 I/O modules and a Profibus-DP host system, providing seamless integration for process control in hazardous and industrial environments.

It acts as a slave to the Profibus master, gathering and presenting I/O data, while also offering advanced diagnostic capabilities for system health monitoring.

Application Scenarios:

Consider a large-scale offshore oil and gas platform, where safety and operational continuity are paramount due to the volatile nature of the materials processed. In such a demanding and potentially explosive atmosphere, traditional control systems pose significant safety risks. Here, the MTL8000 series, with the MTL 8502-B1-DP as its backbone, becomes indispensable. It allows intrinsically safe field instruments (sensors, actuators) located in hazardous areas to communicate securely with the main Profibus-DP control system in a safe area. For example, the MTL 8502-B1-DP would enable real-time monitoring of gas detectors, pressure sensors, and emergency shutdown valves. It addresses the critical pain point of ensuring reliable, high-speed data communication from hazardous zones to the main control system while adhering to stringent safety standards (e.g., ATEX, IECEx for intrinsic safety). This seamless and secure data flow ensures that operators can react immediately to critical events, preventing accidents and maintaining production in an inherently dangerous environment.

Parameter:

Technical Principles and Innovative Values:

• High-Speed Profibus-DP Connectivity:The MTL 8502-B1-DP‘s core technical principle lies in its optimized firmware and hardware for high-speed Profibus-DP communication. Operating at up to 6 Mbaud, it ensures that process data from numerous I/O points is acquired and transmitted to the Profibus master with minimal latency. This rapid data exchange is critical for real-time control loops and emergency shutdown systems, where delayed information could lead to significant operational or safety issues. This speed is a clear advantage over slower, less specialized bus interface modules.

• Seamless Integration with MTL8000 I/O:The MTL 8502-B1-DP is designed as the dedicated communication interface for the modular MTL8000 series I/O. This tight integration ensures compatibility and optimal performance, simplifying system design and reducing potential configuration errors. Unlike generic bus couplers, the MTL 8502-B1-DP inherently understands the data structure and diagnostic capabilities of MTL8000 modules, offering a truly plug-and-play experience.

• Comprehensive HART Pass-Through Capabilities:A key innovation is its ability to provide transparent pass-through messaging to HART-enabled field devices connected to the MTL8000 I/O modules. This allows users to access rich HART diagnostic and configuration data directly from the Profibus-DP host or via a local configuration port. This functionality significantly enhances predictive maintenance capabilities, allowing for remote asset management and reducing the need for costly field visits compared to systems without integrated HART support.

• Advanced Extended Diagnostics:The MTL 8502-B1-DP supports Profibus Extended Diagnostics, going beyond standard bus status information to provide detailed insights into the health of the BIM itself, the connected I/O modules, and even individual I/O channels. This granular diagnostic capability enables rapid fault identification, such as open circuits or line faults, and differentiates it from basic bus interfaces that only report general communication errors. This proactive fault reporting minimizes downtime and improves operational efficiency.

• Robust Configuration Management:The module supports parameterization from the Profibus master using GSD files, allowing for centralized configuration of I/O modules on a “per module” basis. Additionally, it offers an alternative configuration method via the 8455-SW-CF software, enabling channel-specific configuration and storage in non-volatile memory, with recovery options via the 8510-MO-NS Node Services Module. This dual-method approach provides flexibility and resilience in managing system configurations.

•

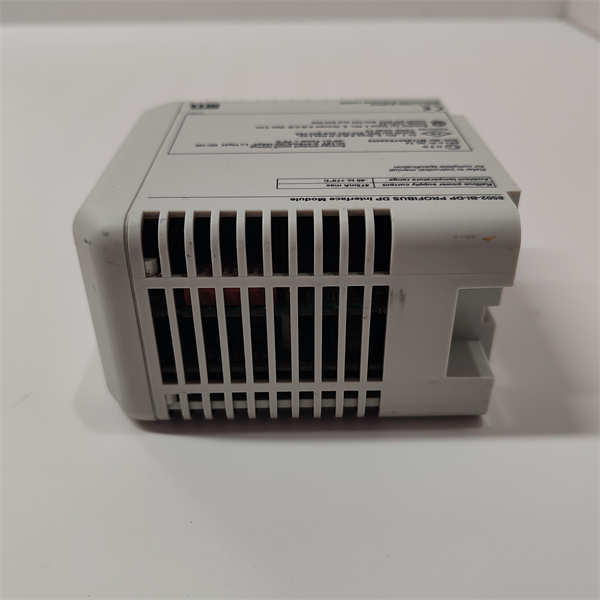

  MTL 8502-B1-DP

Application Cases and Industry Value:

In a large chemical plant processing flammable liquids, ensuring intrinsic safety for instrumentation located in Zone 1 hazardous areas was a primary concern. The plant was upgrading its distributed control system to a modern Profibus-DP based architecture. They opted for the MTL8000 I/O system, with the MTL 8502-B1-DP bus interface modules chosen for their certified intrinsic safety capabilities and seamless Profibus-DP integration.

The MTL 8502-B1-DP modules were installed in safe area control cabinets, connecting to various intrinsically safe analog and digital input/output modules that interfaced with temperature, pressure, and level transmitters, as well as control valves and emergency shutdown solenoids within the hazardous zones. The high-speed 6 Mbaud communication link provided by the MTL 8502-B1-DP ensured that critical process data, including alarm conditions and safety interlock statuses, was transmitted to the Profibus master with sub-50ms latency. The integrated HART pass-through feature proved invaluable during commissioning and ongoing maintenance; engineers could remotely diagnose issues with smart transmitters and adjust their parameters without requiring hot work permits or physically entering the hazardous area. User feedback indicated a significant improvement in diagnostic clarity and a reduction in maintenance hours by 30% due to remote troubleshooting capabilities. The implementation of the MTL 8502-B1-DP directly contributed to enhancing production safety, minimizing the risk of hazardous events, and achieving substantial cost savings by streamlining maintenance operations and reducing the need for specialized personnel in dangerous areas.
