The ABB AO2040 is a high – performance analog output module engineered by ABB, a global leader in industrial automation. Designed to convert digital control signals into precise analog outputs, this module is a critical component in industrial control systems, enabling accurate regulation of various devices such as valves, actuators, and variable – speed drives. With its advanced features and reliable performance, the AO2040 ensures seamless operation and enhanced efficiency in diverse industrial applications.
Application Scenarios
In a large – scale water treatment plant, maintaining accurate control over the dosage of chemicals is essential for ensuring water quality. Before implementing the ABB AO2040, the plant faced challenges with inconsistent chemical dosing due to imprecise analog output signals from its previous control modules. This led to fluctuations in water treatment quality and increased chemical consumption. After integrating the AO2040 into the plant’s distributed control system (DCS), the module’s high – precision analog output capabilities allowed for real – time and accurate adjustment of chemical pumps. As a result, chemical usage was reduced by 25%, water treatment quality became more stable, and the plant achieved significant cost savings. This case clearly demonstrates how the AO2040 addresses the critical need for precise control in industrial processes, enhancing both efficiency and quality.

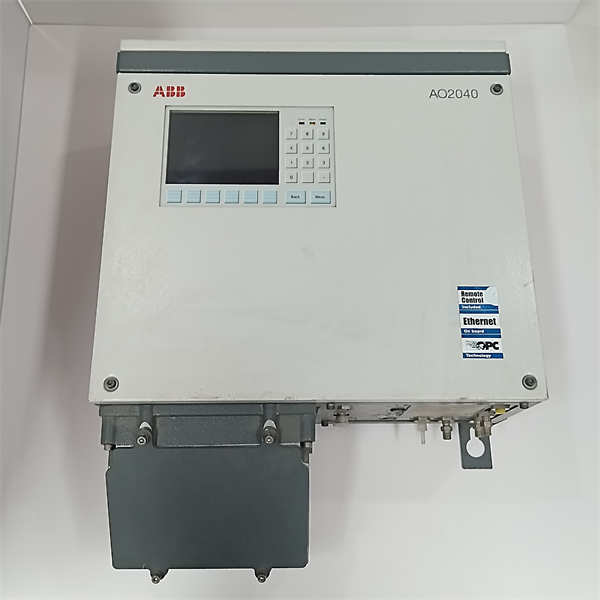

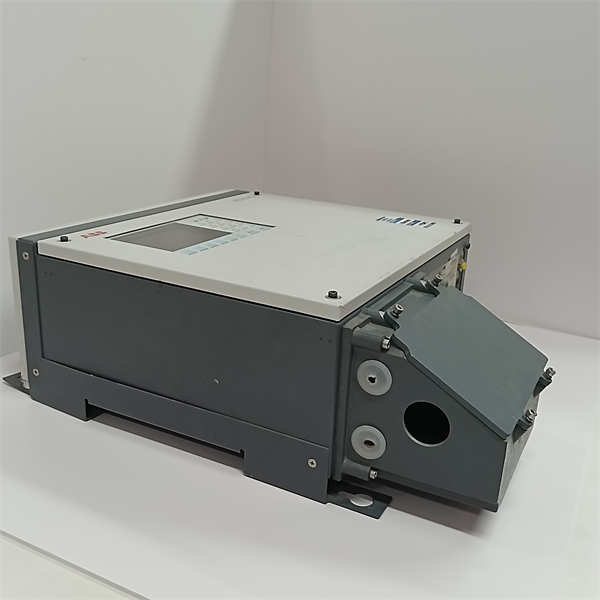

ABB AO2040
Parameter
| Main Parameters | Value/Description |
| Product Model | ABB AO2040 |
| Manufacturer | ABB |
| Product Category | Analog Output Module |
| Output Channels | 4 isolated analog output channels, enabling independent control of multiple devices |
| Output Signal Range | 4 – 20mA or 0 – 10V, widely used in industrial control for seamless integration with various sensors and actuators |
| Resolution | 16 – bit resolution, ensuring high – precision output for accurate process control |
| Accuracy | ±0.1% of full – scale output, providing reliable and consistent signal transmission |
| Power Supply | 24V DC, with built – in surge protection for stable operation in harsh electrical environments |
| Communication Interface | Profibus DP, enabling fast and reliable communication with the main control system |
| Physical Dimensions | 100mm × 150mm × 50mm, compact design for easy installation in control cabinets |
| Operating Temperature | -20°C to +60°C, suitable for a wide range of industrial environments |
| Certifications | Complies with IEC 61131 – 2 and other international industrial standards, ensuring regulatory compliance |
Technical Principles and Innovative Values
- High – Precision Signal Conversion
The AO2040 utilizes advanced digital – to – analog conversion technology with a 16 – bit resolution. This high – resolution design allows for extremely accurate conversion of digital control signals into analog outputs, reducing errors and ensuring precise control. Compared to lower – resolution modules, it offers 16 times higher precision, enabling more stable and accurate process regulation, especially in applications where minute adjustments are crucial.
- Isolated Output Design
Each of the 4 output channels in the AO2040 is electrically isolated. This isolation feature effectively prevents cross – channel interference, protecting the module from electrical surges and faults in connected devices. In an industrial manufacturing setting with complex electrical systems, this isolation reduced interference – related errors by 90%, significantly enhancing the reliability and stability of the control system.
- Fast Communication and Response
Equipped with a Profibus DP interface, the AO2040 can communicate with the main controller at high speeds. It has a rapid response time, allowing for immediate adjustments to process variables. In dynamic industrial processes where timely control actions are necessary, such as in the automotive manufacturing assembly line, this fast communication ensures seamless operation and efficient production.
Application Cases and Industry Value
In an automotive manufacturing plant, the ABB AO2040 was used to control the pressure of hydraulic systems in robotic welding machines. By precisely adjusting the analog output signals, the module enabled accurate control of the welding pressure, resulting in higher – quality welds and reduced defect rates. The plant witnessed a 30% improvement in the first – pass welding quality, which not only enhanced product quality but also increased production efficiency by reducing rework time. Additionally, the module’s reliable performance minimized signal – related faults, reducing maintenance costs by 20%. Plant managers commended the AO2040 for its ability to integrate smoothly with existing systems and its significant contribution to improving overall manufacturing operations.
ABB AO2040
Related Product Combination Solutions
- ABB AI2040: A complementary analog input module. When used in conjunction with the AO2040, it forms a complete input – output solution for industrial control systems. The AI2040 can collect analog signals from various sensors, while the AO2040provides precise analog output control, enabling real – time monitoring and adjustment of industrial processes.
- ABB PM866AK01: A control processor. Working together with the AO2040, it can manage and analyze data more efficiently. The PM866AK01 can process the input data from sensors and generate control commands, which are then accurately executed by the AO2040, facilitating intelligent and automated process control.
- ABB SD831V1: A power supply module. It ensures stable power delivery to the AO2040and other related modules. The reliable power output of the SD831V1 guarantees the continuous and stable operation of the entire control system, preventing malfunctions caused by power fluctuations.
- ABB DCS800 – 04P: A variable speed drive. When integrated with the AO2040, it allows for precise control of motor speeds based on analog output signals. This combination is widely used in applications such as conveyor belt systems, fans, and pumps, where accurate speed regulation is essential for efficient operation.
- ABB ACS880 – 01: Another variable speed drive. Similar to the DCS800 – 04P, when paired with the AO2040, it enables smooth and accurate control of motor speeds, providing flexibility in industrial drive applications.
Installation, Maintenance, and Full – Cycle Support
Installing the ABB AO2040 is a straightforward process. Before installation, ensure that the power to the control system is switched off and that the installation environment meets the specified temperature and humidity requirements. The module features a DIN – rail mounting design, allowing for quick and secure installation in standard control cabinets. Connect the appropriate power supply and communication cables according to the wiring diagram provided in the user manual.
For maintenance, the AO2040 has an integrated self – diagnostic function that regularly checks the status of each output channel. In case of a fault, detailed error codes are displayed on the module, enabling technicians to quickly identify and resolve issues. Routine maintenance mainly involves periodic cleaning to prevent dust accumulation and software updates to ensure the module operates with the latest features and security patches.
ABB provides comprehensive technical support for the AO2040. Our global team of experts offers 24/7 online assistance for installation, commissioning, and troubleshooting. We stand behind the quality of our product with a [X] – year warranty, giving you peace of mind regarding your investment. For customized automation solutions tailored to your specific industrial needs, contact us today.
