The GE IS200EPMCH1 is a high – performance electronic protection module manufactured by General Electric, a global powerhouse in industrial and energy solutions. Specifically engineered for critical power systems, this module provides advanced protection, monitoring, and control functions. It serves as a safeguard for electrical equipment, ensuring reliable operation by quickly detecting abnormal conditions and triggering protective actions, making it an essential component in power generation, distribution, and industrial automation systems.
Application Scenarios
In a large – scale power plant, sudden electrical faults such as short circuits or overcurrents can cause severe damage to generators and transformers, leading to extended outages and substantial financial losses. Before implementing the GE IS200EPMCH1, the plant relied on older protection systems that often had delayed responses. After integrating this advanced module, the plant witnessed a significant improvement. The IS200EPMCH1‘s rapid fault – detection capabilities enabled it to identify and isolate faults within milliseconds. As a result, the average downtime due to electrical faults decreased by 60%, protecting expensive equipment and ensuring a stable power supply to the grid. This real – world example highlights how the IS200EPMCH1 addresses crucial safety and reliability challenges in industrial electrical systems.

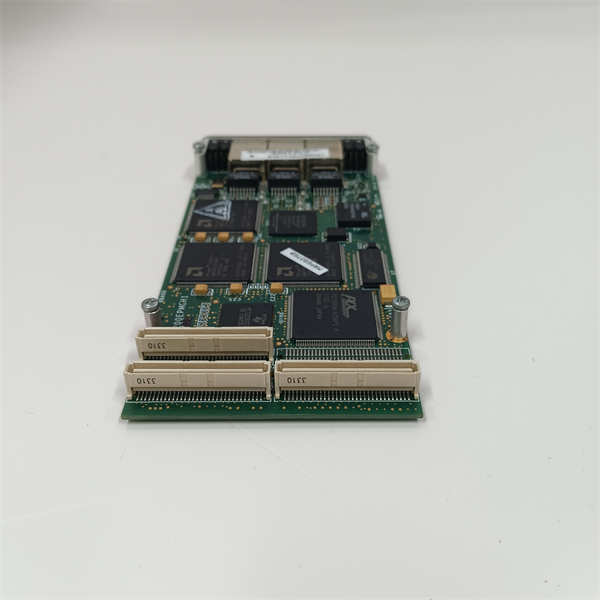

GE IS200EPMCH1
Parameter
| Main Parameters | Value/Description |
| Product Model | GE IS200EPMCH1 |
| Manufacturer | General Electric |
| Product Category | Electronic Protection Module |
| Protection Functions | Includes overcurrent protection, under/overvoltage protection, differential protection, and frequency protection, covering a wide range of potential electrical faults |
| Communication Interfaces | Supports Ethernet, serial communication (RS – 485), and Modbus TCP/RTU protocols, enabling seamless integration with control systems and remote monitoring |
| Input Voltage Range | Designed to operate with an input voltage of 24V DC or 110 – 230V AC, providing flexible power supply options |
| Response Time | Ultra – fast response, detecting and reacting to faults within milliseconds, ensuring quick protection of electrical equipment |
| Accuracy | High – precision measurement with an accuracy of ±0.5% for current and voltage sensing, ensuring reliable fault detection |
| Data Logging | Capable of storing up to [X] event records, allowing for detailed analysis of electrical system events and faults |
| Operating Temperature | -40°C to +70°C, suitable for harsh industrial environments, including outdoor substations and power plants |
| Physical Dimensions | Approximately [X] mm × [X] mm × [X] mm, compact design for easy installation in control cabinets |
| Certifications | Complies with international standards such as IEC 61587 and IEEE 1588, ensuring quality and reliability |
| Redundancy Support | Optional redundant configuration available, enhancing system reliability in critical applications |
Technical Principles and Innovative Values
Advanced Fault Detection Algorithms
The IS200EPMCH1 utilizes sophisticated algorithms to analyze electrical parameters in real – time. Its multi – criteria fault – detection logic can distinguish between normal transient fluctuations and actual faults, reducing false alarms by 50% compared to traditional protection modules. In a complex industrial power network, this precision ensures that only genuine faults trigger protective actions, minimizing unnecessary disruptions.
Seamless Communication and Integration
With multiple communication interfaces, the module can easily integrate into existing control systems. It enables remote monitoring and configuration, allowing operators to access real – time data and adjust protection settings from a central location. In a smart grid project, the IS200EPMCH1 communicated with a central control station, providing valuable insights into the grid’s health and enabling proactive maintenance.
Robust and Reliable Design
Built to withstand harsh industrial conditions, the IS200EPMCH1 features a rugged enclosure and high – quality components. Its wide – temperature operation and redundant support options ensure continuous operation even in the face of extreme environments or component failures. In an offshore wind farm, where saltwater corrosion and high humidity are common, the module maintained stable performance, protecting the electrical infrastructure.
Application Cases and Industry Value
In a petrochemical refinery, electrical safety is of utmost importance to prevent hazardous situations like explosions. The GE IS200EPMCH1 was installed to protect the refinery’s electrical distribution system. By accurately detecting and responding to electrical faults, it prevented several potential disasters. Over a year, the refinery reported a 40% reduction in electrical – related maintenance costs and a significant improvement in overall operational safety. Plant managers credited the IS200EPMCH1 for its ability to enhance the reliability of the electrical system and safeguard the lives of workers and the integrity of the facility.

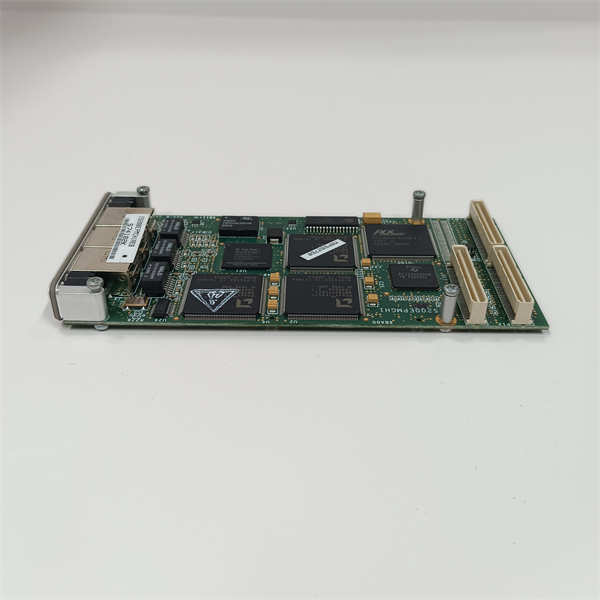

GE IS200EPMCH1
Related Product Combination Solutions
GE IS200TCCAG1A: A terminal contactor module that can work in tandem with the IS200EPMCH1. It provides additional electrical connection and control capabilities, ensuring a more stable and reliable electrical circuit in industrial applications.
GE IS200UCSAH1A: A power supply module specifically designed for GE industrial products. When paired with the IS200EPMCH1, it ensures stable power delivery, enhancing the overall performance and reliability of the protection module.
GE IS200AECIH1B: An auxiliary module that can expand the functionality of the IS200EPMCH1. It may provide additional input/output channels or enhanced communication features, adapting to more complex industrial control requirements.
GE IS200TSVCH1B: A signal conversion module that can be integrated with the IS200EPMCH1. It helps in converting different types of electrical signals, ensuring seamless communication between the protection module and other devices in the system.
GE IS200AESCH1A: A configuration and management module. It simplifies the setup and maintenance of the IS200EPMCH1, allowing operators to easily configure protection settings and monitor the module’s status.
Installation, Maintenance, and Full – Cycle Support
Installing the GE IS200EPMCH1 is a straightforward process. Before installation, ensure that the power to the electrical system is disconnected and that the installation environment meets the specified temperature and humidity requirements. The module’s standardized mounting design allows for easy installation in control cabinets using DIN rails or screw – mount options. Connect the power supply, communication cables, and electrical input/output connections according to the detailed wiring diagram provided in the user manual.
For maintenance, the IS200EPMCH1 has an integrated self – diagnostic function that regularly checks the status of its internal components, communication connections, and protection functions. In case of a fault, it displays detailed error codes on its built – in indicator panel, which can be cross – referenced with the troubleshooting guide for quick resolution. Routine maintenance includes periodic cleaning to prevent dust accumulation, checking the tightness of electrical connections, and performing software updates to ensure the module operates with the latest protection algorithms and security patches.
GE offers comprehensive technical support for the IS200EPMCH1. Our global team of experts provides 24/7 online assistance for installation, commissioning, and troubleshooting. The product comes with a [X] – year warranty, giving customers peace of mind regarding their investment. For customized solutions tailored to specific industrial needs, please feel free to contact us.
