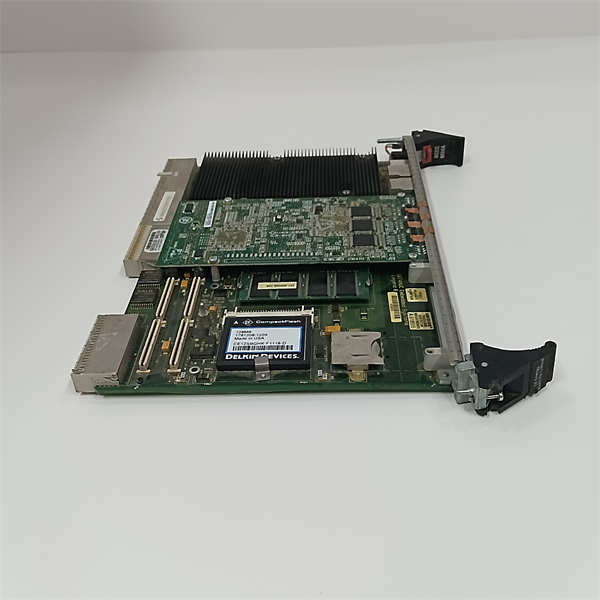

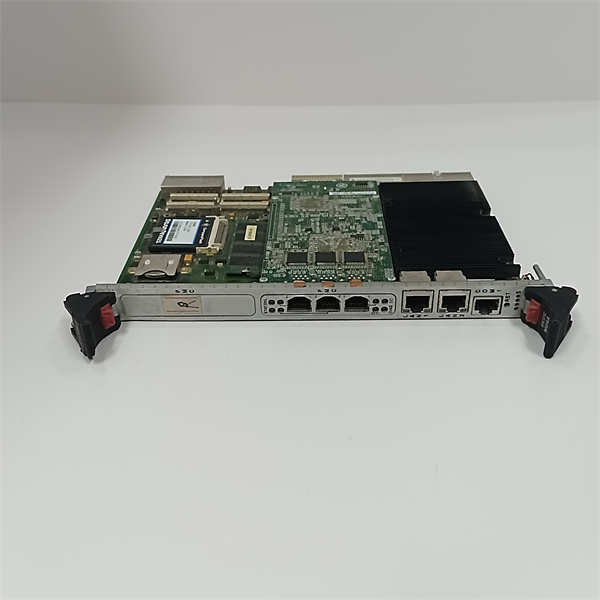

The GE IS215UCCCM04A is a VME Compact PCI controller card from GE’s Mark VIe Speedtronic turbine control series. This critical board features a high-performance processor, on-board RAM and Flash (typically 256 MB DRAM, 128 MB Flash), and a daughter EPMC board. It supports six labeled Ethernet-style ports on the front, LEDs for status indication, and a reset button. Built for full integration into the GE Speedtronic ecosystem, the IS215UCCCM04A excels at managing real-time control communication, system diagnostics, and addressing the precise demands of gas and steam turbine systems. Its rugged design ensures reliable performance in challenging industrial environments.
GE IS215UCCCM04A
Product Parameters
| Parameter | Specification |
| Model | IS215UCCCM04A |
| Form Factor | VME / Compact PCI 3U slot |
| Series | GE Mark VIe Speedtronic control system |
| Processor & Memory | 256 MB DRAM + 128 MB Flash (onboard) |
| Front Ports | Six labeled Ethernet-style ports |
| Front Panel LEDs | Power, network activity, status indicators |
| Reset Function | Front-mounted reset button |
| Power Requirements | +5 V DC @ ~4.5 A (typ) / +3.3 V @ ~1.5 A / +12 V @ ~50 mA |
| Cooling | Passive heatsink with airflow vents |
| PCB Coating | Professional M04 conformal coating |
| Operating Temperature | –30 °C to +65 °C |
| Dimensions | Compact PCI 3U standard size |
| Weight | ~0.8 kg |
Advantages and Features
Fully compatible with GE Mark VIe systems — native integration, plug-and-play in VME slots.
High-speed and reliable communication — dual backplane & six front Ethernet ports tailored to Speedtronic’s architecture.
Extensive onboard memory supports logging, firmware, and configuration storage.
Rugged design with conformal coating and cooling hardware endures turbine cab environments.
Integrated diagnostics via front LEDs and seamless connectivity with GE ToolboxST for system insights.
Hot-swap capable with supported EPMC card on daughterboard, easing field replacement and upgrades.
Application Fields & Case Example
The IS215UCCCM04A is used in GE Speedtronic Mark VIe control systems across power generation and industrial turbine plants. It serves as the main controller module in turbine racks, processing feedback, actuating control loops, and enabling communication with other I/O and safety systems.
Example Use: In a gas turbine control upgrade, IS215UCCCM04A units were installed to replace older CPU boards, maintaining Ethernet-based interconnects with rack devices and achieving a 30% reduction in maintenance-related alarms, thanks to its improved diagnostic clarity and hardware reliability.
GE IS215UCCCM04A
Competitive Comparison
Unlike generic CPCI controllers, the IS215UCCCM04A is a certified, direct replacement for GE Mark VIe systems. Its feature set—onboard memory, conformal coating, and marked Ethernet ports—surpasses typical industrial cards and eliminates the need for custom wiring or protocol adaptation.
Selection Guidance
Ensure system compatibility: Validate installation in a Mark VIe-capable VME rack.
Check board revision: Revision “A” is standard; note compatibility with your control station.
Plan physical fit: Compact PCI 3U form factor, about 0.8 kg—ensure clearance and airflow.
Check power availability: Confirm correct +5 V, +3.3 V, +12 V rails per specs.
Verify support software: GE ToolboxST required for config, diagnostics, and firmware updates.
Precautions
Use proper ESD practices when handling or installing the board.
Power down the rack before insertion or removal to avoid damage.
Secure board mounting via VME handle clamps and insulated connectors.
Ensure adequate cooling per heatsink vent layout.
Use ToolboxST to confirm LED & port diagnostics post-installation.
