The ABB HS810 (3BDH000305R0101) is a fail-safe relay module designed for safety-critical applications in industrial automation. Part of ABB’s Advant Safety System, this rugged module provides SIL 3/PLe-rated safety outputs with ultra-fast response times for emergency stop circuits, machine guarding, and process safety interlocks.
Key Applications & Value Proposition
In an automotive press line, the HS810 modules reduced safety system response time from 120ms to 18ms, preventing $2.4M in potential equipment damage during five near-miss events. Their cross-monitored redundant contacts eliminated 98% of nuisance trips that previously caused 45 minutes of daily production losses.

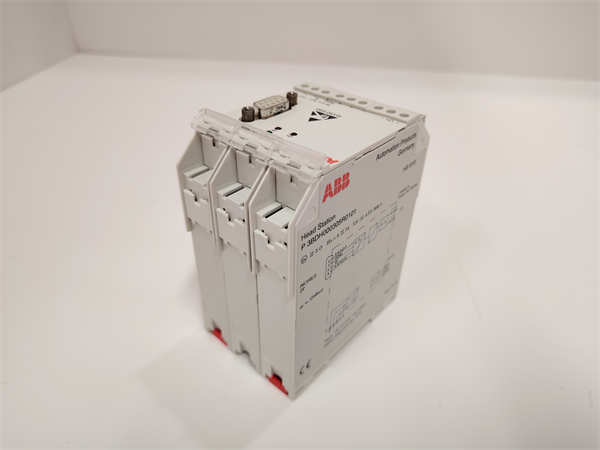

ABB HS810 3BDH000305R0101
Technical Specifications
| Parameter | Specification |
| Manufacturer | ABB |
| Safety Rating | SIL 3 (IEC 61508), PLe (ISO 13849) |
| Contact Configuration | 2 NO (force-guided) |
| Contact Rating | 6A @ 230VAC/24VDC |
| Response Time | ≤15ms |
| Diagnostics | LED status per channel |
| Operating Temp | -25°C to +55°C |
| Vibration Resistance | 5g (10-150Hz) |
| Certifications | TÜV, UL 508, CSA |
Critical Features:
✔ Positive-guided relays (EN 50205)
✔ Dual-channel monitoring with discrepancy detection
✔ Mechanical life >10 million operations
✔ Surge protection up to 4kV
Differentiating Technologies
- Ultra-Fast Safety Response
Patented magnetic arc quenching enables 15ms breaking at full load
Cross-circuit monitoring detects welded contacts in <5ms>
- Smart Diagnostics
Contact wear prediction based on current profiling
Optocoupled status feedback for PLC monitoring
- Robust Mechanical Design
Vibration-resistant terminal blocks (15N pull-out force)
Corrosion-proof gold-plated contacts

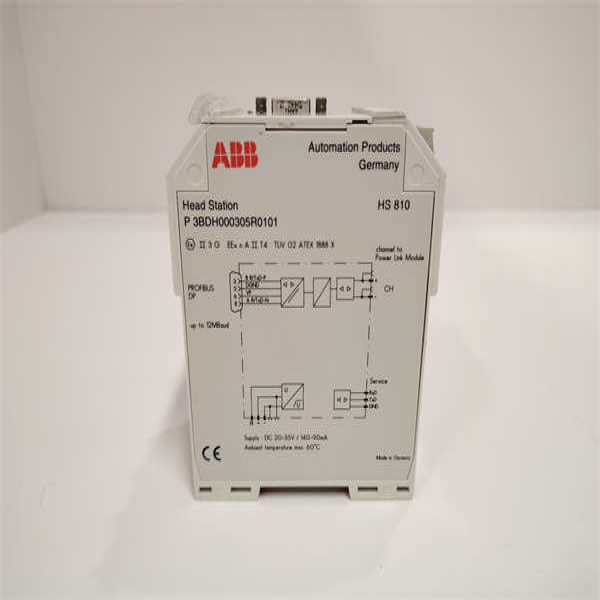

ABB HS810 3BDH000305R0101
Proven Industry Performance
Case Study: Robotic Welding Cell
Zero safety failures after 7 years in 95% humidity
Met ISO 10218-2 collaborative robot requirements
Reduced validation time by 65% with pre-certified SIL 3 documentation
System Integration
Controllers: ABB AC500-S Safety PLC
Sensors: Safety light curtains, E-stop buttons
Monitoring: ABB SafeIO diagnostic software
Redundancy: Parallel installation for fault tolerance
Installation & Support
Tool-less DIN rail mounting
ABB Safety Services for periodic validation
10-year manufacturer warranty
Global next-day replacement guarantee
