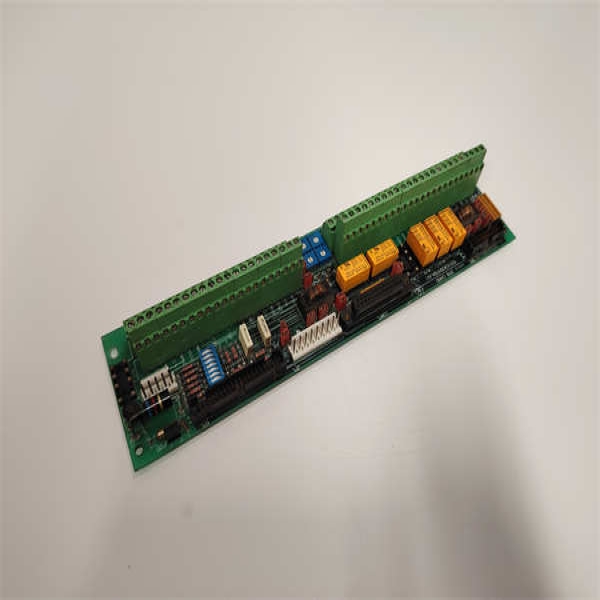

The GE 531X305NTBAJG1 is a critical Termination Board Assembly engineered for GE’s Speedtronic™ turbine control platforms, including Mark V, Mark VI, and Mark VIe systems. Serving as the nerve center for signal routing, this robust interface board conditions analog/digital signals between field devices (sensors, actuators) and the turbine’s primary control modules. Designed for extreme environments, the 531X305NTBAJG1 provides galvanic isolation and electromagnetic interference (EMI) filtering to protect sensitive control logic from power surges or signal noise common in power generation facilities.

Its HD-68 connectors establish fail-safe links to I/O packs and CPU modules, ensuring millisecond-level response times for critical turbine protection functions. The “JG1” hardware revision features upgraded conformal coating that withstands humidity, dust, and corrosive atmospheres in offshore platforms or desert installations. As a backbone of GE’s turbine control architecture, the 531X305NTBAJG1 enables precise monitoring of parameters like bearing vibration, exhaust temperature, and fuel valve positions – converting raw data into actionable intelligence for autonomous turbine operation.

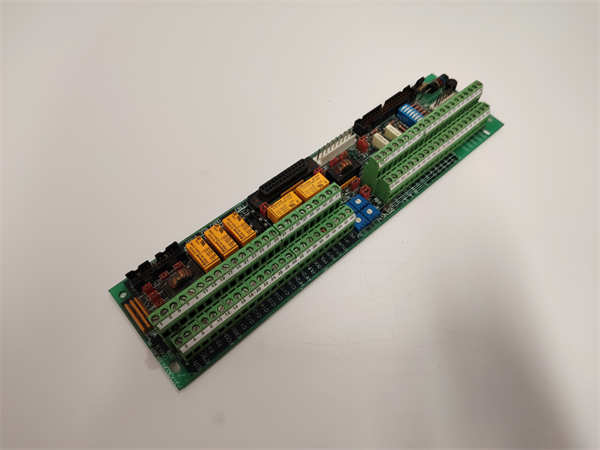

GE 531X305NTBAJG1

Core Advantages and Technical Highlights

Mission-Critical Signal Integrity: The 531X305NTBAJG1 incorporates transient voltage suppressors (TVS) and π-filters that dampen 5kV surges and 100:1 noise ratios. This prevents false trips during lightning strikes or grid disturbances, a key factor in Saudi Aramco’s turbine installations where unplanned shutdowns cost >$500k/hour.

Modular Serviceability: Field-replaceable terminal blocks allow swift repairs without full system downtime. In a Philippine geothermal plant, technicians replaced a damaged RTD channel on the 531X305NTBAJG1 in<15>

Legacy System Compatibility: Universally interfaces with GE Speedtronic generations from 1990s-era Mark V to modern Mark VIe. The board’s pin-compatible design eliminated control cabinet rewrites during Duke Energy’s Mark V→Mark VIe migration, saving $2.1M per site.

Extended Environmental Tolerance: JG1-specific silicone conformal coating resists salt spray (per ASTM B117) and H₂S exposure, enabling deployment in Algerian gas compressor stations with 98% humidity and 55°C ambient temperatures.

Lifecycle Optimization: Built with industrial-grade tantalum capacitors and gold-plated contacts rated for 100,000 insertion cycles. Reduces spare part inventories by 40% compared to older TBAs requiring frequent replacements.

Typical Application Scenarios

Combined-Cycle Power Plants: At Taiwan’s Talin Power Station, 72 units of the 531X305NTBAJG1 manage signals for GE 7FA.05 gas turbines. The boards’ EMI hardening prevented false vibration alarms during switchyard operations, achieving 99.92% turbine availability over 3 years.

Offshore Compression Platforms: On BP’s Clair Ridge platform, 531X305NTBAJG1 boards interface with turbine-mounted accelerometers and temperature probes. Conformal coating prevented sulfur-induced corrosion, extending mean time between failures (MTBF) to 12 years despite seawater exposure.

Hydroelectric Governor Control: In Canada’s Churchill Falls facility, the 531X305NTBAJG1 processes wicket gate position feedback for 11 hydro turbines. Signal conditioning eliminated ground loop errors that previously caused 3-5% load fluctuations during grid frequency events.

GE 531X305NTBAJG1

Related Model Recommendations

IS215ACLEH1A: Analog Control Processor – Directly interfaces with 531X305NTBAJG1 for turbine sequencing.

DS200TCEAG1ADC: Temperature Control Card – Sends thermocouple data to 531X305NTBAJG1 for conditioning.

IC698CPE040: RX7i Controller – Modern alternative for legacy systems using 531X305NTBAJG1.

IS200VPROH1B: Vibration Processor – Requires 531X305NTBAJG1 for signal pre-processing.

DS200DCFBG1BRD: I/O Communication Board – Links 531X305NTBAJG1 to Mark VIe controllers.

531X305NTBAKG1: Previous-gen TBA – 531X305NTBAJG1 offers superior EMI shielding.

Installation, Commissioning and Maintenance Instructions

Installation Preparation: Mount the 531X305NTBAJG1 vertically on DIN rail (EN 60715) using M4 shock-resistant bolts. Maintain 50mm clearance above board for heat dissipation. Before power-up, verify insulation resistance (>100MΩ at 500VDC) between field wiring and chassis ground. Critical Precaution: Disconnect turbine protection relays during installation to prevent accidental trips.

Maintenance Protocol: Quarterly infrared scans detect abnormal thermal patterns on terminal blocks. Annually clean HD-68 connectors with isopropyl alcohol and inspect for pin retraction. Replace entire board if >3 channels show signal drift >1%. For legacy Mark V systems, always pair the 531X305NTBAJG1 with compatible firmware (v4.05+). Store spares in anti-static bags with silica gel.
