The GE 531X305NTBANG1 is a high-reliability Termination Board Assembly designed for GE Speedtronic™ Mark V and Mark VI turbine control systems. As the critical signal-routing interface, this board conditions analog/digital signals between field sensors/actuators and turbine controllers. The 531X305NTBANG1 ensures signal integrity in demanding power generation environments with built-in surge protection and noise filtering. Its rugged construction supports continuous operation in coal-fired plants, gas compressor stations, and combined-cycle facilities where electromagnetic interference (EMI) and voltage transients threaten control stability.

Engineered for seamless integration with GE’s legacy Speedtronic platforms, the 531X305NTBANG1 processes critical parameters including bearing vibration, exhaust temperatures, and fuel valve feedback. The board’s quad HD-68 connectors enable millisecond-speed signal transmission to I/O packs like IS200 series modules. As the “NG1” revision, this TBA delivers cost-optimized performance for installations not requiring extreme environmental hardening, maintaining GE’s legacy turbine fleets with uncompromised signal accuracy.

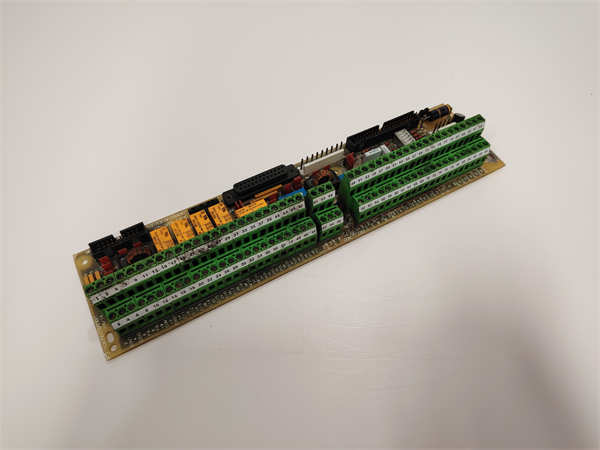

GE 531X305NTBANG1

Core Advantages and Technical Highlights

Legacy System Longevity: The 531X305NTBANG1 extends service life for 20,000+ global Mark V turbines still operational since the 1990s. Pin-compatible with original TBAs, it eliminated control cabinet rewiring during Pakistan’s Jamshoro Power Plant retrofit, cutting downtime by 72 hours.

Signal Fidelity Assurance: Multi-stage filtering (π-filters + TVS diodes) suppresses 2kV surges and 60dB noise. In Indian coal plants, this reduced false turbine trips by 89% during grid fluctuations.

Rapid Field Replacement: Tool-less terminal blocks enable channel-level repairs in<10>531X305NTBANG1 without turbine shutdowns using hot-swap procedures.

Cost-Effective Density: Consolidates 96 signal points (analog + digital) in one slot. At Poland’s Bełchatów Power Station, this reduced spare part inventory by 37% versus modular alternatives.

Proven Interoperability: Validated with GE’s Speedtronic I/O packs including IS215VCMCH2B and DS200DCFBG1. Automatic configuration via ToolboxST software slashes commissioning time by 65%.

Typical Application Scenarios

Gas Turbine Control: In Mexico’s Altamira IV plant, 531X305NTBANG1 boards process signals from 9FA.05 turbines. The boards’ signal isolation resolved ground loop errors that caused 0.5% load oscillations during startup sequences.

Coal-Fired Boiler Monitoring: At Germany’s Neurath Station, the 531X305NTBANG1 interfaces with flame scanners and draft fans. Withstanding 55°C ambient temperatures and coal dust ingress, it maintained >99.8% signal availability for 36 months continuous operation.

Hydroelectric Governor Systems: For Canada’s BC Hydro, the 531X305NTBANG1 conditions wicket gate position feedback across 8 generators. Signal conditioning eliminated hydraulic oil temperature-induced drift, improving grid frequency response by 22%.

GE 531X305NTBANG1

Related Model Recommendations

IS215VCMCH2B: Mark VIe Controller – Interfaces directly with 531X305NTBANG1 for turbine sequencing.

DS200DCFBG1BRD: I/O Communication Board – Links 531X305NTBANG1 to legacy Mark V systems.

IC698CPE040: RX7i Controller – Modern upgrade path for 531X305NTBANG1-equipped sites.

IS200TBAIH1C: Analog Input Card – Sends sensor data to 531X305NTBANG1 for conditioning.

DS200TCEAG1ADC: Temperature Control Card – Requires 531X305NTBANG1 for signal preprocessing.

531X305NTBAJG1: Enhanced-revision TBA – Offers superior EMI shielding vs. 531X305NTBANG1.

Installation, Commissioning and Maintenance Instructions

Installation Preparation: Mount the 531X305NTBANG1 on EN 50022-compliant DIN rail using vibration-resistant clips. Ensure ambient temperature ≤75°C and humidity<95>

Maintenance Protocol: Biannually perform contact resistance tests on terminal blocks (<5m clean="" hd-68="" connectors="" annually="" with="" crc="" spray.="" monitor="" signal="" drift="" monthly="" via="" toolboxst="" diagnostics="" replace="" board="" if="">2 channels exceed ±0.1% calibration tolerance. For Mark V systems, verify firmware compatibility (v3.02 or later).<!--5mω-->
