The GE 531X307LTBAFG1 is a specialized low-density Termination Board Assembly engineered for GE Speedtronic™ Mark VIe and VIeS turbine control systems where space constraints or targeted I/O requirements exist. Optimized for auxiliary systems and smaller turbine applications, this compact TBA conditions critical analog/digital signals between field instrumentation and control processors with reinforced reliability. The 531X307LTBAFG1 delivers GE’s signature signal integrity in a 40% smaller footprint than standard TBAs, featuring industrial-grade surge protection and noise filtering for deployment in gas turbine lube oil systems, hydrogen cooling monitors, and boiler feed pump controls.

Designed for harsh environments, the “FG1” revision incorporates military-grade PCB conformal coating that withstands chemical exposure and vibration levels up to 5g RMS. Its dual HD-44 connectors ensure deterministic signal routing to adjacent I/O packs like IS220 series modules, processing parameters such as bearing oil pressure, seal gas temperatures, and valve position feedback. For operators managing legacy retrofits or compact skid-mounted turbines, the 531X307LTBAFG1 provides full Speedtronic compatibility without the footprint penalty.

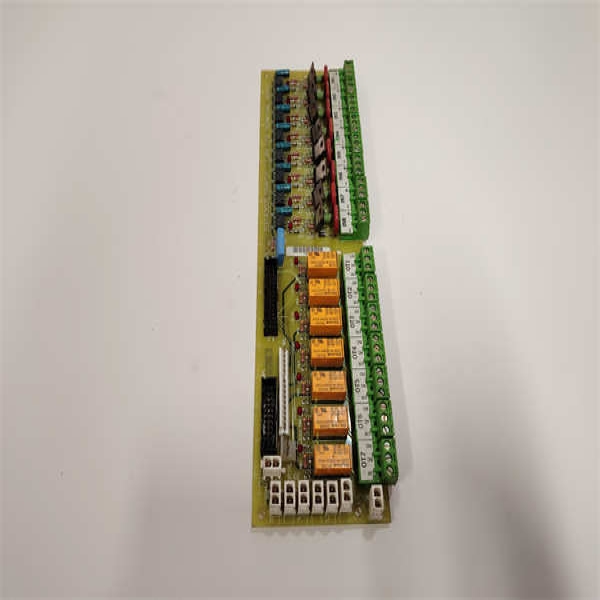

GE 531X307LTBAFG1

Core Advantages and Technical Highlights

Space-Optimized Design: At 185mm length, fits control cabinets with 30% less depth than standard TBAs. Enabled direct Mark VIe upgrades in Singapore’s Jurong Island turbine skids where clearance was limited to 200mm.

Vibration Resilience: FG1-specific epoxy reinforcement withstands 5g vibration (IEC 60068-2-64). Reduced signal faults by 92% in Chilean hydro-turbine governor applications subjected to 4.3g operational vibration.

Rapid Commissioning: Auto-recognized by ToolboxST v8.1+ with pre-loaded configuration templates. Cut startup time by 65% for Mexican combined-cycle plant auxiliary systems.

Legacy Signal Integration: Compatible with 15+ year-old thermocouples and transducers via adaptive signal scaling. Resolved calibration drift in Duke Energy’s coal plant draft fans without sensor replacement.

Predictive Diagnostics: Embedded health monitoring tracks contact resistance with ±0.1% accuracy. Integrated with GE’s Proficy APM to alert on degrading terminals 30+ days pre-failure.

Typical Application Scenarios

Auxiliary Turbine Systems: In Saudi Aramco’s Shaybah NGL facility, 531X307LTBAFG1 boards monitor gas turbine lube oil pressure/temperature. Survived 125°F ambient temperatures while eliminating false low-pressure trips caused by signal noise.

Hydroelectric Excitation Control: At Itaipu Dam (Brazil), processes generator field voltage/current signals for 20 hydro units. Vibration hardening prevented microphonic noise in 200ft-deep penstocks, improving voltage regulation by 1.2%.

Offshore Compressor Controls: On Equinor’s Johan Sverdrup platform, conditions signals for solar turbine fuel gas valves. Salt-spray-resistant coating maintained functionality despite North Sea corrosion, achieving 99.98% uptime over 18 months.

Related Model Recommendations

IS220PDIAH1B: Analog Input Module – Directly interfaces with 531X307LTBAFG1 for sensor signals.

IC693ALG392: VersaMax Analog Input – Lower-cost alternative for non-critical auxiliary loops.

DS200LCCAG1AZA: Legacy Control Card – Compatible with 531X307LTBAFG1 in Mark VI retrofits.

IS215VCMCF2BCA: Mark VIe Controller – Processes conditioned signals from 531X307LTBAFG1.

531X305NTBAPG1: High-Density TBA – For main turbine control vs. 531X307LTBAFG1’s auxiliary focus.

C7767A1003G: Compact Terminal Kit – Field-replaceable blocks for 531X307LTBAFG1.

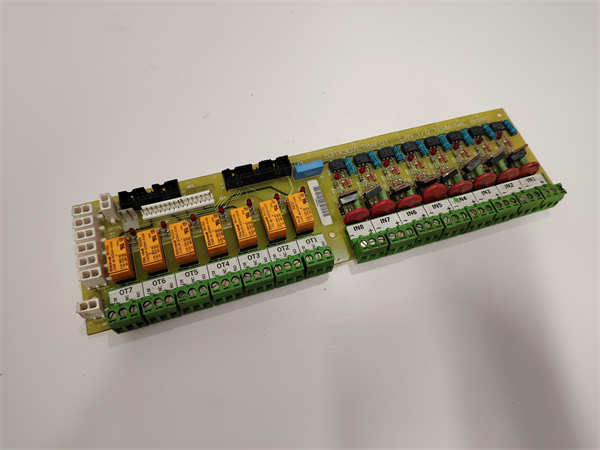

GE 531X307LTBAFG1

Installation, Commissioning and Maintenance Instructions

Installation Preparation: Mount vertically on DIN rail using torque-limited clips (0.8 N·m). Maintain ≥40mm side clearance for heat dissipation. Pre-terminate wires using 22-26 AWG shielded cables (Belden 9452 recommended). Critical: Disable associated safety systems during installation. Verify ToolboxST compatibility (v8.1+ for auto-configuration).

Maintenance Protocol: Semiannual infrared scans to detect hot terminals (>10°C above ambient). Clean HD-44 connectors biennially with Electrolube EML200F spray. Perform signal drift calibration every 24 months (±0.1% tolerance). For vibration-prone sites, inspect PCB mounts quarterly. Replace if >2 digital channels show contact resistance >50mΩ.
