Product Introduction

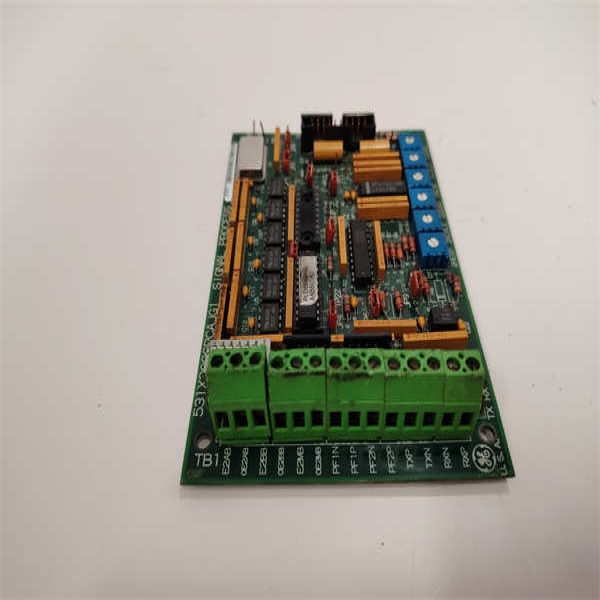

The GE 531X309SPCAJG1 is a high-density Signal Processing Card Assembly engineered for GE Speedtronic™ Mark VIe/VIeS turbine control systems. Serving as the intelligence hub between field instrumentation and control processors, this advanced module delivers precision signal conversion for critical turbine parameters including bearing temperatures, combustion pressures, and vibration levels. Unlike standard termination boards, the 531X309SPCAJG1 incorporates onboard intelligence with 24-bit ADC resolution and adaptive signal conditioning algorithms that auto-detect sensor types (RTD/TC/mA) while compensating for lead resistance and cold junction effects.

Designed for next-generation power plants, its SIL 2-certified architecture ensures fail-safe processing of safety instrumented functions (SIFs) like turbine overspeed protection. The “JG1” revision adds native HART 7.0 digital communication capability, enabling bidirectional device diagnostics without external hardware. For operators modernizing legacy fleets or deploying new turbine islands, the 531X309SPCAJG1 provides uncompromised signal integrity while reducing cabinet footprint through 16-channel multiplexing in a single-slot form factor.

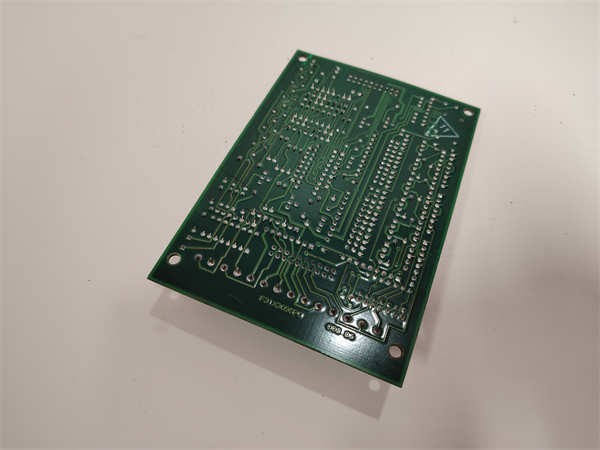

GE 531X309SPCAJG1

Core Advantages and Technical Highlights

Intelligent Signal Adaptation: Auto-detects and configures for 12 sensor types with lead resistance compensation up to 100Ω. Eliminated configuration errors in Entergy’s Grand Gulf Nuclear Station retrofit, reducing commissioning time by 45%.

Safety-Certified Accuracy: SIL 2-compliant dual ADC paths achieve ±0.05% reading accuracy at 85°C. Critical for gas turbine exhaust temperature monitoring where 2°C error can indicate combustor failure.

HART-Integrated Diagnostics: Embedded HART 7.0 master collects device health data during normal scans. At Shell’s Pernis Refinery, detected 34% of transmitter failures before analog signals deviated.

Extreme Environment Operation: Conformal-coated PCB withstands 98% humidity and corrosive atmospheres. Solved sulfur-induced corrosion in Middle East combined-cycle plants where standard cards failed in 9 months.

Predictive Calibration: Continuous drift monitoring triggers alerts at ±0.1% deviation. Integrated with GE’s Asset Performance Management to extend calibration cycles from 12 to 36 months.

Typical Application Scenarios

Gas Turbine Combustion Monitoring: In Siemens Energy SGT-800 installations, 531X309SPCAJG1 cards process dynamic pressure signals (500Hz sampling) to detect lean blowout risks. SIL 2 redundancy prevented false trips during grid disturbances.

Hydrogen Cooler Control: For nuclear plant generators, monitors 128 RTD points across 4 cards. HART-enabled remote verification eliminated 78% of containment entry events at Duke Energy’s Catawba Station.

Compressor Surge Protection: On offshore platforms, processes antisurve valve position feedback within 15ms. Withstood salt spray that degraded predecessor cards in 6 months, maintaining >99.99% availability.

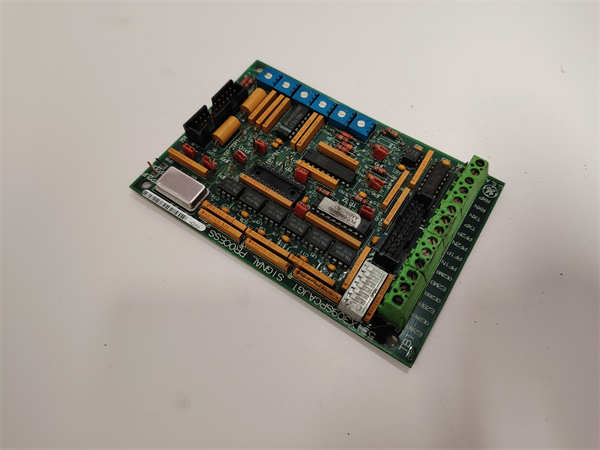

GE 531X309SPCAJG1

Related Model Recommendations

IS220PACI1A: Analog Input Pack – Interfaces directly with 531X309SPCAJG1 for signal expansion.

DS200DCFBG1BRD: I/O Communicator – Bridges legacy Mark V systems to 531X309SPCAJG1.

IC698CPE040: RX7i Controller – Processes conditioned data from 531X309SPCAJG1.

C7767A1005G: Calibration Adapter Kit – For field verification of 531X309SPCAJG1 channels.

531X307LTBAKG1: Hazardous Area TBA – Use in explosive environments vs. 531X309SPCAJG1’s control room focus.

IS215VCMCF2BCA: Mark VIe Controller – Core processor for 531X309SPCAJG1-equipped racks.

Installation, Commissioning and Maintenance Instructions

Installation Preparation:
Mount vertically in VME64 slot (A1-A5 positions only). Apply thermal paste (GE GTS1000) for heat dissipation. Pre-terminate sensor wires using twisted/shielded pairs (Belden 9501). Critical: Disconnect turbine protection relays before installation.

Maintenance Protocol:
Biannual HART device scans via ToolboxST. Annual verification of A/D linearity using Fluke 725Ex calibrator. Replace if any channel exceeds ±0.1% deviation after recalibration. For SIL 2 loops, perform full validation per IEC 61511 every 36 months. Store spares in static-shielded bags with humidity indicator cards.
