Description

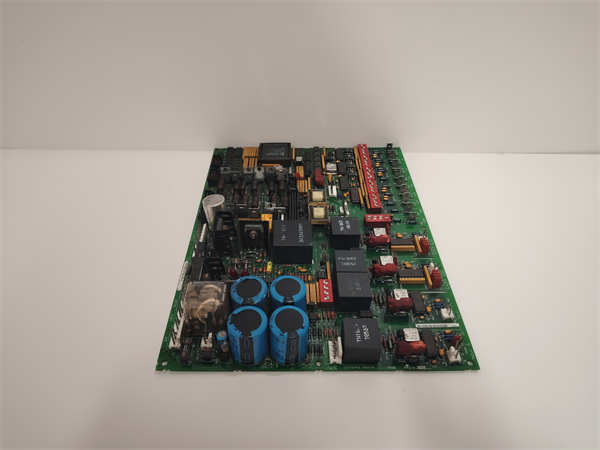

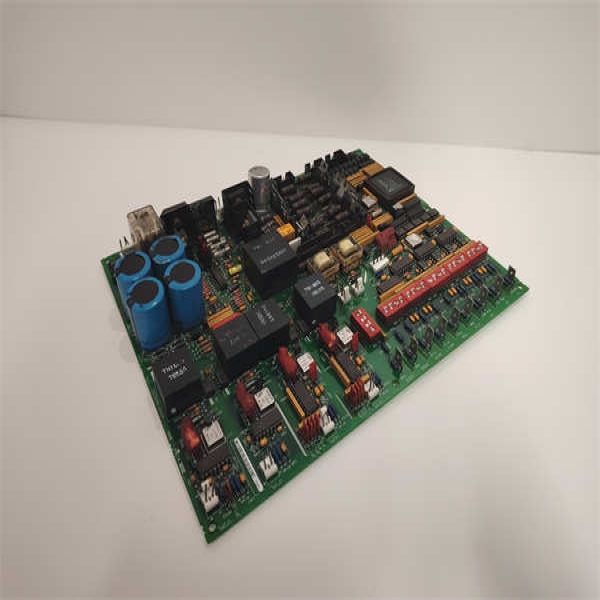

The GE DS200DCFBG1BLC is a high-precision Drive Control Feedback Board engineered for GE’s Mark VIe turbine control system, delivering critical motion control signal processing in demanding industrial environments. As a core component of GE’s Speedtronic series, this board interfaces with encoders and resolvers to provide real-time rotational feedback for gas/steam turbines and large motor drives. The GE DS200DCFBG1BLC converts analog position signals into digital data with 16-bit resolution, enabling sub-degree accuracy for synchronization and load-sharing applications. Its galvanically isolated design prevents ground loop interference in electrically noisy power generation facilities while supporting multiple feedback technologies (TTL, HTL, Sin/Cos) through configurable inputs. Designed for vertical integration within EX2100 or Mark VIe racks, this feedback board features hot-swappable replacement capability to minimize turbine downtime. The GE DS200DCFBG1BLC extends system lifecycle through backward compatibility with legacy Mark V systems and complies with API 670 machinery protection standards for vibration-critical installations.

Technical Specifications

Main Features and Advantages

Signal integrity defines the GE DS200DCFBG1BLC with adaptive noise cancellation algorithms that maintain<0>Configuration flexibility stands out: The board auto-detects 5-30V encoder supplies and supports programmable filtering (1-20 kHz) for resonant machinery. Field-replaceable terminal blocks enable maintenance without full rack shutdown.
Diagnostic capabilities include real-time signal quality monitoring through LED indicators and embedded health reports accessible via ToolboxST software. The GE DS200DCFBG1BLC implements predictive fault detection, alerting to deteriorating encoder signals before failure. SIL-2 compliant hardware architecture incorporates watchdog timers and redundant power rails to prevent unsafe states.

Application Field

The GE DS200DCFBG1BLC excels in high-inertia rotational systems requiring precise speed synchronization. Combined-cycle power plants utilize it for gas/steam turbine co-generation control, maintaining<2>In steel mill drives, the board interfaces with 8192 PPR encoders to regulate rolling mill tension within 0.5% tolerance. Hydroelectric plants leverage its humidity-resistant design (0-95% non-condensing) for governor feedback in penstock environments. Marine propulsion systems benefit from its shock tolerance (15g @ 11ms) to maintain thrust control during wave impacts. Paper manufacturing lines use the GE DS200DCFBG1BLC for sectional drive synchronization at web speeds exceeding 2,000 m/min.

Related Products

DS200DCFBG1BLA: Previous revision with reduced temperature range

DS200SDCCG1AFG: Drive control processor companion module

DS200PSBG: Power supply for DS200 series racks

DS200TBQCG1B: Terminal board for feedback wiring

IS200DCFBG1B: Enhanced isolation version for Class I Div 2 areas

DS200DIOBG: Digital I/O expansion module

DS200FGPAG1A: Front panel interface unit

IC693ALG390: Analog input module for legacy systems

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (Mark VIe or EX2100 VME). Discharge static using grounded wrist strap. Configure DIP switches for encoder type/supply voltage before inserting the GE DS200DCFBG1BLC. Ensure backplane firmware revision ≥ 6.05.

Maintenance recommendations: Calibrate every 24 months using GE’s TFC calibration tool. Monitor signal LEDs quarterly – flickering green indicates noise interference. Replace after 7 years service or 50,000 thermal cycles. Always maintain configuration backups on USB keys for rapid GE DS200DCFBG1BLC replacement.
