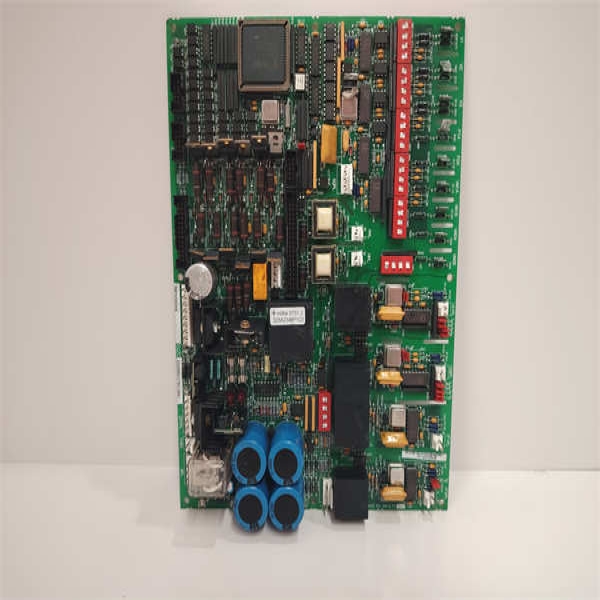

The GE DS200DCFBG1BNC is an advanced Drive Control Feedback Board engineered for extreme-environment applications within GE’s Mark VIe and EX2100 turbine control systems. As a ruggedized variant of the DCFBG series, this board delivers precise rotational feedback for critical machinery in high-temperature, high-vibration, and EMI-intensive environments. The GE DS200DCFBG1BNC features enhanced signal conditioning circuitry capable of processing resolver, encoder, and tachometer inputs with 0.003° angular resolution, maintaining accuracy during voltage fluctuations up to ±20%. Its triple-shielded design and conformal coating provide exceptional immunity to electromagnetic interference and humidity, making it suitable for installation near arc furnaces, turbine decks, and compressor stations. The board integrates seamlessly with Speedtronic control platforms, offering real-time data synchronization through VME backplane communication while supporting hot-swap replacement. For legacy system upgrades, the GE DS200DCFBG1BNC maintains pin-compatibility with earlier Mark V installations, delivering modern diagnostics without rewiring costs.

GE DS200DCFBG1BNC

Technical Specifications

Main Features and Advantages

Extreme environment resilience: The GE DS200DCFBG1BNC incorporates thermal management technology with copper-core PCB layers and ceramic-coated components, enabling continuous operation at 100°C ambient – ideal for gas turbine enclosures.
Signal fidelity enhancement: Proprietary dithering algorithms eliminate quantization errors in low-speed applications (<5>Advanced diagnostics: On-board self-monitoring includes channel asymmetry detection and lead/lag compensation analysis. ToolboxST software integration provides spectral analysis of feedback signals, identifying bearing wear or coupling misalignment weeks before failure. The GE DS200DCFBG1BNC generates predictive maintenance alerts when signal integrity degrades beyond thresholds.

Application Field

The GE DS200DCFBG1BNC excels in industries where extreme conditions challenge conventional feedback systems. In steel production, it withstands radiant heat from continuous casters while controlling roller table drives with 0.01% speed matching. Geothermal plants utilize its high-temperature capability for wellhead pump control in 90°C ambient environments.
For mining dragline excavators, the board survives 25g shock loads during bucket impacts while maintaining precise hoist motor synchronization. Cement kiln drives leverage its dust immunity to process encoder signals through electrostatic interference. In marine applications, the GE DS200DCFBG1BNC controls thrusters in engine rooms where ambient temperatures reach 85°C. Wind turbine pitch systems benefit from its condensation resistance during rapid temperature cycling from -30°C to 70°C.

GE DS200DCFBG1BNC

Related Products

DS200DCFBG1BLC: Standard industrial version (-40°C to +85°C)

DS200SDCCG1AFG: Drive control processor module

DS200TCPSG1B: Terminal carrier panel for feedback wiring

IS200DTPAG1A: Temperature-hardened power supply

DS200DIOBC1C: Digital I/O module with surge protection

DS200FGPAG1A: Front panel interface with OLED diagnostics

IC698CPE020: Complementary controller for legacy upgrades

DS200LDCCH1ADA: Load commutation board for DC drives

Installation and Maintenance

Pre-installation preparation: Verify rack cooling capacity supports +100°C operation. Disconnect turbine auxiliaries and discharge capacitors. Apply thermal interface compound to heatsink surfaces when installing the GE DS200DCFBG1BNC in >80°C environments. Configure jumpers for signal type before power-up.

Maintenance recommendations: Perform infrared thermography annually – replace if hotspot differential exceeds 15°C. Recalibrate every 5 years using GE’s TFC-2000 test set. For vibration-prone installations, inspect board mounting bolts torque (0.6 N·m) during quarterly shutdowns. Always store replacement GE DS200DCFBG1BNC units in anti-static bags with desiccant.
