Description

The GE DS200LDCCH1AKA is a high-performance Load-Dependent Commutation Control Board engineered for GE’s Mark VIe DC drive systems, delivering precision thyristor firing control in demanding industrial applications. As a critical component of GE’s Speedtronic™ platform, this board manages phase-controlled commutation for DC motors up to 5,000 HP in reversing and non-reversing configurations. The GE DS200LDCCH1AKA integrates advanced current-loop algorithms with adaptive commutation compensation, maintaining torque stability within 0.5% during rapid load changes. Its reinforced gate drive circuitry generates 5.0A peak firing pulses with<100ns>DS200LDCCH1AKA provides real-time thyristor health monitoring while supporting hot-swap replacement in redundant drive cabinets.

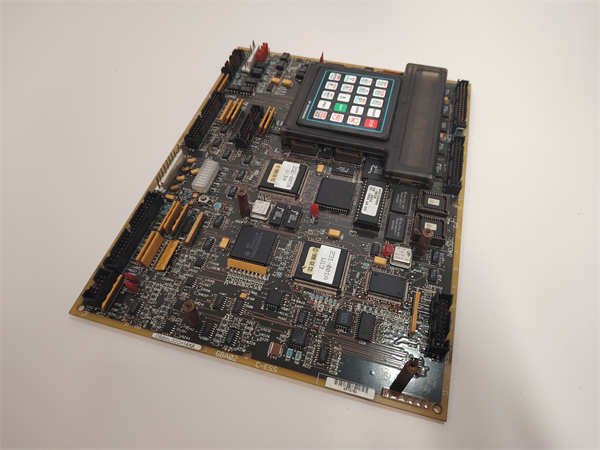

GE DS200LDCCH1AKA

Technical Specifications

Main Features and Advantages

Advanced commutation control: The GE DS200LDCCH1AKA employs predictive commutation failure prevention through real-time calculation of di/dt and armature current discontinuity. Its adaptive blanking angle adjustment compensates for transformer impedance variations during network dips.
Robust firing system: Reinforced gate drivers feature active crowbar protection and 8kV ESD immunity, preventing damage from thyristor snubber failures. Dual-wound pulse transformers provide galvanic isolation while maintaining<100ns>Integrated diagnostics: Continuous monitoring of thyristor forward voltage drop identifies deteriorating devices before failure. The board generates waveform captures of commutation events with 10μs resolution for post-fault analysis. Automatic pulse skipping during overcurrent conditions protects converters from catastrophic faults.

Application Field

The GE DS200LDCCH1AKA dominates heavy industries requiring precise DC motor control under variable loads. Steel rolling mills utilize it for main stand drives maintaining constant tension within 1% during acceleration/deceleration. Mining shovel hoist controls leverage its adaptive commutation to handle 300% overloads during digging cycles.
For paper machine section drives, the board synchronizes multiple DC motors within 0.01% speed matching at web speeds exceeding 1,500 m/min. Port crane hoists benefit from its regenerative braking control during container lowering operations. In metal extrusion lines, the GE DS200LDCCH1AKA maintains constant torque despite material hardness variations. Water treatment plants use it for sludge mixer drives requiring controlled acceleration in high-viscosity fluids.

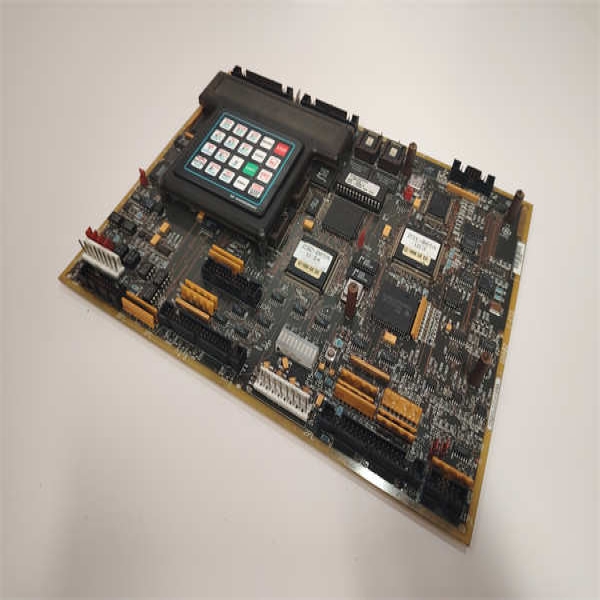

GE DS200LDCCH1AKA

Related Products

DS200LDCCH1AJA: Previous revision with reduced pulse current

DS200TCPSG1B: Power supply module for drive racks

DS200DCFBG1BNC: Feedback board for armature position

DS200FGPAG1A: Front panel interface with status LEDs

DS200SDCCG1AFG: System control processor

IS200LDCCH1AHA: Intrinsically safe variant

DS200GDBG1A: Gate driver booster module

IC698CPE020: Controller for legacy DC drive upgrades

Installation and Maintenance

Pre-installation preparation: Verify thyristor gate characteristics match board specifications. Discharge DC link capacitors to<5V>GE DS200LDCCH1AKA. Ensure fiber-optic sync cables are routed away from power cables.

Maintenance recommendations: Perform quarterly pulse symmetry checks using GE’s FPA-2 analyzer. Monitor heat sink temperatures – replace if delta-T exceeds 15°C above ambient. Re-torque gate terminal screws annually to 0.8 N·m. Maintain thyristor health reports for predictive replacement scheduling.
