Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | ABB XUD194 (3BHE018137R0001) |
| Manufacturer | ABB |
| Product Category | Power Supply Module (for AC800PEC Controllers) |
| Input Voltage | 24 V DC (18–36 V DC range) |
| Output Voltage | 5.1 V DC (isolated) |
| Output Current | 40 A (continuous) |
| Redundancy Support | N+1 parallel operation with load sharing |
| Efficiency | ≥92% (typical at full load) |
| Protections | Overcurrent, overtemperature, reverse polarity |
| Status Monitoring | LED indicators (OK, Fault, Active), PMbus telemetry |
| Hot-Swap Capable | Yes (with live insertion/removal) |
| Operating Temperature | -25°C to +70°C (derating above 60°C) |
| Safety Standards | UL 508, IEC 61131-2, CE, cULus |
| Compatibility | ABB AC800PEC controllers (PM861, PM865, etc.) |
Product Introduction
The ABB XUD194 (3BHE018137R0001) is a high-availability power supply module engineered exclusively for ABB’s AC800PEC high-performance controllers. Designed for mission-critical process automation systems, this module converts 24 V DC input to precisely regulated 5.1 V DC power for processor and I/O backplanes. As a core component of ABB’s 800xA or Symphony Plus DCS architectures, the XUD194 ensures uninterrupted operation of safety and control functions through N+1 redundancy and hot-swap capabilities.
Technically positioned for power generation, oil & gas, and chemical applications, the module integrates with AC800PEC controllers like PM865 to deliver 40 A of clean power while tolerating voltage dips and transients. Its role extends beyond basic power conversion – it actively monitors health status via PMbus and synchronizes with redundant peers to prevent single-point failures. The ABB XUD194 is indispensable for systems demanding “five-nines” (99.999%) uptime in harsh industrial environments.

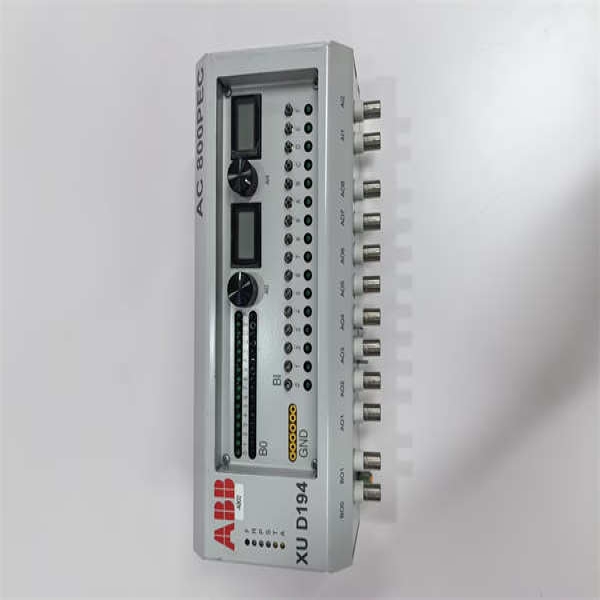

ABB XUD194 3BHE018137R0001 AC800PEC
Core Advantages and Technical Highlights
Fault-Tolerant Power Delivery
The ABB XUD194 supports parallel operation with active load sharing (≤5% imbalance). If one unit fails, others instantly compensate without voltage drop. Hot-swap capability allows replacement during operation – critical for continuous processes like refining or boiler control.
Precision Voltage Regulation
±1% output accuracy (5.1 V ±0.05 V) under 0–100% load steps protects sensitive controller electronics. Low ripple/noise (<100>
Advanced Diagnostics & Prognostics
Integrated PMbus interface reports real-time data:
Input/output voltage/current
Temperature and efficiency
Operating hours and fault logs
ABB’s Control Panel Builder software visualizes this data for predictive maintenance.
Robust Environmental Performance
Operates at -25°C without derating and withstands 5g vibration (10–150 Hz). Conformal coating protects against humidity and corrosive atmospheres (ISO 12944 C4).
Seamless System Integration
Auto-synchronization with redundant modules via dedicated SYNC pins. Plug-and-play installation in AC800PEC bays (C, D slots) with keyed connectors preventing misalignment.
Typical Application Scenarios
The ABB XUD194 (3BHE018137R0001) secures power continuity in critical infrastructure:
Power Plant Turbine Control: Powers PM865 controllers managing steam valve positioning and anti-surge logic. Redundancy prevents unit trips during grid disturbances.
Offshore Platform Safety Systems: Feeds AC800PEC-based ESD/F&G controllers. -25°C cold-start capability ensures Arctic operation.
Pharmaceutical Batch Reactors: Maintains precision temperature/pH control loops during 24/7 campaigns. Hot-swap enables maintenance without batch abort.
Pulp & Paper High-Speed Drives: Supports motion controllers synchronating rollers. Voltage stability prevents registration errors at 2,000 m/min speeds.
Hydrogen Electrolyzer Facilities: Powers SIL 3-certified safety controllers; PMbus data integrates with ABB Ability™ for energy optimization.
ABB XUD194 3BHE018137R0001 AC800PEC
Related Model Recommendations
PM865: Primary AC800PEC controller – directly powered by the XUD194.
XUD195: 60A redundancy module – higher-capacity sibling for expanded systems.
SD834: I/O extension power supply – complements XUD194 for remote racks.
CI871: Ethernet communication interface – critical network component powered via backplane.
3BSE050348R1: Power supply synchronization cable – essential for redundant XUD194 pairs.
PP885: Human-Machine Interface (HMI) panel – system visualization endpoint.
S800 I/O Modules: Field interface units (e.g., AI825, DI810) – end-points of power distribution.
Installation, Commissioning and Maintenance Instructions
Installation Preparation:
Verify DC source stability (18–36 V DC). Use 6 mm² copper wires for input terminals (torque to 1.2 N·m). For redundancy:
Install modules in adjacent slots
Connect SYNC cables before power-on
Ensure firmware versions match
Ground chassis to PE busbar (R < 0>
Maintenance Suggestions:
Monthly: Check status LEDs (Green = OK, Red = Fault)
Quarterly: Clean air vents with low-pressure dry air
Annually: Verify load sharing imbalance (<5>
Predictive: Replace units reporting >90% electrolytic capacitor aging (via Control Panel Builder)
Always replace in redundant pairs after 10+ years of service
