Description

The GE IS210MACCH1AGG is a high-performance Motion Application Control Card engineered for precision turbine valve positioning within GE’s Mark VIe Speedtronic™ control system. This specialized module executes real-time hydraulic servo control algorithms for steam admission valves, gas turbine fuel skids, and bypass systems with ±0.1% positioning accuracy. Featuring quad-core PowerPC processing at 1.2 GHz, the IS210MACCH1AGG computes complex trajectory profiles for up to 8 independent axes at 250 μs cycle times while interfacing with LVDT/RVDT position feedback devices. Its SIL 3-certified architecture (IEC 61508) ensures failsafe operation during critical transients like fast load rejection or emergency shutdowns. The module’s reinforced isolation (2.5 kV RMS) withstands electrical noise in turbine pedestals, while conformal-coated electronics resist humidity, oil mist, and H₂S contaminants in combined-cycle plants. Integrated with Mark VIe controllers via high-speed ISBus+, the GE IS210MACCH1AGG enables adaptive gain scheduling for nonlinear valve characteristics and predictive wear compensation.

Technical Specifications

Main Features and Advantages

Adaptive Valve Control: Patented algorithms automatically compensate for stiction and hysteresis in steam control valves. Real-time friction modeling adjusts servo gains during stroke transitions, maintaining<0>

Fault-Tolerant Architecture: Triple-redundant position feedback validation detects sensor discrepancies within 2 ms. Fallback modes maintain operation with single-channel failure – critical for SIL 3 turbine protection systems.

Predictive Maintenance Integration: Embedded wear analytics track valve stem friction trends and packing degradation. Generates alerts when performance deviates from baseline by >15%, enabling planned outages before failure.

High-Density I/O: Eight servo channels in single-slot footprint with integrated signal conditioning (excitation, demodulation). Eliminates external signal converters – reducing wiring by 60% versus legacy systems.

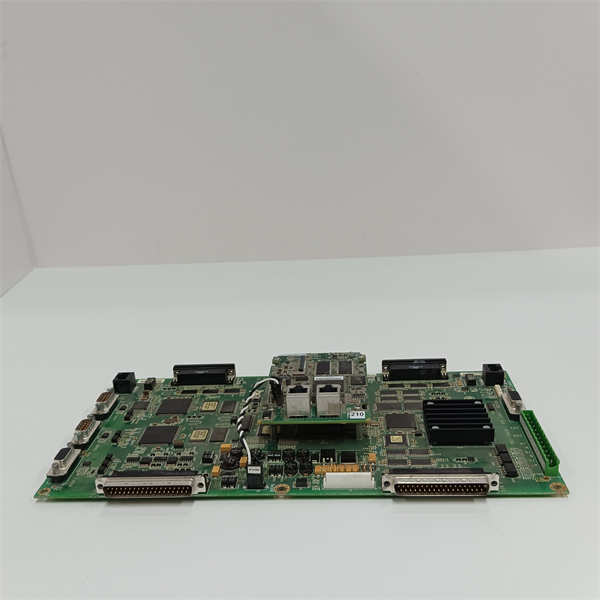

GE IS210MACCH1AGG

Application Field

The GE IS210MACCH1AGG dominates critical turbine control applications:

Steam Turbine Governing: Precise HP/IP/LP valve sequencing during fast start-ups (<15>

Gas Turbine Fuel Control: Metering liquid/gas fuel valves for emissions-compliant combustion

HRSG Bypass Systems: Rapid atmospheric dump valve positioning during turbine trips

Hydroelectric Inlet Gates: Synchronized wicket gate control for hydraulic stability

Compressor Anti-Surge: Fast-response recycle valve modulation (<100>

In nuclear plants, its EMI-hardened design (IEEE 323) ensures reliable operation in Class 1E environments for feedwater control valve management.

Related Products

IS210MAEAH1A: Analog servo drive module for auxiliary axes

IS210VCMCH1B: Valve condition monitoring specialty card

DS200DCFBG1B: LVDT signal conditioner retrofit kit

IS215VCMVG2A: High-voltage servo driver upgrade

IS220PDIAH1A: Discrete I/O module for limit switch integration

Mark VIe TMR Controller: Safety-certified rack system

ToolboxST™ Motion Pro: Configuration software for IS210MACCH1AGG

EX2100e_POS: Positioning system for legacy excitation

Installation and Maintenance

Pre-installation preparation: Verify Mark VIe rack grounding (<0>

Maintenance recommendations: Perform quarterly step-response tests to validate settling time<500><!--500-->
