The GE V7768-320000 (3509301007768-320000A0) is a high-reliability Excitation Control Module from GE’s Mark VIe series, engineered for precision management of generator field currents in power generation applications. As the computational core of GE’s EX2100e excitation system, this module regulates voltage, reactive power, and power factor for synchronous generators up to 1,500 MVA. It integrates advanced algorithms for PID control, field forcing, and under-excitation limiters while supporting redundant configurations for critical plants like combined-cycle gas turbines, hydroelectric facilities, and industrial cogeneration sites. The GE V7768-320000 features dual-processor architecture with hardware-based fault detection, enabling seamless switchover (<50>

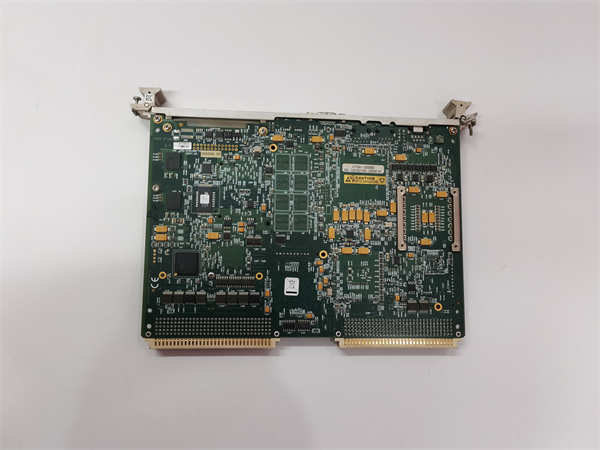

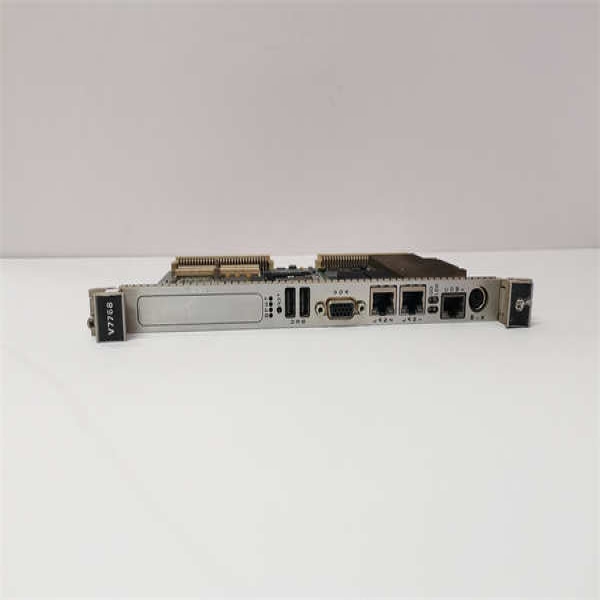

GE V7768-320000 3509301007768-320000A0
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | GE V7768-320000 (3509301007768-320000A0) |
| Manufacturer | GE (General Electric) |
| Product Type | Excitation Control Module |
| Controller | Dual Freescale PowerPC @ 533 MHz |
| Memory | 512 MB DDR3 RAM / 1 GB Flash |
| Control Loops | Voltage, Current, PF, VAR (configurable) |
| Field Current Rating | 600 A DC continuous (with external thyristors) |
| Response Time | <10> |
| Redundancy | 1:1 hot standby |
| Communication | 2x Ethernet (IEC 61850-3), Profibus DP, CAN |
| HMI Interface | Embedded Web Server |
| Input Power | 24–125 V DC (dual-redundant inputs) |
| Operating Temperature | -40°C to +65°C |
| Humidity | 0–95% non-condensing |
| Certifications | UL, CE, IEEE C37.90, SIL 2 |
| Dimensions | 200 x 128 x 45 mm |
Main Features and Advantages
Grid-Stability Optimization: The GE V7768-320000 employs adaptive PID tuning with real-time VAR/power factor control, preventing under-excitation during grid faults. Its<10>
Cybernetic Resilience: Hardware-enforced separation between control and communication processors blocks malware propagation. Tamper-proof firmware with signed updates meets NERC CIP requirements.
Seamless Fault Tolerance: Dual modules synchronize via fiber-optic links. Automatic bumpless transfer maintains excitation during control processor failures.
Advanced Diagnostics: On-board oscillography captures 128 analog/digital signals pre/post-fault. Predictive algorithms track thyristor health and field winding insulation.
Legacy Integration: Supports legacy GE Speedtronic interfaces (Mark V, Mark VI) via bridge modules.
GE V7768-320000 3509301007768-320000A0
Application Field
The GE V7768-320000 excels in:
Gas Turbine Plants: Regulates excitation for Frame 7FA/9FA generators during grid synchronization.
Hydroelectric Stations: Manages reactive power for pumped storage units during mode transitions.
Industrial Cogeneration: Maintains voltage stability for paper mills/refineries with islanding capability.
Black Start Systems: Controls field flashing for auxiliary generators in grid collapse scenarios.
Nuclear Facilities: SIL 2-certified for Class 1E safety-related excitation (with redundancy).
Related Products
GE TBCA-01: Thyristor Bridge – SCR stack for V7768-320000 field current output.
GE H7EC: HMI Panel – Local operator interface for excitation control.
GE IS220PDIAH1A: I/O Pack – Interfaces with generator PTs/CTs.
GE C7766-200: Redundancy Module – Synchronizes dual V7768-320000 systems.
GE DS3800HXPG: Power Supply – 125V DC input converter.
GE EX2100e_ENKIT: Retrofit Kit – Upgrades legacy GE exciters.
Installation and Maintenance
Pre-installation preparation: Verify generator CT/PT ratios match configuration files. Isolate field leads with 5 kV Hi-Pot testing. Ground control cabinet to<1>
Maintenance recommendations: Perform annual IR scans on thyristor cabinets. Monitor brushless exciter diodes via V7768-320000 diagnostics. Replace cooling fans every 5 years. Validate redundancy switchover quarterly. Use GE’s Asset Performance Management (APM) for predictive analytics.
