Description

The GE F650BABF1G0HI is a cutting-edge feeder management relay from GE’s Multilin 650 series, engineered for comprehensive protection, control, and monitoring of medium-voltage power distribution networks. This GE Multilin F650BABF1G0HI integrates advanced algorithms for fault detection, arc flash mitigation, and power quality analysis in a compact, DIN-rail-mountable design. It supports utility and industrial applications requiring IEC 61850 compliance, featuring 12 configurable I/O modules and seamless integration with SCADA/DMS systems. The relay’s dual Ethernet ports enable high-speed GOOSE messaging for critical tripping signals (<4ms>F650BABF1G0HI operates flawlessly from -40°C to +85°C with 50g shock resistance, making it indispensable for mining, data centers, and renewable energy plants where grid resilience is paramount.

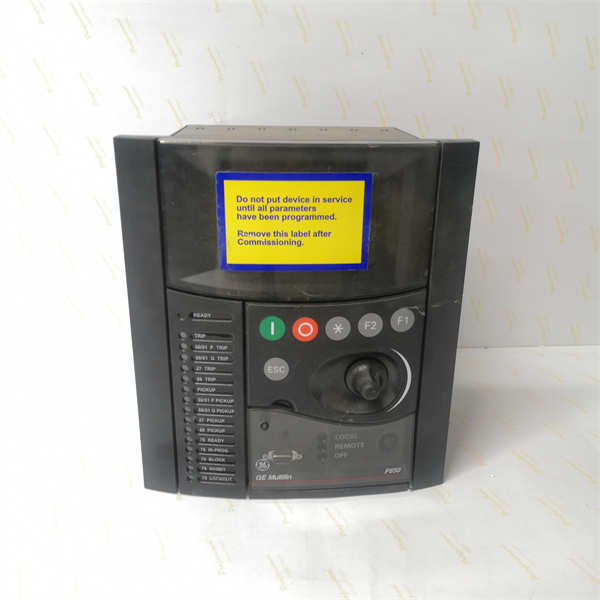

GE F650BABF1G0HI

Technical Specifications

Main Features and Advantages

Grid-Resilient Protection: The GE F650BABF1G0HI delivers industry-leading arc flash detection via light sensors (optional ALPS accessory), reducing incident energy by 85% through sub-cycle tripping. Its adaptive ground fault logic distinguishes transient faults from permanent failures using wavelet analysis.

Cyber-Secure Operations: Hardware-enforced IEC 62351 compliance includes encrypted GOOSE messaging, role-based access control, and tamper-proof event logging. The relay’s “Secure Boot” architecture prevents firmware manipulation with cryptographic signature verification.

Diagnostic Intelligence: Real-time power quality monitoring tracks 512 harmonics (THD up to 100th order), while the Dynamic Thermal Model calculates cable loading capacity based on ambient temperature history. Automated commissioning with Enervista software cuts setup time by 70%.

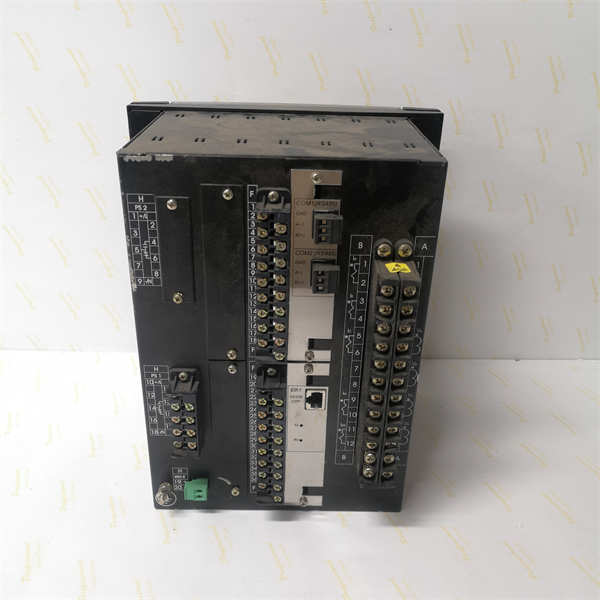

GE F650BABF1G0HI

Application Field

The GE Multilin F650BABF1G0HI excels in critical infrastructure:

Renewable Energy: Protects solar/wind collector feeders with rate-of-change frequency (81R) and anti-islanding logic

Industrial Microgrids: Manages generator synchronization (25/27) and load shedding (81L) in CHP plants

Transportation: Secures rail traction power with DC injection detection and autoreclosing (79)

Oil & Gas: Monitors submersible pump motors in hazardous areas (ATEX Zone 2 certified)

Data Centers: Prevents downtime via bus differential backup (87B) and ITIC/SEMI F47 compliance

Related Products

F650BABF1G1HI: Enhanced model with IRIG-B time synchronization

ALPS-1A: Arc flash light sensor kit

SX1000: Substation gateway for IEC 61850 conversion

B90: Bus differential relay for coordination

C30: Controller for auto-transfer schemes

L90: Line distance protection relay

SR469: Motor management relay

Installation and Maintenance

Pre-installation preparation: Verify CT/VT ratios match F650BABF1G0HI settings. Disconnect auxiliary power before wiring. Use 2.5mm² shielded cables for analog inputs with separate conduits for AC/DC circuits. Ground chassis via dedicated 10AWG copper conductor.

Maintenance recommendations: Perform annual contact resistance tests on trip circuits. Update firmware via Enervista using digitally signed packages only. Validate arc flash settings after grid reconfiguration. Replace backup lithium battery (ER17330V) every 5 years.
