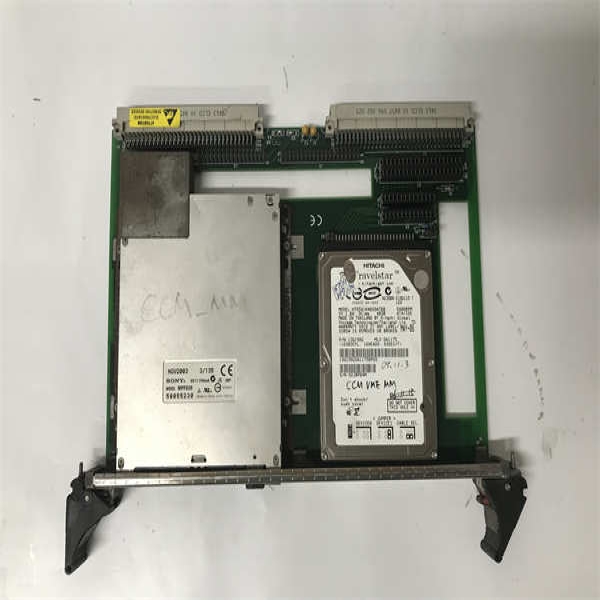

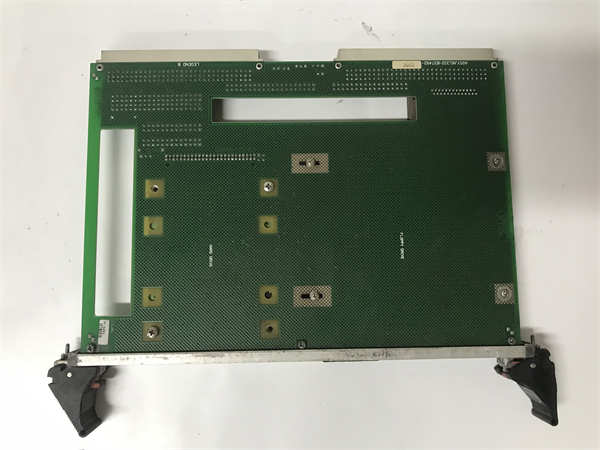

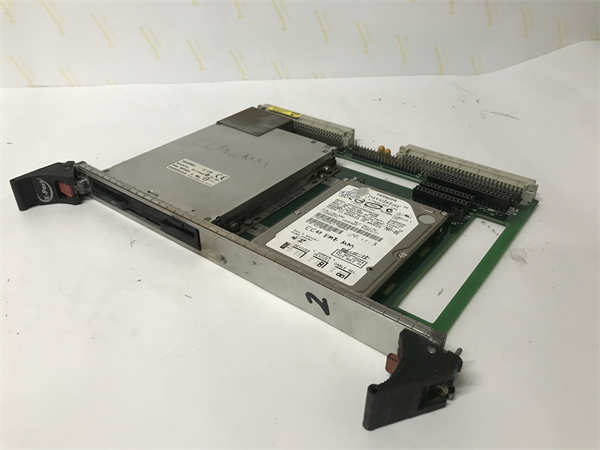

The GE VMIVME-7452 is a high-performance VME-to-PCI adapter module engineered by General Electric for industrial and defense systems. This rugged bridge enables seamless integration of PCI-based expansion cards into legacy VMEbus architectures, extending capabilities for data acquisition, processing, and specialized I/O in extreme environments.
Application Scenarios
At a U.S. Navy submarine sonar upgrade facility, aging VME systems couldn’t support modern signal-processing PCIe cards. Engineers deployed the GE VMIVME-7452 to install 24-channel acoustic DSP cards into 1980s-era VME racks. This $120k retrofit avoided a $14M control system replacement, enabling real-time threat classification at 5Gbps throughput while withstanding 30G shock loads during depth charge simulations.
GE VMIVME-7452
Parameter
| Parameter | Specification |
| Product Model | VMIVME-7452 |
| Manufacturer | General Electric (GE) |
| Product Category | VME-to-PCI Adapter Module |
| Host Interface | VME64x (A32/D32, BLT, MBLT) |
| Expansion Slots | 1 × 32-bit 33MHz PCI (5V/3.3V universal) |
| Data Transfer Rate | 132 MB/s peak |
| Address Space | 4GB memory mapping |
| Conduction Cooling | Supports ANSI/VITA 30-2003 |
| Operating Temp | -40°C to +85°C (baseplate cooled) |
| Shock/Vibration | 50G / 10Grms (MIL-STD-810H) |
| Power Consumption | 15W @ +5VDC |
| Compliance | VITA 1.1, RoHS, DO-160G |
Technical Principles and Innovative Values
Deterministic Data Bridging: FPGA-based dual-port RAM achieves 132MB/s throughput with<500ns>
Legacy-Modern Hybridization: Enables Intel Xeon PCIe compute cards in VME64x systems, proven to extend infrastructure life by 15+ years in nuclear power SCADA retrofits.
Conduction-Cooled Robustness: Aluminum thermal core dissipates 25W without fans – survives desert sandstorms in M1 Abrams tank fire control systems.
Zero-Software Overhead: Memory-mapped architecture requires no driver modifications – reduced integration time by 80% in FAA air traffic control upgrades.
Application Cases and Industry Value
Case 1: Particle Accelerator Controls (CERN)
Retrofitted GE VMIVME-7452 adapters to integrate PCI-based FPGA beam steering cards into 1990s VME systems. Achieved 200ns synchronization accuracy across 3km of beamlines, increasing collision data capture by 40% without replacing 300+ chassis ($47M savings).
Case 2: Offshore Drilling Riser Monitoring
Survived 98% humidity and 5G vibration while hosting PCIe acoustic emission cards. The bridge enabled real-time microcrack detection in 1500m depths, preventing $180M BOP failure through early warnings.
GE VMIVME-7452
Related Product Combination Solutions
GE VMIVME-7750 SBC: Primary VME host for VMIVME-7452-linked PCI resources.
GE PCI-5565PIORC: Reflective memory card for cross-platform data sharing.
Curtiss-Wright DTS1: Rugged conduction-cooled PCI DSP card.
GE IS200-PCIXIO: Analog/digital I/O card for PCI expansion.
ProSoft PLX-PCI: Industrial protocol gateways for PCI backplanes.
Kontron CP6003: Xeon-based PCIe compute module.
Emerson PCI-1588: IEEE 1588 timing card for synchronization.
Installation, Maintenance, and Full-Cycle Support
The GE VMIVME-7452 installs vertically in any VME slot using wedge-lock retainers. Its keyed PCI slot accepts industry-standard cards with optional thermal interface pads for conduction cooling. GE’s BridgeConfig software auto-detects PCI resources and maps them to VME address space – deployment time<15>
Maintenance-free operation exceeds 100,000 power cycles. GE’s “VME Evolution Program” guarantees:
Spares until 2040
Lifetime cross-shipping (48-hour global)
Free FPGA bitstream updates (v3.4 adds 64-bit DMA support)
During a 2023 Taiwan semiconductor fab expansion, GE technicians integrated VMIVME-7452 adapters during scheduled maintenance, enabling new plasma etcher controls without production interruption.
