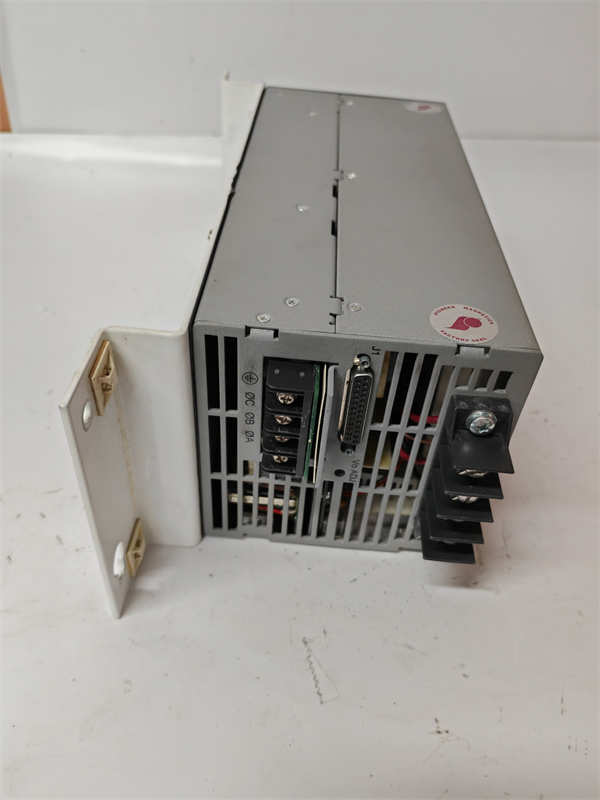

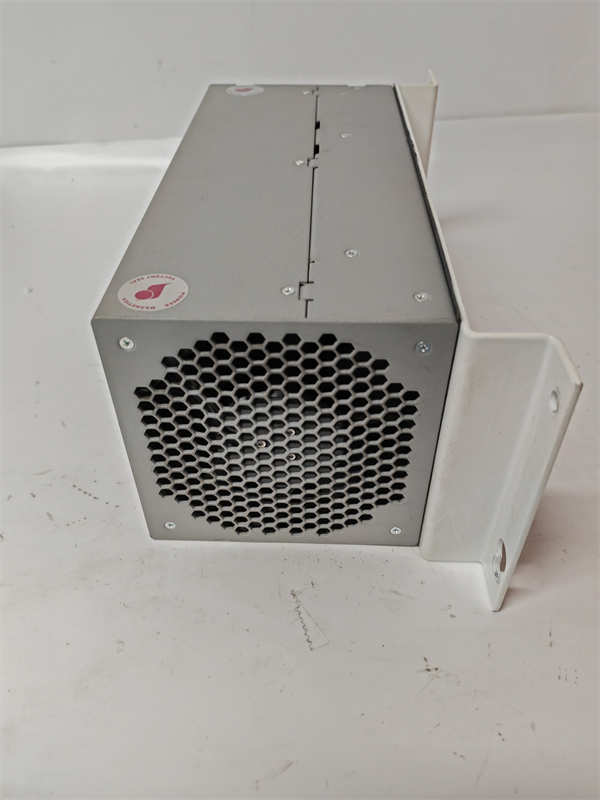

The PIONEER MAGNETICS PM3398B-6P-1-3P-E 80026-172-23 is a high-efficiency, programmable AC/DC power supply module engineered for precision industrial and test applications requiring stable, low-noise power in demanding environments. Designed with advanced resonant switching technology, this PIONEER MAGNETICS PM3398B-6P-1-3P-E delivers 600W of regulated power with exceptional voltage/current stability (±0.05% regulation) and minimal ripple (<10>PIONEER MAGNETICS PM3398B-6P-1-3P-E 80026-172-23 excels in aerospace, defense, and automated manufacturing systems where power integrity is non-negotiable.<!--10-->
PIONEER MAGNETICS PM3398B-6P-1-3P-E 80026-172-23
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | PIONEER MAGNETICS PM3398B-6P-1-3P-E 80026-172-23 |
| Manufacturer | Pioneer Magnetics (Parker Hannifin) |
| Product Type | Programmable AC/DC Power Supply |
| Input Voltage | 85–264V AC (47–440 Hz) |
| Output Power | 600W continuous |
| Output Voltage Range | 0–80V DC (programmable) |
| Output Current | 0–7.5A DC |
| Regulation Accuracy | ±0.05% (line), ±0.1% (load) |
| Ripple & Noise | <10><!--10--> |
| Efficiency | 92% typical at 230V AC |
| Isolation Voltage | 1500V DC (input-output) |
| Protections | OVP, OCP, OTP, short-circuit |
| Control Interface | Analog (0–5V/0–10V) |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Cooling Method | Convection (fanless) |
| Certifications | UL 60950-1, CE, EN 55032 Class B |
| MTBF | 500,000 hours (MIL-HDBK-217F) |
| Dimensions | 61 mm × 127 mm × 330 mm (2.4″ × 5.0″ × 13.0″) |
Main Features and Advantages
Ultra-Precise Regulation: Proprietary digital control loops maintain ±0.05% voltage stability during line/load transients—critical for calibration labs and semiconductor burn-in testing.
Multi-Phase Output Synergy: Three-phase DC output minimizes harmonic distortion when powering motor drives, reducing torque ripple in CNC machining centers by 40% compared to single-phase supplies.
Programmable Flexibility: Voltage/current limits adjustable via analog signals enable dynamic load profiling for battery emulation or HALT testing without external controllers.
Military-Grade Robustness: Fanless design with IP20 rating withstands conductive dust in foundries. MIL-STD-461G compliance ensures immunity to radar pulses and EMP events in defense systems.
Diagnostic Intelligence: Remote sense terminals compensate for cable voltage drop; fault status pins (TTL) report OTP/OVP conditions for predictive maintenance.
PIONEER MAGNETICS PM3398B-6P-1-3P-E 80026-172-23
Application Field
The PIONEER MAGNETICS PM3398B-6P-1-3P-E powers mission-critical systems where noise-free DC is essential:
Aerospace: Avionics test rigs simulating altitude-induced voltage transients (-40°C operation).
EV Manufacturing: Battery formation equipment requiring precise charge profiles (0–80V range).
Semiconductor: Wafer etch/plating tools demanding<10>
Industrial Lasers: CO₂ laser tube supplies where arc detection relies on current stability.
Research: Fusion reactor diagnostics needing EMI immunity amidst magnetic fields.
Related Products
PIONEER MAGNETICS PM3397A-4P: 400W compact variant for space-constrained racks.
PIONEER MAGNETICS PM3400C-10P: 1kW high-power upgrade for heavy loads.
PIONEER MAGNETICS RCS-1K: Remote control system for multi-module synchronization.
PIONEER MAGNETICS EMC-20: EMI filter kit for MIL-STD-1275 compliance.
PIONEER MAGNETICS HSC-600: Heat sink assembly for forced-air cooling at >70°C.
Installation and Maintenance
Pre-installation preparation: Verify input wiring (L/N/PE) with 16 AWG minimum. Use twisted-pair shielded cables for analog control signals. Ensure chassis grounding resistance ≤0.1 Ω.
Maintenance recommendations: Calibrate output voltage quarterly with 6½-digit multimeter. Monitor thermal derating beyond 60°C ambient. Replace electrolytic capacitors every 7 years in 24/7 operation. Clean convection fins annually with non-conductive brush.
