Description

The FOXBORO FBMSVH is a SIL 3-certified vibration monitor module within Schneider Electric’s Triconex® safety system, engineered for critical machinery protection in high-risk industrial processes. This specialized safety instrumented function (SIF) module continuously analyzes signals from accelerometers and proximity probes to detect hazardous mechanical conditions – including bearing failures, imbalance, misalignment, and resonance in rotating equipment. As part of the Triconex TMR (Triple Modular Redundant) architecture, the FBMSVH processes three independent sensor channels, performing continuous voting to eliminate false trips while ensuring fail-safe shutdowns when genuine threats exceed programmed thresholds.

Designed for integration with Foxboro’s Distributed Control Systems (DCS), the module provides dynamic vibration analysis with 12-bit resolution across 0.5 Hz to 10 kHz frequency ranges. It supports industry-standard sensor inputs (4-20mA velocity, eddy current displacement) while executing real-time Fast Fourier Transforms (FFT) for spectral diagnostics. The FOXBORO FBMSVH delivers unparalleled reliability in turbine/compressor protection systems, with a hardware fault tolerance (HFT=1) that meets IEC 61508 SIL 3 requirements. Its ruggedized design withstands extreme electrical noise environments typical in power generation and offshore platforms, making it indispensable for preventing catastrophic machinery damage and unplanned downtime.

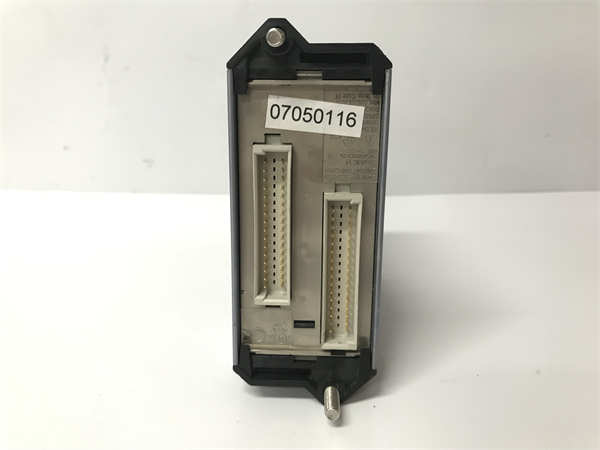

FOXBORO FBMSVH

Technical Specifications

Main Features and Advantages

TMR Safety Architecture: The FOXBORO FBMSVH employs triple-channel processing where sensor signals are independently digitized and analyzed. A hardware voter compares results across all three paths – only consistent fault indications trigger shutdowns. This architecture achieves >99.99% diagnostic coverage for dangerous failures, reducing spurious trips by 90% compared to simplex systems. Automatic channel synchronization compensates for sensor drift.

Advanced Diagnostic Capabilities: Beyond basic amplitude monitoring, the module performs continuous FFT analysis to identify specific failure modes. Preconfigured algorithms detect oil whirl, blade pass frequency, and sub-synchronous resonances. Built-in notch filters suppress process noise, while ISO 10816-compliant enveloping extracts bearing defect signatures. All spectral data is timestamped and accessible via Foxboro Control Advisor software for predictive maintenance.

Seamless System Integration: The module integrates natively with Foxboro I/A Series DCS through high-speed control network (CNET) connections. Configuration templates for common assets (centrifugal compressors, steam turbines) reduce engineering time by 70%. Hot-swappable design allows maintenance without process interruption. The FBMSVH also supports HART communication for smart sensor diagnostics and calibration verification.

Application Field

The FOXBORO FBMSVH is vital for machinery protection in energy and process industries. In combined-cycle power plants, it monitors gas turbine axial vibration and generator eccentricity, triggering emergency stops before catastrophic rubs occur. For offshore platforms, the module protects hypercompressors in LNG trains by detecting reciprocating compressor valve failures through high-frequency acceleration analysis.

In petrochemical facilities, the FBMSVH safeguards ethylene cracker turbocompressors against surge-induced damage using phase-angle monitoring. Its SIL 3 certification enables deployment as the primary safety system for centrifugal pumps handling hazardous fluids. Water treatment plants utilize the module for cavitation detection in high-head pumps. The corrosion-resistant construction makes it suitable for paper mill turbine applications where chemical exposure is prevalent.

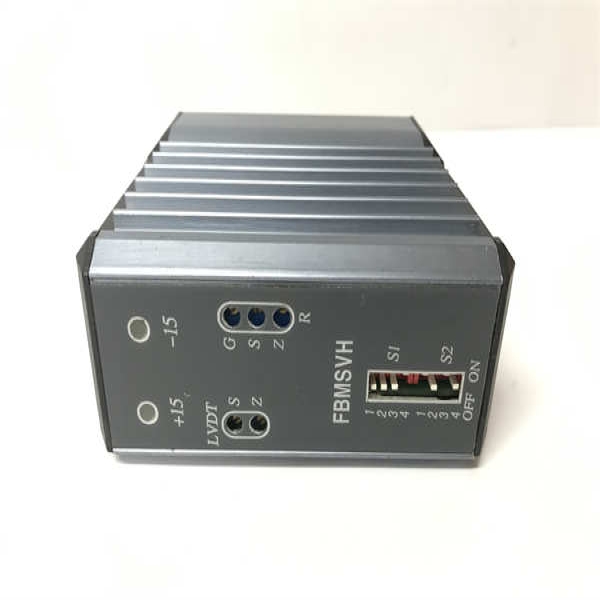

FOXBORO FBMSVH

Related Products

Triconex 3700A: Main processor executing safety logic for FBMSVH trip signals.

Foxboro P0926GH: Proximity probe system compatible with FBMSVH inputs.

FBM242: Analog input module for non-SIL vibration monitoring in Foxboro DCS.

Triconex 8312N: Termination module for sensor wiring.

Foxboro CPL410: Chassis power supply for vibration monitor racks.

FBMSF: Speed/frequency monitor module complementing FBMSVH.

Foxboro I/A Series AW51F: Workstation for vibration diagnostics.

Triconex 4000103-510: Redundant power supply for safety systems.

CP260B: Communication processor linking FBMSVH to DCS.

Installation and Maintenance

Pre-installation preparation: Verify sensor calibration certificates match API 670 standards. Use double-shielded coaxial cables (Belden 9221 or equivalent) routed separately from AC power lines. Ensure DIN rail mounting surface is vibration-isolated (<0>

Maintenance recommendations: Quarterly verification of sensor gap voltages and cable insulation resistance. Annual calibration of entire measurement chain using portables simulators. Monitor FOXBORO FBMSVH diagnostic registers for increasing noise floors or declining signal-to-noise ratios. Replace modules showing persistent “Channel Mismatch” alarms after verifying sensor health. Maintain environmental seals on connectors in corrosive atmospheres. Update firmware during planned turnarounds to implement safety enhancements.
