Description

The SCHNEIDER PC-E984-685 is a high-performance CPU module for Modicon Quantum automation systems, designed for mission-critical process control and safety applications. As the central processing unit in Schneider Electric’s flagship PLC platform, this 1.9 MHz 486-class processor delivers deterministic execution of complex control strategies across manufacturing, energy, and infrastructure sectors. The PC-E984-685 features 4MB user memory with battery backup, supporting up to 16K I/O points and executing ladder logic, structured text, and function block diagrams per IEC 61131-3 standards. Its dual-redundant architecture enables hot standby configurations with automatic switchover (<50ms>

Engineered for harsh industrial environments, the module operates at -40°C to +70°C with 95% non-condensing humidity tolerance and 5g vibration resistance. Native integration includes a Modbus Plus (MB+) port for field device networking, Ethernet TCP/IP for SCADA connectivity, and a serial port for programming. The SCHNEIDER PC-E984-685 supports SIL 2 safety functions when paired with Quantum safety I/O modules, making it ideal for fire/gas detection, turbine control, and emergency shutdown systems. Its backward compatibility with legacy Quantum modules provides investment protection while enabling phased modernization of automation assets.

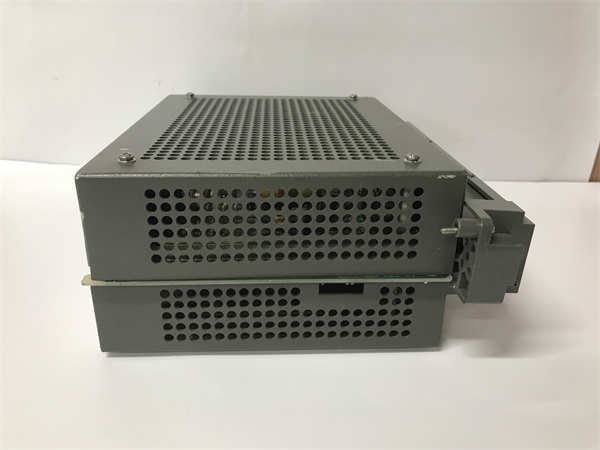

SCHNEIDER PC-E984-685

Technical Specifications

Main Features and Advantages

Deterministic Performance: The SCHNEIDER PC-E984-685 executes control algorithms with sub-millisecond precision using patented task scheduling. Its dual-port RAM architecture allows simultaneous processor communication and I/O scanning, eliminating bus contention delays. Critical processes benefit from dedicated watchdog timers that enforce <100ms>

Fault-Tolerant Architecture: When configured in Hot Standby pairs, primary and secondary CPUs maintain continuous synchronization via fiber-optic links. Automatic failover occurs during power loss, network disruption, or processor fault without process interruption. The “Control-Fail-Safe” mode preserves outputs during switchover events.

CyberSecure Design: Integrated security features include password-protected firmware updates, role-based access control, and communication port lockdown. Conformal-coated circuitry withstands conductive dust and corrosive atmospheres. Schneider’s EcoStruxure Cyber Advisor provides vulnerability monitoring for the PC-E984-685, detecting configuration drifts or unauthorized access attempts.

Application Field

The SCHNEIDER PC-E984-685 dominates critical infrastructure control, managing water treatment plants with multi-stage filtration logic and pump station sequencing. In oil refineries, it coordinates crude distillation unit safety interlocks while interfacing with Triconex ESD systems via Modbus TCP. Power utilities deploy it for substation automation, executing load-shedding algorithms during grid instability.

Manufacturing applications include automotive paint shop environmental controls (temperature/humidity PID loops) and pharmaceutical batch processes requiring 21 CFR Part 11 compliance. The module’s SIL 2 capability enables burner management systems in furnaces and boiler protection in thermal power plants. Its wide temperature tolerance makes it suitable for outdoor installations like LNG terminal custody transfer systems.

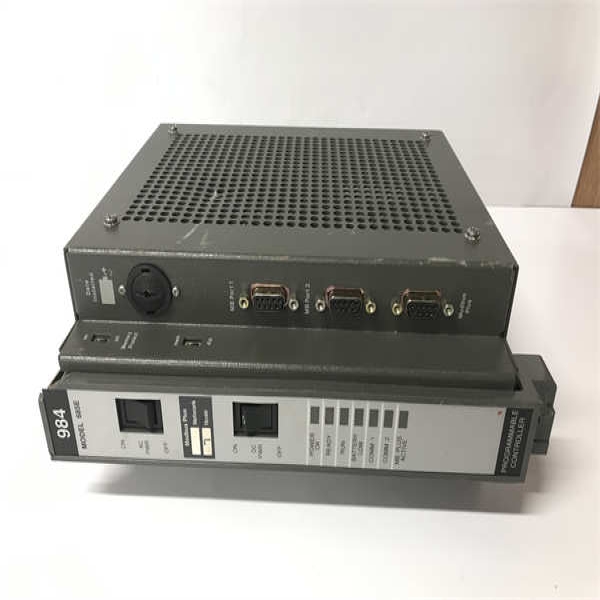

SCHNEIDER PC-E984-685

Related Products

140 CPS 214 00: Redundant power supply for HSBY configurations

140 NOE 771 00: Ethernet communication module

140 ACO 020 00: Analog output module (4-20mA)

140 DDO 353 00: Diagnostic digital output module

BMX P34 3000: Remote I/O drop interface

140 XBP 016 00: Modbus Plus extension cable

140 CRP 931 00: Rack power distribution module

140 CPU 651 60: Lower-tier Quantum CPU

140 SAO 841 00: SIL 2 analog output module

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (140 XBP xxx 00 series). Discharge static electricity before handling. Configure MB+ termination resistors (120Ω) and assign unique network addresses. Pre-load firmware using Concept or Unity Pro software. Ensure adequate ventilation space above/below the SCHNEIDER PC-E984-685 module.

Maintenance recommendations: Monitor battery status quarterly via %S18 system bit. Replace batteries proactively at 8-year intervals. Clean heatsink fins annually with low-pressure air. Maintain firmware currency through Schneider’s lifecycle portal. When replacing modules, preserve configuration using memory cartridges (PCMCIA). For HSBY systems, perform annual failover tests during planned outages.
