Description

The FOXBORO FBMSVL is a legacy Multifunction Station Video Logic module designed for Foxboro’s I/A Series distributed control systems (DCS). Serving as a critical operator interface and control processing node, this module combines high-resolution video generation with local logic execution capabilities. Engineered for 24/7 operation in demanding process environments, the FOXBORO FBMSVL delivers real-time process visualization through dedicated VGA output while simultaneously executing regulatory control strategies. Its ruggedized construction withstands industrial electrical noise and temperature fluctuations, making it a cornerstone in mid-1990s to early-2000s control room installations. The module integrates with Foxboro’s proprietary VME-based chassis, supporting dual-redundant operation for critical applications like refining and power generation.

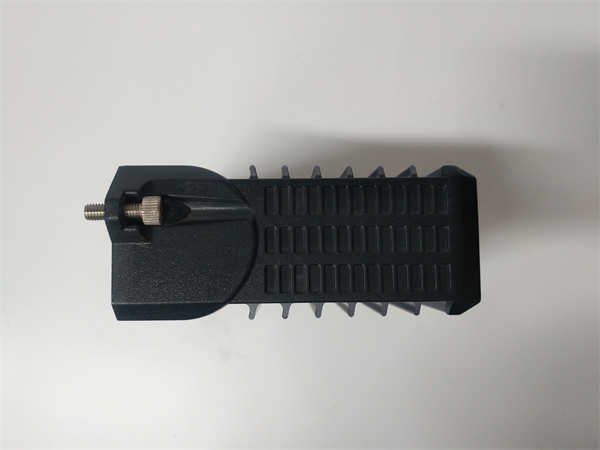

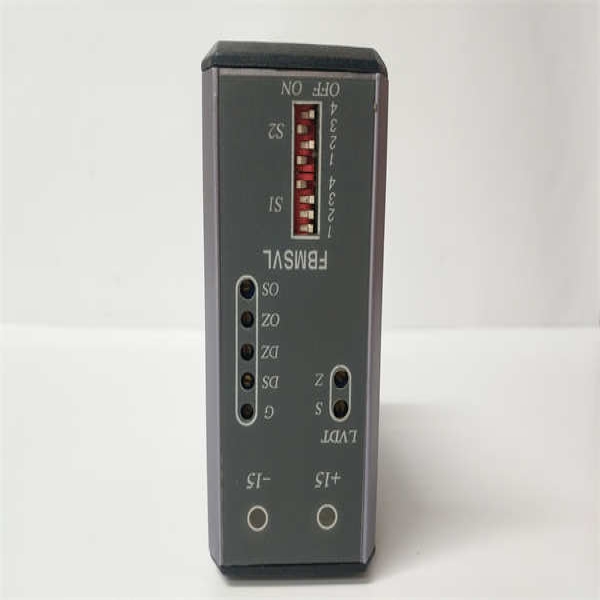

FOXBORO FBMSVL

Technical Specifications

Main Features and Advantages

Integrated Control & Visualization: The FOXBORO FBMSVL uniquely combines operator workstation functionality with local regulatory control execution, eliminating separate graphics processors. Its dedicated graphics controller renders complex P&ID diagrams with sub-second refresh rates, while concurrently executing PID loops and sequence logic.

Robust Industrial Design: Featuring conformal-coated circuit boards and EMI-shielded enclosures, the module withstands severe electrical noise environments common in switchgear rooms. The solderless backplane connector system ensures vibration-resistant connectivity, maintaining signal integrity in turbulent applications like compressor stations.

Legacy System Integration: Native compatibility with Foxboro FBM I/O series allows direct interfacing with thousands of field points without protocol conversion. The FOXBORO FBMSVL supports Control Software (CPS) version 8.x for seamless strategy migration from older Foxboro systems.

Redundancy Support: Dual modules can operate in hot-standby configuration with automatic failover triggered by watchdog timer. Automatic database synchronization ensures<1>

Application Field

The FOXBORO FBMSVL excels in continuous process industries requiring reliable operator interfaces:

Oil Refining: Serves as primary operator console for crude distillation units, integrating temperature profiles and safety shutdown status on single displays while executing furnace control logic.

Chemical Processing: Coordinates batch reactor sequences with real-time trend visualization for polymerization processes, maintaining recipe consistency across shifts.

Power Generation: Monitors turbine ramp rates and steam drum levels in combined-cycle plants, with embedded logic for auto-synchronization.

Pulp & Paper: Controls digester temperature cascades while displaying fiber consistency trends across multiple production lines.

Water Treatment: Manages filter backwash sequences with animated process graphics showing valve positions and turbidity levels.

FOXBORO FBMSVL

Related Products

CP40: Entry-level control processor for non-critical loops

FBM237: 8-channel analog input module for temperature monitoring

P0916YZ: Redundant power supply for VME chassis

FBMSVP: Successor model with enhanced graphics memory

I/A Series Workstation: Modern Foxboro Evo operator interface

FCP280: Current-generation control processor

FBM242: High-density digital output module

Installation and Maintenance

Pre-installation preparation: Verify VME chassis slot compatibility and reserve adjacent slot for redundancy. Discharge static using wrist strap before handling the FOXBORO FBMSVL. Pre-load control strategy via PCMCIA card using Foxboro CPS engineering station. Ensure chassis grounding resistance<1>

Maintenance recommendations: Monitor heat sink temperature monthly; sustained >55°C requires airflow improvement. Clean air filters quarterly using low-suction vacuum. Rotate redundant modules annually to equalize component aging. Maintain configuration archives on magneto-optical disks. Replace cooling fans every 5 years or 40,000 operating hours.
