Description

The GE SR489-P5-HI-A20-E is a microprocessor-based generator protection relay engineered for comprehensive safeguarding of hydro, steam, and gas turbine generators up to 999 MVA. As part of GE’s Multilin 489 series, this advanced device integrates 32-bit DSP processing with dual redundant protection algorithms to detect faults including stator ground faults, loss-of-field conditions, reverse power flow, and out-of-step instability. The GE SR489-P5-HI-A20-E features configurable I/O (12 analog inputs, 16 programmable contacts) and supports multiple communication protocols for seamless integration into plant DCS systems. Its robust NEMA 4X enclosure withstands harsh substation environments while maintaining precise metering accuracy of ±0.5% for critical parameters like VAR flow and shaft torque. Designed for ANSI/IEEE C37.102 compliance, this relay provides generator owners with adaptive protection settings that automatically adjust to synchronization status and temperature conditions.

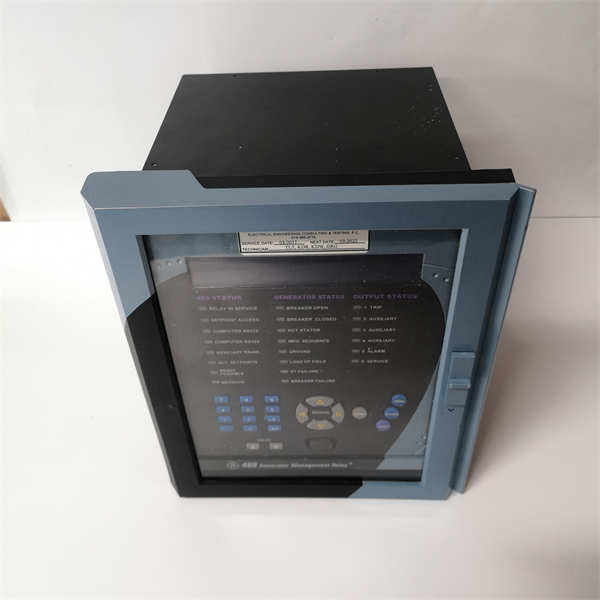

GE SR489-P5-HI-A20-E

Technical Specifications

Main Features and Advantages

Adaptive Protection Logic: The GE SR489-P5-HI-A20-E dynamically adjusts protection curves based on real-time generator temperature (RTD inputs) and synchronization status, preventing nuisance trips during startup/shutdown. Its patented torque-based out-of-step (78) detection responds 40% faster than conventional impedance relays.

Advanced Fault Analysis: Captures high-resolution oscillography with 128 samples/cycle, enabling precise root-cause analysis of complex faults. The integrated sequence-of-events recorder timestamps 256 events with 1ms resolution for compliance reporting.

Cybersecurity Hardened: Dual-factor authentication and role-based access control comply with NERC CIP standards. Secure boot firmware with signed code validation prevents unauthorized modifications. Communication channels support TLS 1.3 encryption and MACsec for IEC 62351 compliance.

Intelligent Diagnostics: Continuously monitors CT/VT health with saturation detection algorithms. Predicts insulation degradation through third-harmonic trend analysis. Self-validates protection algorithms via redundant processing paths.

Application Field

The GE SR489-P5-HI-A20-E protects critical generation assets across multiple sectors:

Power Plants: Provides main protection for 500MW+ steam turbines, coordinating with excitation control and synchronizing systems. Detects stator ground faults through 100% coverage 3rd harmonic monitoring.

Hydroelectric Facilities: Prevents turbine runner damage by detecting reverse power flow during load rejection events. Customizable underfrequency (81U) settings accommodate hydraulic inertia variations.

Industrial Cogeneration: Secures gas turbine generators against out-of-synchronism transfer when islanding from the grid. Integrates with load-shedding schemes via programmable logic.

Offshore Wind Farms: Monitors collector bus synchronization for floating platforms using motion-compensated frequency tracking. Withstands salt fog exposure (ISO 9227 C5-M).

Pulp & Paper Mills: Prevents prime mover damage during process upsets using shaft torque monitoring (60Hz torsional analysis).

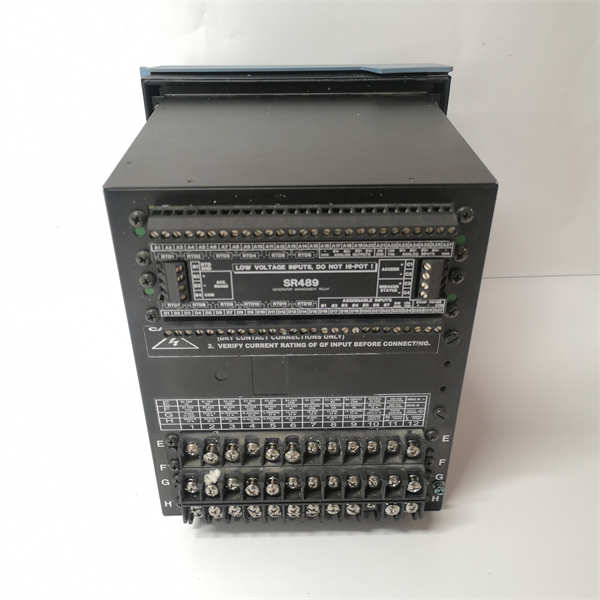

GE SR489-P5-HI-A20-E

Related Products

SR750: Feeder management relay for generator step-up transformers

UR L90: Line differential relay for plant interconnection protection

EX2100 Excitation Control: Integrated voltage regulation system

IS200 I/O Modules: Expansion for Mark* control systems

C60 Breaker Relay: Generator circuit breaker protection

F650 Controller: Synchronizing and load-sharing module

B30 Bus Relay: Backup protection for station buses

L30 Line Relay: Utility tie-line protection

Installation and Maintenance

Pre-installation preparation: Verify CT/VT ratios and burden compatibility using GE Enervista SR Setup software. Disconnect all AC/DC power before mounting the GE SR489-P5-HI-A20-E. Ensure proper grounding (≤0.1Ω to station grid) and maintain 100mm clearance for heat dissipation. Pre-configure settings groups for different operating modes.

Maintenance recommendations: Perform annual injection testing with secondary verification of protection elements. Download oscillography after grid disturbances. Monitor relay “health index” via IEC 61850 reports monthly. Update firmware during planned outages using cryptographically signed packages only. Replace backup battery every 5 years.
