The SCANLAB INTELLISCANDE14-1064NM represents a breakthrough in intelligent laser scanning technology, combining high-performance galvanometer scanners with an embedded PILAS® drive controller in a single compact unit. Designed specifically for 1064 nm wavelengths, this system excels in precision material processing applications requiring dynamic beam control. As part of SCANLAB’s “INTELLISCAN” series, the INTELLISCANDE14-1064NM integrates position feedback and thermal compensation directly into the scan head, eliminating traditional encoder dependencies while maintaining micron-level accuracy.

Its technical architecture enables seamless integration with industrial automation environments, functioning as a smart peripheral in laser machining cells. The SCANLAB INTELLISCANDE14-1064NM transforms raw laser energy into controlled spatial patterns for cutting, welding, marking, and additive manufacturing. By embedding real-time trajectory correction and thermal drift compensation, it significantly reduces calibration overhead and extends maintenance intervals—critical for high-uptime production systems.

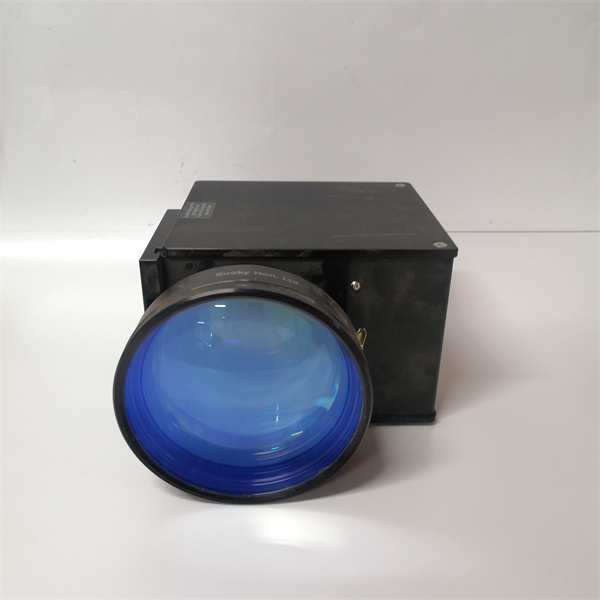

SCANde INTELLISCANDE14-1064NM SCANLAB

Core Advantages and Technical Highlights

Closed-Loop Precision Without Encoders: Utilizing SCANLAB’s patented PILAS® technology, the INTELLISCANDE14-1064NM achieves <35>

Dynamic Focus Control: Integrated Z-axis compensation enables real-time focal plane adjustments during high-speed motion, essential for processing contoured surfaces in battery welding or 3D printing. The 24-bit DAC controller supports vector acceleration up to 500 g.

Thermal Stability: Proprietary coil design and temperature-controlled baseplate maintain ±5 μrad/K thermal drift—critical for micron-tolerance applications like solar cell scribing. Optional Peltier cooling extends operation under sustained high-power loads.

Industrial Connectivity: Native EtherCAT support enables deterministic synchronization with PLCs and robotics (≤1 μs jitter). The SCANLAB INTELLISCANDE14-1064NM features automatic network configuration and collision detection, simplifying integration with Beckhoff, Siemens, or B&R controls.

Collision Resilience: Redesigned torsion springs and shock-absorbing mounts withstand 100 g mechanical shocks, minimizing downtime in robotic workcells.

Typical Application Scenarios

The SCANLAB INTELLISCANDE14-1064NM dominates precision laser processes demanding speed and sub-millisecond response:

EV Battery Manufacturing: High-speed welding of copper/tab connections with closed-loop seam tracking and splash suppression.

Medical Device Marking: FDA-compliant UDI (Unique Device Identification) engraving on curved implant surfaces.

Silicon Photovoltaics: P1/P2/P3 scribing of thin-film solar cells at 5 m/s with <10>

Aerospace Additive Manufacturing: In-situ laser remelting during DED (Directed Energy Deposition) builds for stress reduction.

Electronics Micromachining: Flex PCB cutting and via drilling with 20 μm spot size control under nitrogen atmospheres.

In automated production, the INTELLISCANDE14-1064NM enables “flying mark” operations—processing moving conveyor parts without stopping—saving 15–30% cycle time in automotive part marking.

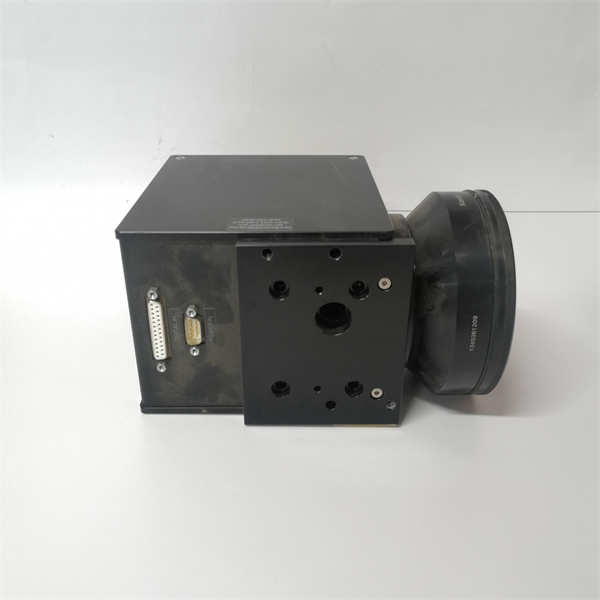

SCANde INTELLISCANDE14-1064NM SCANLAB

Related Model Recommendations

INTELLISCANDE20-1064NM: Larger Ø20 mm mirrors for 120 x 120 mm fields at 1064 nm.

INTELLISCANDE14-515NM: Green wavelength variant (515 nm) for copper processing.

excelliSCAN II: Traditional encoder-based scanner for legacy system upgrades.

RTC6: Dedicated scan controller for complex trajectory planning with the INTELLISCANDE14-1064NM.

SCANaHEAD: Compact scan heads for robotic arm integration.

POWERaSCAN: High-power variant (500 W CW) for deep welding.

SCANgine: Software suite for calibration and thermal monitoring.

Installation, Commissioning and Maintenance Instructions

Installation Preparation: Mount the INTELLISCANDE14-1064NM on a vibration-isolated base using M4 screws (torque ≤0.8 Nm). Ensure ambient temperature stability (±2°C). Laser alignment requires SCANlab’s LASOS beam diagnostics tool. Use grounded shielded cables for all signals; maintain 10 cm clearance from motor drives.

Maintenance Protocol: Quarterly cleaning of exit window with anhydrous ethanol. Monitor PILAS® health metrics via SCANgine software—degradation beyond 15% triggers recalibration. Replace air filters (if IP64 version) biannually. For pulsed lasers >50 kHz, inspect mirror mounts annually for micro-fretting.
