Description

The ABB XVC767AE102 3BHB007209R0102 is a high-precision Servo Drive Interface Module for ABB’s AC 800M PM866 controller platform, engineered for advanced motion control applications requiring nanosecond-level synchronization. As part of ABB’s Extended Automation System 800xA, this module integrates seamlessly with third-party servo drives (e.g., Yaskawa, Bosch Rexroth) to coordinate multi-axis systems in robotics, CNC machinery, and high-speed packaging lines. The XVC767AE102 translates controller commands into real-time SERCOS III or EtherCAT motion profiles while providing closed-loop feedback via incremental/absolute encoders. With support for up to 32 axes per module and ≤100µs cycle times, it enables complex interpolation and electronic gearing operations. The ABB XVC767AE102 features dual-redundant fiber-optic interfaces and dynamic auto-tuning to maintain positioning accuracy under variable loads, making it indispensable for semiconductor manufacturing and automotive assembly processes where micron-level precision is critical.

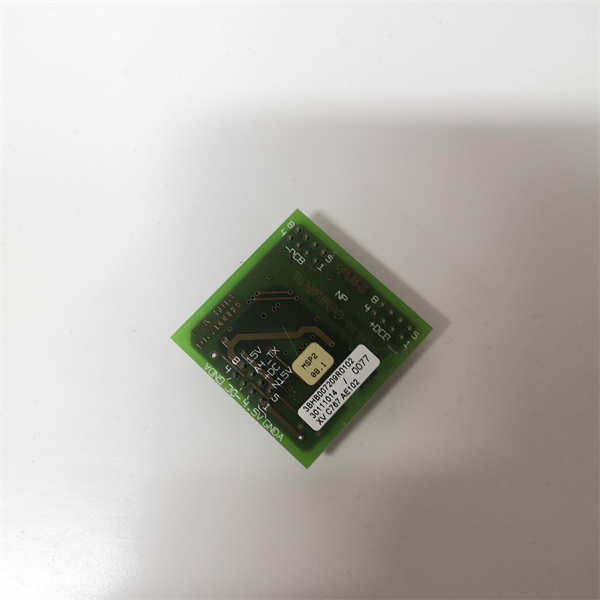

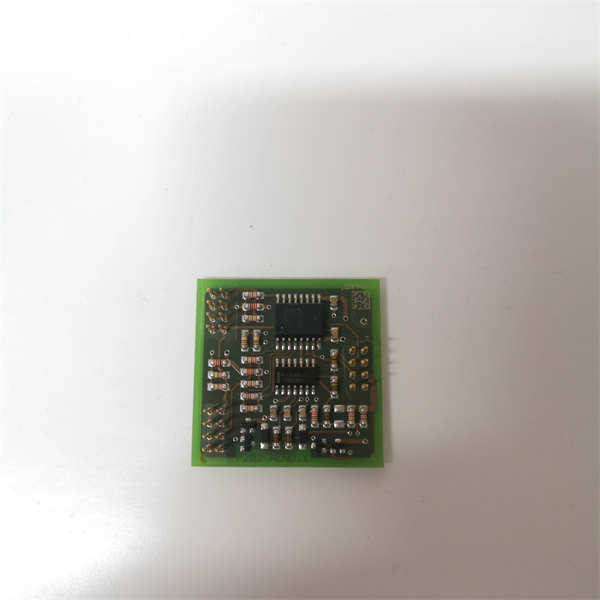

ABB XVC767AE102 3BHB007209R0102

Technical Specifications

Main Features and Advantages

Ultra-Precise Motion Synchronization: The ABB XVC767AE102 achieves <1>

Multi-Vendor Drive Integration: Uniquely supports over 30 servo drive brands via standardized PLCopen motion function blocks. Automatic parameter mapping reduces commissioning time by 60% compared to gateways.

Fault-Tolerant Architecture: Dual-ring fiber topology with ≤5 ms redundancy switchover ensures continuous operation during cable breaks. Built-in predictive diagnostics monitor motor temperature, torque ripple, and backlash compensation.

Cyber-Secure Configuration: Implements IEC 62443 security standards with signed firmware updates and role-based access control. Motion trajectories remain encrypted during transmission to prevent tampering.

Scalable Performance: Distributed processing offloads trajectory calculations from the main controller. Supports adaptive feedforward control for nonlinear systems like winding tensioners.

Application Field

The ABB XVC767AE102 dominates precision motion sectors where sub-millisecond synchronization is non-negotiable. In semiconductor fabrication, it coordinates wafer steppers and wire bonders with 10nm repeatability, leveraging vacuum-rated operation for deposition chambers. Automotive OEMs deploy the module for synchronized robotic painting cells with 0.01mm path accuracy.

For packaging machinery, it enables seamless cam profiling between servo-driven form-fill-seal units and rotary cutters at 300 packages/minute. In printing, the XVC767AE102 maintains register control across 12-color presses via electronic line shafting. Renewable energy manufacturers use it for blade grinding robots with force-controlled abrasive heads. The module’s SERCOS III capability allows deterministic control of hydraulic axes in metal stamping presses with 5-ton payloads.

ABB XVC767AE102 3BHB007209R0102

Related Products

PM866 3BSE050198R1: Primary controller for XVC767AE102 integration

HDS01.1N-W0150-A-07-NNNN: ABB servo drive for direct module interfacing

CI871 3BSE056767R1: Ethernet/IP interface for upstream communication

SD822 3BSE020587R1: Operator station for motion visualization

TB840 3BSE020884R1: Terminal board for encoder feedback wiring

PP885 3BSE042235R1: Redundant power supply for critical motion racks

DSQC679: Remote I/O module for auxiliary sensor integration

Installation and Maintenance

Pre-installation preparation: Verify servo drive compatibility using ABB’s DriveCom Manager tool. Preload motion configuration via Control Builder M. Ensure fiber-optic cable bend radius >30mm. Establish equipotential bonding between drives and module chassis.

Maintenance recommendations: Monitor synchronization error counters monthly. Replace SFP transceivers if BER exceeds 10⁻¹². Calibrate encoder offsets annually using Auto-Tune wizard. Maintain 50mm clearance for heat dissipation around the ABB XVC767AE102. Always discharge drive capacitors before servicing.
