Description

The Bently Nevada 1900/65A-00-04-01-00-00 is a high-reliability proximity probe system engineered for critical machinery vibration and position monitoring in demanding industrial environments. As part of Baker Hughes’ flagship 1900 Series, this assembly combines an eddy-current transducer, extension cable, and preamplifier to deliver uncompromised measurement of shaft displacement, eccentricity, and radial vibration in turbines, compressors, and other rotating assets. The 1900/65A-00-04-01-00-00 features a ruggedized 8mm diameter probe with –200 mV/mil sensitivity (±5%), optimized for detecting sub-micron dynamic motion changes while rejecting electrical interference. Its military-grade coaxial cabling and environmental sealing (IP67) withstand oil immersion, steam exposure, and high EMI zones. Fully compatible with Bently Nevada’s 3500 monitoring systems, this solution enables predictive maintenance by identifying unbalance, misalignment, and bearing wear before catastrophic failures occur.

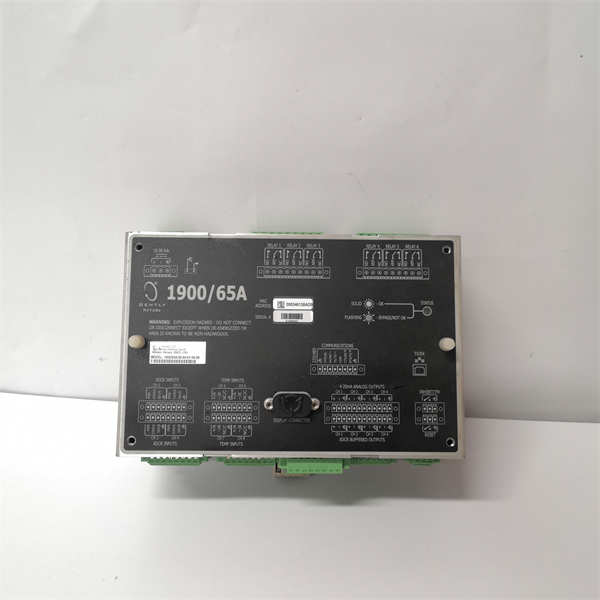

BENTLY 1900/65A-00-04-01-00-00

Technical Specifications

Main Features and Advantages

Extreme Environment Resilience: The 1900/65A-00-04-01-00-00’s hermetically sealed probe withstands immersion in lubricants and 100% humidity. Hastelloy®-sheathed cables resist H₂S corrosion in oil refineries.

Interference Immunity: Triple-shielded coaxial design rejects 60 V/m RF noise (per EN 61000-4-3), ensuring signal integrity near VFDs. Ground loop isolation prevents false triggers.

Plug-and-Play Integration: Pre-calibrated at factory to ±3% sensitivity tolerance. Compatible with Bently Nevada 3300/3500/3700 monitors without recalibration.

Fail-Safe Diagnostics: Continuous cable integrity monitoring detects insulation breakdown or connector corrosion. Gap voltage trending reveals bearing wear months in advance.

Safety Compliance: ATEX/IECEx certification enables installation in hazardous zones (Gas Group IIC). Meets API 670 5th Edition for machinery protection systems.

Application Field

The 1900/65A-00-04-01-00-00 is indispensable for mission-critical assets:

Power Generation: Monors steam turbine shaft eccentricity during startup to prevent rub-induced failures. Detects generator stator movement at 0.025mm resolution.

Oil & Gas: Tracks centrifugal compressor shaft displacement in offshore platforms. Withstands sour gas environments (NACE MR0175 compliant).

Petrochemical: Monitors reactor feed pump vibration in ethylene crackers. Survives steam quench cycles up to 177°C.

Hydroelectric: Measures hydraulic turbine bearing wear in flooded environments.

Metals Industry: Detects roll stack misalignment in hot strip mills despite scale buildup.

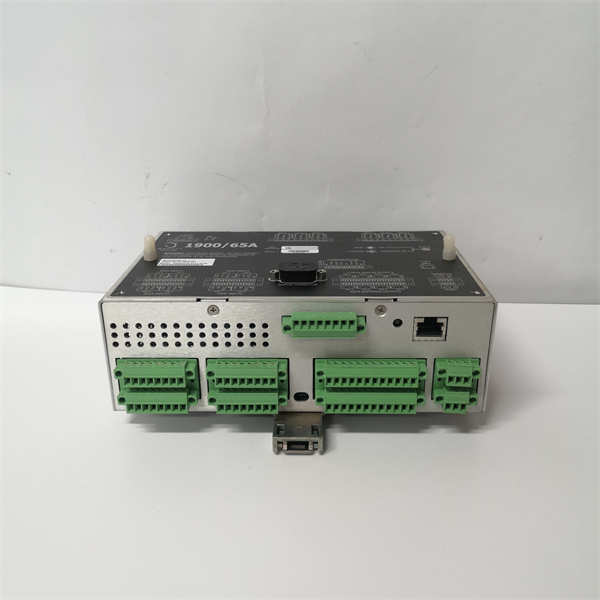

BENTLY 1900/65A-00-04-01-00-00

Related Products

Bently Nevada 330104-00-05-10-02-00: 9 mm probe for larger shafts

Bently Nevada 3500/42M: Dual-channel vibration monitor

Bently Nevada 1900/35-01-00: 5 m high-temp extension cable

Bently Nevada 128229-01: Proximitor® driver (power supply)

Bently Nevada TK-3E: Calibration tester

Installation and Maintenance

Pre-installation preparation: Verify target material conductivity (>1.5 mS/m). Mount probe perpendicular to shaft within 5°. Route cables away from power lines (>300 mm separation). Ground shield at monitor end only.

Maintenance recommendations: Quarterly gap voltage checks (±0.5 V tolerance). Annual insulation resistance tests (>100 MΩ at 500 VDC). Replace probes showing sensitivity drift >±3%. Never use silicone sealants near the 1900/65A-00-04-01-00-00’s threads.
