Description

The FOXBORO FBM230 P0926GU is a high-density 16-Channel Analog Input Module designed for the FBM200 series within Foxboro’s (a Schneider Electric company) I/A Series Distributed Control System (DCS). Engineered for precision process monitoring in harsh industrial environments, this module converts field-level signals (4–20 mA, 0–10 V DC) from sensors like RTDs, thermocouples, and pressure transmitters into high-resolution digital data. The FBM230 P0926GU features channel-to-channel isolation (>250 V AC) and onboard signal conditioning to eliminate ground loops while maintaining ±0.05% FS accuracy across its full operating temperature range. Its hot-swappable design enables maintenance without system shutdown, and dual redundant Ethernet interfaces ensure seamless integration with Foxboro’s Control Processors (CP60/CP70). The module’s patented drift-compensation algorithm auto-calibrates during operation, making it indispensable for critical applications in refining, power generation, and chemical processing where measurement integrity directly impacts safety and efficiency.

FOXBORO FBM230 P0926GU

Technical Specifications

Main Features and Advantages

Ultra-High Channel Density: Sixteen isolated inputs in single-slot footprint reduce cabinet space by 40% versus legacy systems. Each channel independently configurable for voltage/current/RTD/TC via P0926GU’s auto-sensing technology.

Intrinsic Safety Compliance: Integrated Zener barriers and optical isolation meet ATEX/IECEx standards for hazardous areas (Gas Group IIC). Eliminates need for external safety barriers.

Drift-Free Operation: Patented Continuous Background Calibration (CBC) compensates for thermal drift without interrupting signal acquisition. Maintains ±0.1% accuracy from -40°C to +70°C.

Cyber-Secure Architecture: Hardware-enforced role-based access control and signed firmware updates compliant with IEC 62443-3-3. Audit logs track all configuration changes.

Predictive Diagnostics: Monitors channel health (open wire, short circuit, out-of-range) and predicts calibration due dates via Foxboro’s Asset Management Center.

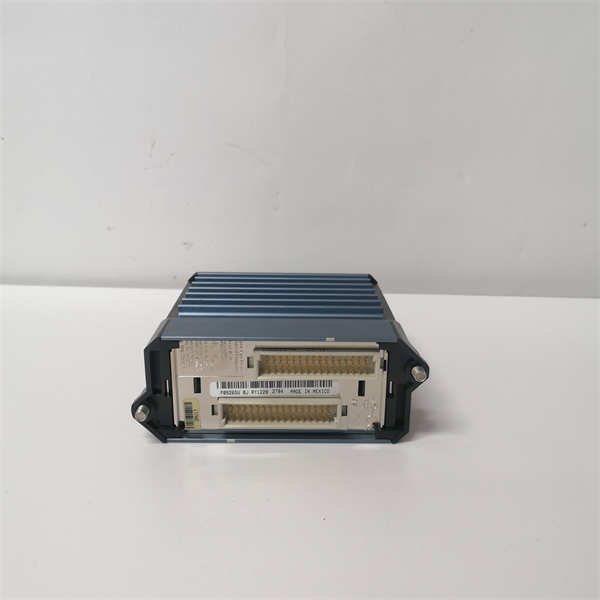

FOXBORO FBM230 P0926GU

Application Field

The FOXBORO FBM230 P0926GU excels in continuous process industries requiring uncompromised data integrity:

Oil & Gas Refining: Crude distillation column temperature profiling (Type K TC) and reactor pressure monitoring (4–20 mA) with SIL 2 safety compliance.

Chemical Processing: Batch reactor RTD (Pt100) inputs for exothermic reaction control and pH loop validation.

Power Generation: Feedwater flow measurement and steam header temperature monitoring in coal/gas-fired plants.

Pharmaceuticals: Clean-in-Place (CIP) system pressure/temperature tracking under GAMP 5 guidelines.

Water Treatment: Dissolved oxygen and turbidity analyzer integration with NAMUR NE43 diagnostics.

Related Products

FBM242 P0916YH: 16-channel analog output module for valve control

CP70 3CP302.60-1: Control processor for FBM230 P0926GU integration

FBM217 P0917CH: 32-point digital input module

XPSB10: Redundant power supply for FBM200 chassis

FBM204 P0926GV: 8-channel analog input (explosion-proof variant)

IACC55: Termination panel for field wiring

Installation and Maintenance

Pre-installation preparation: Verify chassis compatibility (FBM200 series only). Discharge static electricity before handling. Configure signal types via Foxboro Control Core software. Use shielded twisted-pair cables (Belden 8761 recommended) with shields grounded at single point.

Maintenance recommendations: Perform annual calibration verification using NIST-traceable standards. Monitor “Channel Health Index” in Asset Management Center – replace if >5% deviation. Clean terminal blocks with IPA every 24 months. Never hot-swap during firmware updates.
