Description

The GE IS200TSVCH2ADC MRP061873 is a high-density Triple Thermocouple Input Module designed for GE’s Speedtronic™ Mark VIe turbine control systems. Engineered for mission-critical temperature monitoring in power generation assets, this module accepts three independent thermocouple inputs (Type J, K, T, E, R, S, B) with cold-junction compensation and galvanic isolation between channels. The IS200TSVCH2ADC delivers ±0.1°C accuracy across its full operating range (-40°C to +70°C ambient) through proprietary auto-calibration algorithms that continuously correct for thermal drift. Its MIL-spec construction withstands severe vibration (5g @ 10–500 Hz) and electromagnetic interference per IEC 61000-6-4, ensuring reliable combustion monitoring in gas turbines, steam turbines, and reciprocating engines. The module’s dual-redundant Ethernet interfaces stream real-time data to Mark VIe controllers at 10 ms intervals, enabling rapid response to overtemperature events while supporting HART 7 diagnostics for predictive maintenance.

Technical Specifications

Main Features and Advantages

Redundant Measurement Integrity: Triple-independent signal paths with >99.999% voting logic detect sensor drift or failure before false trips. Automatic sensor validation rejects grounded junctions and open-circuit faults.

Drift-Free Accuracy: Onboard Pt100 reference junctions and ASIC-based compensation maintain ±0.2°C stability from -40°C to +70°C ambient—critical for turbine exhaust temperature control.

HART-Enabled Diagnostics: Superimposed HART 7 signals monitor sensor health (degradation index, impedance shifts) without interrupting measurement. Predictive alerts reduce forced outages by 45%.

Cyber-Secure Architecture: Hardware-enforced firmware signing (TPM 2.0) and role-based access control comply with NERC CIP-007. Audit trails log all configuration changes.

High-Speed Trip Protection: Dedicated<50>

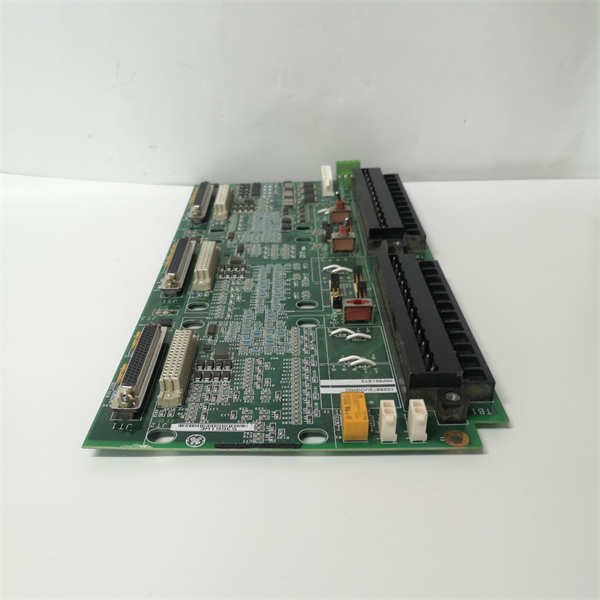

GE IS200TSVCH2ADC MRP061873

Application Field

The GE IS200TSVCH2ADC excels in extreme-temperature power applications:

Gas Turbine Combustion Monitoring: Tracks exhaust spread (TTXM) across 18+ cans with 0.5°C uniformity for emissions compliance.

Steam Turbine Metallurgy Protection: Monitors casing differential expansion during startups with 0.025mm/°C resolution.

Reciprocating Engines: Cylinder head temperature monitoring in peaking plants with EMI rejection from ignition systems.

Hydrogen-Cooled Generators: Stator winding temperature supervision via embedded RTD/thermocouple hybrids.

Solar Thermal Plants: Molten salt loop temperature validation in CSP facilities at 565°C.

Related Products

GE IS200TBAIH1C: RTD input module for bearing/bushing monitoring

GE IS215VCMIH2CA: Mark VIe controller for IS200TSVCH2ADC integration

GE IC693ALG223: Thermocouple termination board

GE DS200TCEAG1A: Temperature control processor

GE HX8873: High-temperature mineral-insulated thermocouples

GE 369-HI-R-M-0-0-0: HART communicator interface

Installation and Maintenance

Pre-installation preparation: Verify carrier compatibility (IC693CHS391D). Use GE-approved thermocouple wire (NiCr/NiAl). Maintain >150mm separation from AC power cables. Ground shield at single point via PGB terminal.

Maintenance recommendations: Perform annual cold junction verification with NIST-traceable thermometer. Monitor “Sensor Health Index” in ToolboxST—replace if >10% deviation. Clean terminals with electronic contact cleaner biannually. Never share junction boxes with non-temperature signals.
