Description

The GE IS200TSVCH2AED MRP246517 is an advanced Triple Redundant Thermocouple Input Module engineered for critical temperature monitoring in GE’s Speedtronic™ Mark VIe turbine control systems. This high-density module accepts three independent thermocouple inputs with galvanic isolation between channels, providing SIL 2-certified protection for gas/steam turbines, compressors, and combined-cycle power plants. The IS200TSVCH2AED features proprietary Auto-Zero calibration technology that maintains ±0.08°C accuracy across its full operating range (-40°C to +85°C ambient), even under extreme EMI conditions. With support for all major thermocouple types (J, K, T, E, R, S, B) and dual-redundant Ethernet communication, it delivers 10 ms update rates for rapid overtemperature response. The module’s robust construction withstands 5g vibration and integrates HART 7 diagnostics for predictive health monitoring of temperature sensors and field wiring.

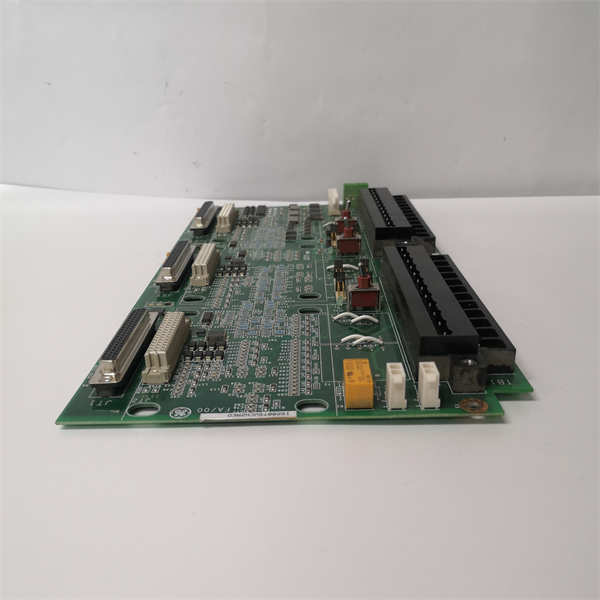

GE IS200TSVCH2AED MRP246517

Technical Specifications

Main Features and Advantages

Mission-Critical Redundancy: Triple-independent measurement paths with 2-out-of-3 voting logic prevent false trips during sensor degradation. Automatic Sensor Validation (ASV) detects grounded junctions and drift exceeding ±2°C within 15 seconds.

Ultra-Stable Performance: Onboard Pt1000 reference junctions and continuous background calibration maintain accuracy through -40°C to +85°C ambient swings. Drift remains below ±0.15°C over 5-year service intervals.

Predictive Maintenance Intelligence: HART 7 diagnostics monitor sensor impedance trends, connection corrosion, and insulation breakdown. Generates “Sensor Health Index” scores for proactive replacement planning.

Cyber-Hardened Design: TPM 2.0 secure boot with signed firmware blocks unauthorized modifications. Conforms to NERC CIP-007 for grid security.

High-Speed Trip Logic: Dedicated<25>

Application Field

The GE IS200TSVCH2AED dominates critical power generation applications:

Gas Turbine Combustion Control: Monitors exhaust gas temperature spread across 20+ combustion cans with 0.25°C uniformity for NOx compliance

Steam Turbine Startup Protection: Tracks rotor stress during thermal transients with 0.01°C resolution

Hydrogen-Cooled Generators: Supervises stator winding temperatures at 500 VAC common-mode noise rejection

Syngas Production: Measures reactor bed temperatures in coal gasification (Type S thermocouples at 1600°C)

Aeroderivative Turbines: Vibration-tolerant monitoring for mobile power units subjected to 5g forces

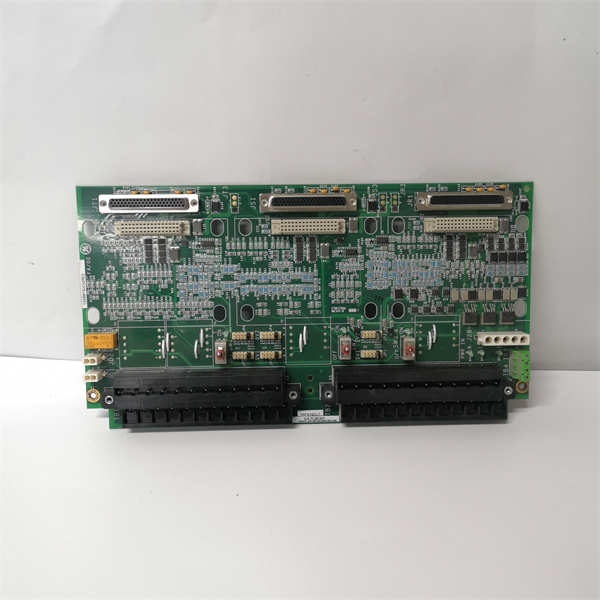

GE IS200TSVCH2AED MRP246517

Related Products

GE IS200TBAIH2CDC: Redundant RTD input module for bearing monitoring

GE IS215VCMIH2DB: Mark VIe controller with dual Ethernet ports

GE IC693ALG392: Thermocouple termination assembly

GE DS200DTAOG1A: Temperature alarm processor

GE HX8901: High-accuracy Type K mineral-insulated thermocouple

GE 369-HI-R-M-0-0-0: HART configurator tool

Installation and Maintenance

Pre-installation preparation: Verify carrier compatibility (IC693CHS392 or later). Use ANSI MC96.1 compliant thermocouple wire. Maintain >200mm clearance from VFD cables. Ground shields exclusively at PGB terminals.

Maintenance recommendations: Perform cold junction verification every 6 months using GE’s QuickCal handheld calibrator. Analyze “Sensor Degradation Rate” in ToolboxST monthly—replace sensors showing >1% quarterly drift. Clean terminals with non-residue contact cleaner annually. Never exceed 85% of thermocouple upper range limit.
