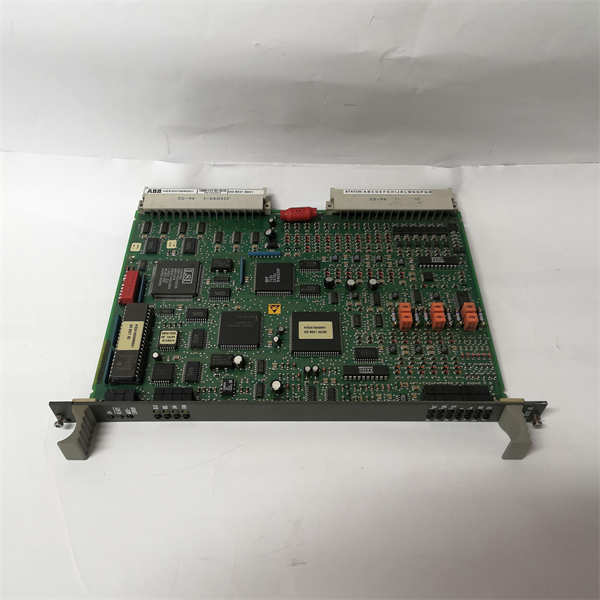

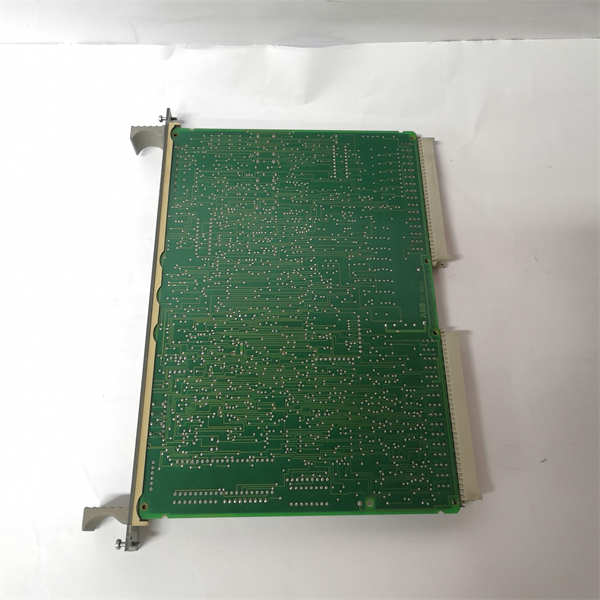

The ABB GDB021BE01 HIEE300766R0001 is a high-precision control interface board designed for ABB’s industrial drive systems, specifically engineered for the ACS 800 series. This module acts as the central nervous system for motor control, integrating signal processing, communication protocols, and safety functions to optimize variable-speed drive operations. As part of ABB’s modular drive architecture, the ABB GDB021BE01 HIEE300766R0001 enables seamless coordination between power electronics and higher-level control systems like PLCs or DCS. Its core value lies in translating complex motion commands into precise torque and speed regulation for critical industrial machinery. With ruggedized components rated for harsh environments, this board ensures operational continuity in applications ranging from heavy mining to precision manufacturing. The ABB GDB021BE01 HIEE300766R0001 supports advanced diagnostics through ABB’s DriveWindow software, reducing troubleshooting time while maximizing equipment lifespan.
ABB GDB021BE01 HIEE300766R0001
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | ABB GDB021BE01 HIEE300766R0001 |
| Manufacturer | ABB |
| Product Type | Drive Control Interface Board |
| Compatible Series | ACS 800 Industrial Drives |
| Input Voltage | 24 VDC ±10% (internal drive supply) |
| Communication Ports | RS-232, RS-485, Optional Fieldbus (Profibus/Modbus) |
| Digital Inputs | 6 (24 VDC, galvanically isolated) |
| Analog Inputs | 2 (0/4-20 mA or ±10 VDC configurable) |
| Relay Outputs | 3 (SPDT, 250 VAC/30 VDC, 5A) |
| Operating Temperature | 0°C to +55°C (derated above 40°C) |
| Humidity Tolerance | 5-95% non-condensing |
| Dimensions | 200 x 150 x 25 mm (WxHxD) |
| EMC Compliance | EN 61800-3, IEC 61000-6-4 |
| Safety Standards | UL 61800-5-1, CE Marked |
Main Features and Advantages
The ABB GDB021BE01 HIEE300766R0001 excels with its configurable I/O architecture, allowing engineers to customize signal routing for specific automation tasks without hardware modifications. Six isolated digital inputs accept diverse sensor signals while resisting ground loops – critical in electrically noisy plants. Its dual analog inputs support thermocouples and RTDs for motor temperature monitoring, with automatic scaling via ABB’s parameterization tools.
Integrated safety: Three relay outputs provide fail-safe control for emergency stops or equipment interlocks, with contact status feedback for diagnostic tracing. The board’s real-time processor executes ABB’s Direct Torque Control (DTC) algorithms with sub-millisecond precision, eliminating speed overshoot in sensitive applications like paper web tensioning. For maintenance efficiency, the ABB GDB021BE01 HIEE300766R0001 logs 200+ fault events with timestamps, enabling root-cause analysis through DriveWindow. Its conformal-coated PCB withstands conductive dust and humidity extremes, outperforming generic control cards in steel mills or cement plants.
Application Field
The ABB GDB021BE01 HIEE300766R0001 dominates in industries demanding precise motor management. In mining, it governs conveyor belt acceleration curves to prevent material spillage, while its vibration-tolerant design handles crusher motor control. For water treatment, the board optimizes pump efficiency through adaptive PID control, reducing energy costs by 15-30% in variable-flow systems.
Manufacturing lines leverage the ABB GDB021BE01 HIEE300766R0001 for synchronized multi-drive coordination in printing presses or extruders, maintaining tolerances within 0.1%. Offshore platforms utilize its corrosion-resistant construction for compressor control in saline environments. In HVAC, the module’s sleep-mode functionality cuts fan energy during low-demand periods. Food processing applications benefit from washdown-compatible variants that resist steam cleaning chemicals.
ABB GDB021BE01 HIEE300766R0001
Related Products
ABB ACS800-04: Main drive unit compatible with this interface board.
ABB SDCS-IOB-1: I/O extension module for additional signal points.
ABB NTAC-01: Ethernet adapter for industrial networking.
ABB NDPA-01: Profibus DP interface module.
ABB GDB021AE: Previous-gen interface board with reduced I/O.
ABB RDCU-02C: Drive control unit for higher-level integration.
Installation and Maintenance
Pre-installation preparation: Verify drive compatibility (ACS 800 series) and back up existing parameters using DriveWindow software. Discharge drive capacitors for 15 minutes before handling the ABB GDB021BE01 HIEE300766R0001. Use ESD wrist straps during board replacement.
Maintenance recommendations: Monitor board temperature quarterly via drive diagnostics (target <50>ABB GDB021BE01 HIEE300766R0001 to prevent communication interrupts. Replace electrolytic capacitors after 50,000 operational hours.
