Description

The GE HWA143-TDM-PMC-V20 is a high-redundancy Turbine Control Module from GE’s Mark™ VIe Speedtronic™ series, engineered for critical steam/gas turbine protection and governing in power generation applications. This triple modular redundant (TMR) processor executes safety-certified control algorithms for speed regulation, valve positioning, and anti-surge management with nanosecond-level synchronization. Designed for SIL 3 (IEC 61508) and API 670 compliance, the GE HWA143-TDM-PMC-V20 integrates with GE’s EX2100 excitation systems and HMI platforms like Cimplicity™ to deliver unified turbine island control. Its hardened construction withstands 15g vibration and electromagnetic interference (EMC Class IV), ensuring fault-tolerant operation in combined-cycle plants, offshore platforms, and cogeneration facilities. The module’s cybersecurity architecture meets NERC CIP and IEC 62443 standards, providing secure communication via embedded dual Ethernet ports. As the core of GE’s turbine management ecosystem, the GE HWA143-TDM-PMC-V20 prevents catastrophic failures through 200+ configurable protection functions while optimizing load dispatch efficiency.

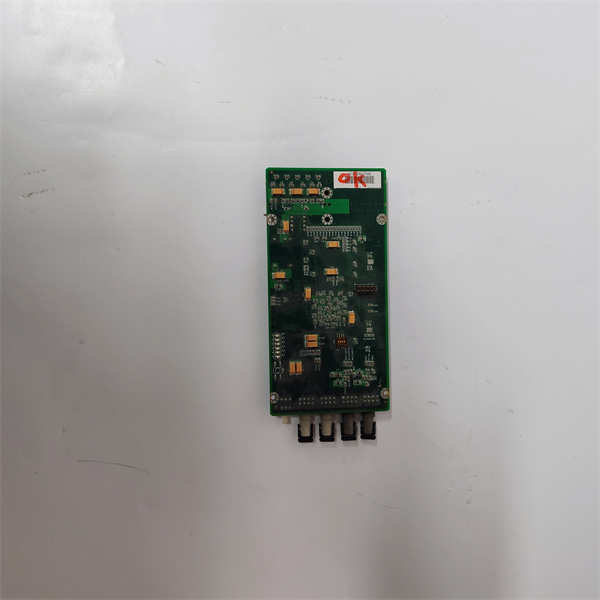

GE HWA143-TDM-PMC-V20

Technical Specifications

Main Features and Advantages

Ultra-Reliable Turbine Protection:
The GE HWA143-TDM-PMC-V20 employs hardware-based voting logic across three independent processors, achieving<50 ms="" fault="" detection="" and="" automatic="" channel="" failover.="" pre-configured="" algorithms="" prevent="" overspeed="">110% trip), bearing temperature excursions, and lube oil failures with SIL 3-certified reliability.<!--50-->

Precision Control Capabilities:
Adaptive valve positioning logic compensates for steam chest thermal effects, maintaining megawatt setpoints within ±0.25%. Integrated sequence-of-events (SOE) recording captures 512 disturbances with 1 ms resolution for forensic analysis.

Cybersecurity & Integration:
Hardened OS with role-based access control and encrypted firmware updates. Native Profibus DP-V1 and Modbus TCP protocols enable seamless DCS integration. The GE HWA143-TDM-PMC-V20 supports IEC 61850 GOOSE messaging for grid synchronization.

Maintenance Optimization:
Hot-swappable design allows module replacement during turbine operation. Continuous hardware diagnostics monitor CPU load (<60>

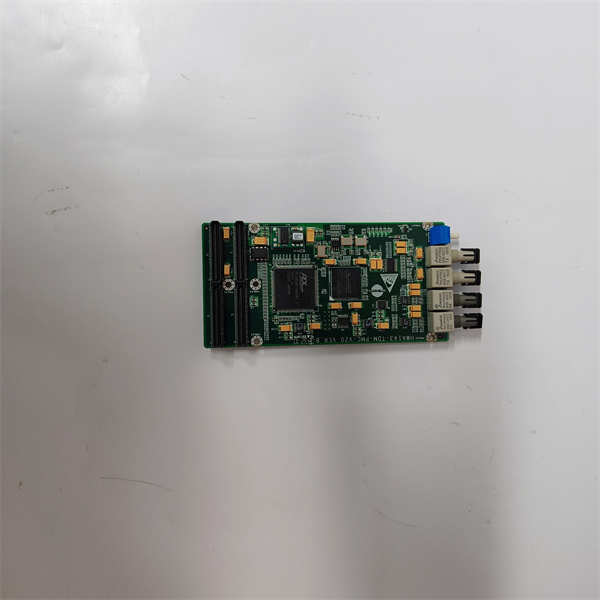

GE HWA143-TDM-PMC-V20

Application Field

The GE HWA143-TDM-PMC-V20 dominates in:

Combined-Cycle Plants: Coordinates gas/steam turbine loading during mode transitions

Industrial Cogeneration: Manages extraction valves for process steam demand

Offshore Power: Governs turbine-generators on FPSOs with motion-compensated control

District Heating: Optimizes backpressure turbine efficiency

Black Start Facilities: Executes automated crank sequences with exciter coordination
Critical for turbines 20-500 MW where unplanned downtime costs exceed $500k/day.

Related Products

GE IS215ACLEH1A: I/O pack for HWA143-TDM-PMC-V20 signal conditioning

GE DS200TCEAG1ADC: Turbine control cabinet with integrated cooling

GE EX2100e: Excitation system for synchronized turbine control

GE HWA107-PDM-PMC: Pump drive module for boiler feed applications

GE CIMPLICITY HMI: Operator interface for turbine visualization

GE TKIS-M: Turbine keyphasor interface module

Installation and Maintenance

Pre-installation preparation: Verify control cabinet grounding (<0>GE HWA143-TDM-PMC-V20.

Maintenance recommendations: Quarterly perform redundancy failover tests. Annually clean air filters and verify processor load (<50>GE HWA143-TDM-PMC-V20.
