Description

The Johnson Controls MS-NAE5510-2 is an advanced Network Automation Engine (NAE) within the Metasys® building management system, designed to orchestrate HVAC, lighting, and security subsystems across large-scale smart buildings. This BACnet/IP-native controller integrates up to 100 field controllers (N2, BACnet MS/TP, or LON) into a unified IP infrastructure, enabling centralized monitoring and analytics for commercial campuses, hospitals, and data centers. The MS-NAE5510-2 features a dual-core processor with 4GB flash memory, executing complex energy optimization algorithms while supporting cybersecurity protocols like TLS 1.2 and role-based access control per NIST 800-53. Its industrial-grade design operates at -30°C to 60°C with 95% humidity tolerance, ensuring reliability in mechanical rooms or rooftop installations.

As the supervisory layer of Johnson Controls’ OpenBlue ecosystem, the MS-NAE5510-2 aggregates data from 50,000+ points for fault detection, automated reporting, and predictive maintenance. Engineers leverage embedded Niagara Framework® for custom logic creation without third-party tools, while RESTful APIs enable integration with enterprise systems like SAP or IBM TRIRIGA. For critical environments, redundant hot-standby configurations guarantee <5s>

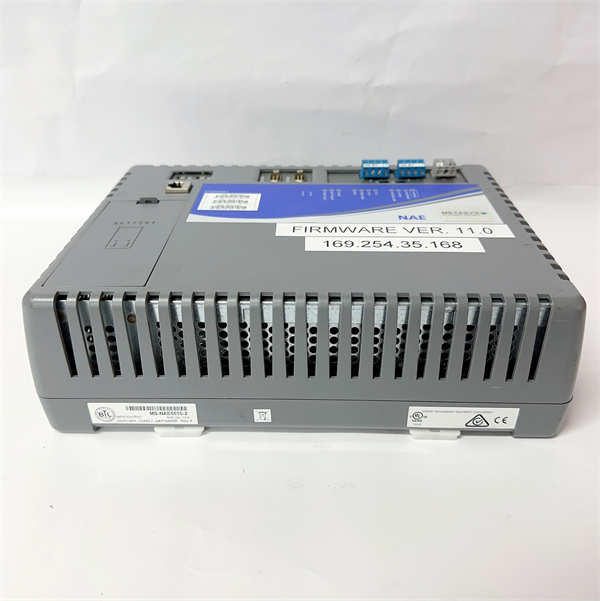

JOHNSON MS-NAE5510-2

Technical Specifications

Main Features and Advantages

Cybersecurity Hardening: Hardware-secured boot with cryptographic signature validation prevents firmware tampering. Automated vulnerability scans align with CVE databases, while configurable firewall rules segment building networks from IT infrastructure.

Energy Intelligence: Embedded Predictive Optimization Engine analyzes historical load patterns and weather data to pre-cool buildings, reducing chiller energy by 15–30%. Real-time dashboards track kW/thermal loads across subsystems.

Unified Integration: Native support for 15+ protocols eliminates gateways. Legacy N2 devices coexist with BACnet/IP subsystems, enabling phased retrofits. Custom drivers can be deployed via Niagara Framework® for proprietary equipment.

High Availability: Redundant power inputs and hot-swappable microSD cards ensure continuous operation. Automatic configuration sync to standby NAE prevents data loss during failover events.

Application Field

The Johnson Controls MS-NAE5510-2 dominates intelligent building management:

Healthcare: Synchronizes OR pressurization, VAV control, and air quality monitoring with FDA-compliant audit trails

Data Centers: Manages CRAC units and hot-aisle containment using computational fluid dynamics (CFD) feedback

Retail Campuses: Optimizes rooftop unit schedules across 50+ stores using demand-response utility signals

Airports: Coordinates baggage handling HVAC with flight schedules, reducing energy during low-traffic periods

Laboratories: Enforces fume hood face velocity control meeting ANSI/ASHRAE 110-2016

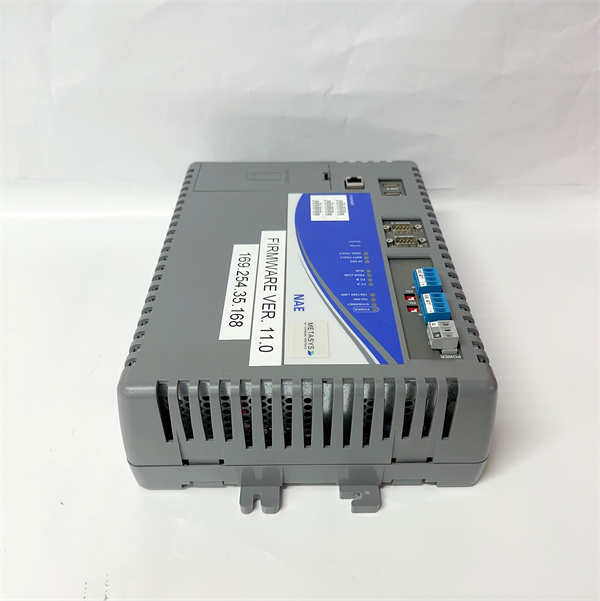

JOHNSON MS-NAE5510-2

Related Products

MS-NAE5510-1: Base model with reduced memory (1GB RAM)

FX-PC1616: Field controller for VAV/FCU control

SED2-VRP102: Variable speed drive for HVAC pumps

P2000-IMA: IP router for legacy N2 networks

TEC3000 Series: BACnet MS/TP thermostats

OpenBlue Enterprise Manager: Cloud analytics platform

NCE25-0: BACnet/IP expansion controller

YABT4100D: Wireless room sensor

Installation and Maintenance

Pre-installation preparation: Configure IP addresses and BACnet device IDs via USB before mounting. Isolate 24V power with ≤10% ripple. Allocate microSD card (Class 10+) for data logging. Enable TLS certificates for encrypted communications.

Maintenance recommendations: Update firmware quarterly via Johnson Controls Service Pack. Validate backup configurations after major logic changes. Monitor “CPU Utilization” and “Network Latency” in Metasys ADX. Replace units exhibiting >80% memory usage consistently. Clean air vents annually in dusty environments.
