Description

The Bently Nevada 3500/42M 140734-02 is a dual-channel tachometer and speed monitoring module within the industry-standard 3500 Series machinery protection system, engineered for critical speed measurement and phase reference applications. Designed to safeguard high-value rotating assets, this module processes signals from magnetic pickups (MPUs), photoelectric sensors, or gear-tooth probes to deliver real-time RPM tracking and keyphasor® data for vibration analysis. The Bently Nevada 3500/42M 140734-02 provides essential functions including overspeed detection, zero-speed monitoring, and rate-of-change calculations with deterministic response times <5ms>Bently Nevada 3500/42M 140734-02 delivers uncompromising reliability for preventing catastrophic rotating equipment failures.

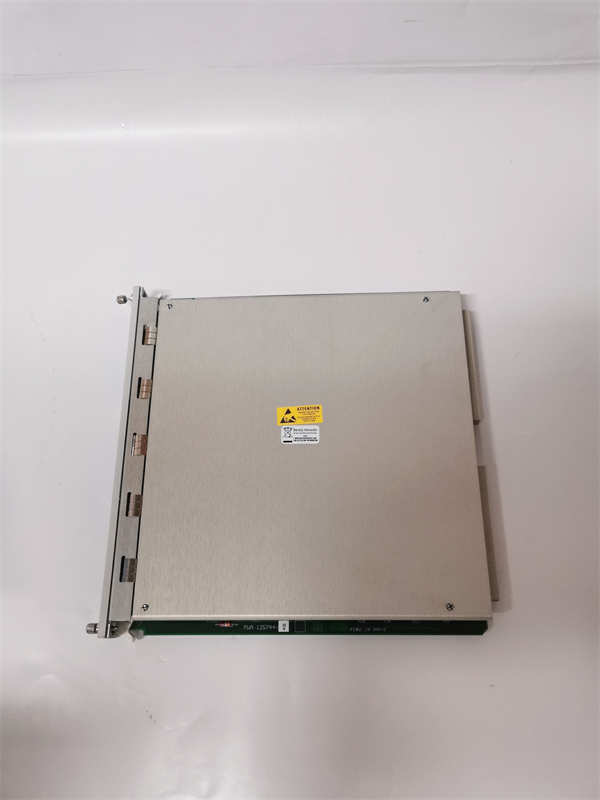

BENTLEY 3500/42M 140734-02

Technical Specifications

Main Features and Advantages

Redundant Safety Architecture: The Bently Nevada 3500/42M 140734-02 employs triple-redundant voting logic (2oo3) for overspeed protection, meeting SIL 3 requirements. Each channel features independent signal conditioning with automatic gain control, maintaining accuracy despite sensor degradation or cable capacitance variations up to 1 μF.

Advanced Signal Processing: Patented missing-pulse compensation reconstructs RPM data during temporary signal loss, preventing false trips. Dynamic threshold adjustment eliminates sensitivity to oil debris on gear teeth or MPU gap changes. The module’s phase-locked loop (PLL) technology ensures stable keyphasor signals for precise vibration phase measurements.

Diagnostic Capabilities:

Real-time signal quality metrics (SNR, waveform distortion)

Automatic MPU gap voltage monitoring

Tooth-count mismatch detection

Predictive sensor failure alerts

Operational Flexibility: Front-panel OLED displays show live RPM, trip margins, and sensor health. The Bently Nevada 3500/42M 140734-02 supports custom speed profiles for complex machinery like steam turbines with multiple critical speeds. Hot-swappable design enables maintenance without shutdown.

Application Field

The Bently Nevada 3500/42M 140734-02 is essential for speed-critical systems across energy and industrial sectors. In gas turbine installations, it provides overspeed protection during start-up/shutdown sequences and supplies keyphasor references for blade vibration monitoring. For steam turbines, the module controls acceleration through critical speeds while detecting rotor barring gear engagement failures.

Compressor stations in pipeline networks utilize the Bently Nevada 3500/42M 140734-02 for surge prevention by monitoring speed deviations during load changes. Hydroelectric plants deploy it on Francis turbines to detect runaway conditions during wicket gate failures. The module also serves marine propulsion diesel engines, where it synchronizes multiple engines via precise RPM feedback. In manufacturing, it safeguards high-speed centrifuges and extruders by triggering emergency brakes when exceeding safe operating envelopes. The Bently Nevada 3500/42M 140734-02‘s hazardous area certification (ATEX) makes it ideal for refinery fluid catalytic cracking units and offshore drilling top drives.

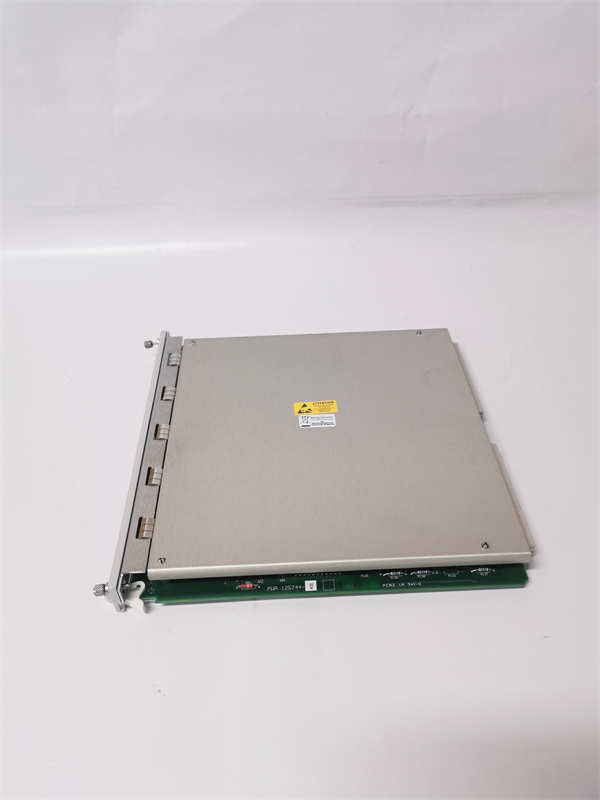

BENTLEY 3500/42M 140734-02

Related Products

Bently Nevada 3500/25: Triple-redundant overspeed detection module

Bently Nevada 330730-00: Magnetic pickup (MPU) sensor for 3500/42M

Bently Nevada 3500/92: Relay module for trip outputs

Bently Nevada 3500/15: Power supply for critical racks

Bently Nevada 3500/22: MODBUS communication gateway

Bently Nevada TK-8E: Test kit for 3500/42M calibration

Bently Nevada 1900/65A: Transient voltage suppressor

Installation and Maintenance

Pre-installation preparation: Verify sensor compatibility (minimum 5-tooth gear for MPUs). Route shielded cables separately from AC power lines with <100>Bently Nevada 3500/42M 140734-02. Configure DIP switches for tooth count and voting logic prior to rack insertion.

Maintenance recommendations: Perform annual dynamic calibration using TK-8E test kit with simulated gear tooth patterns. Monitor “Signal Quality” parameter monthly – values <80>Bently Nevada 3500/42M modules in the rack.
