The TRICONEX 8120E is a critical termination module within the Triconex Triple Modular Redundant (TMR) safety system, designed to interface field wiring with high-integrity I/O modules. As part of the legacy 3000 series platform, this DIN-rail-mounted component provides signal conditioning and electrical isolation for analog/digital inputs/outputs in safety-critical environments. The TRICONEX 8120E simplifies wiring consolidation through its screw terminal blocks while ensuring signal integrity with 1,500 VAC channel-to-channel isolation, preventing cross-talk and ground loops. Compatible with main processors like the 3008/3101, it enables seamless integration into burner management (BMS) or emergency shutdown (ESD) systems.
Engineered for extreme reliability, the TRICONEX 8120E operates in -40°C to +70°C temperatures and withstands 5 g vibrations, making it ideal for offshore platforms and turbine control cabinets. Its hot-swappable design allows maintenance without system shutdowns, reducing operational downtime. The module’s gold-plated contacts resist corrosion in humid environments, while integrated diagnostics monitor connection integrity. For SIL 3-certified applications, the TRICONEX 8120E delivers the fault tolerance demanded by IEC 61508 standards, serving as the backbone for mission-critical signal routing.

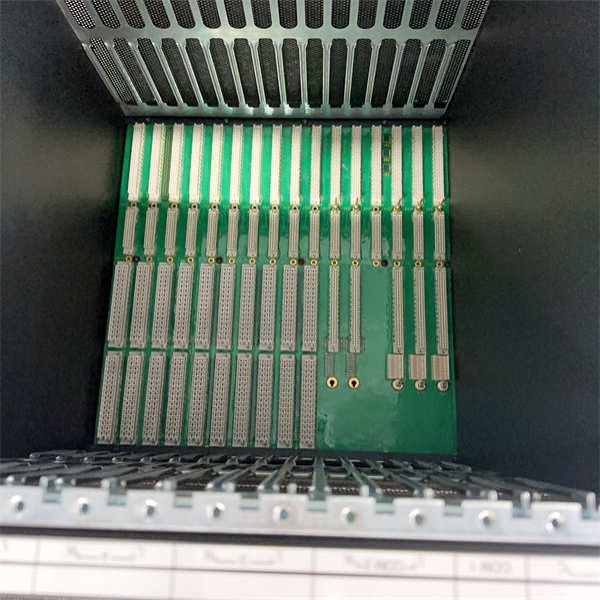

TRICONEX 8120E
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | 8120E |
| Manufacturer | TRICONEX (Schneider Electric) |
| Product Type | I/O Termination Module |
| Input Voltage Range | 18–32 VDC |
| Isolation Voltage | 1,500 VAC (channel-to-channel) |
| Operating Temperature | -40°C to +70°C |
| Terminal Type | Screw Clamp (16 AWG max) |
| Housing Material | UL 94 V-0 Polycarbonate |
| Shock Resistance | 30 g (11 ms duration) |
| Vibration Resistance | 5 g (10–500 Hz) |
| Certifications | SIL 3 (IEC 61508), ATEX, UL Class I Div 2 |
| Dimensions (H×W×D) | 50 × 145 × 120 mm |
| Weight | 450 g |
Main Features and Advantages
Triple Redundancy Support: The TRICONEX 8120E interfaces directly with TMR I/O modules (e.g., 3700A analog input), enabling simultaneous connection to three independent processing channels. This architecture detects and masks hardware faults in microseconds, maintaining continuous operation during single-point failures.
Robust Signal Integrity: Electromagnetic shielding and gold-plated terminals eliminate signal degradation in noisy environments. Built-in transient voltage suppression protects against 1 kV surges per IEC 61000-4-5, while optical isolation prevents ground loop interference. The module’s vibration-resistant terminals maintain torque integrity under mechanical stress.
Maintenance Optimization: Hot-swap capability allows replacement of the TRICONEX 8120E without disrupting control logic. Terminal blocks feature removable covers for safe troubleshooting, and color-coded sections simplify wiring verification. Integrated test points enable live signal measurement without disconnection.
Application Field
The TRICONEX 8120E is deployed in high-risk industries requiring fail-safe operations. In oil/gas refineries, it terminates ESD valve signals in hydrocarbon processing units, where undetected signal loss could trigger catastrophic incidents. Power generation facilities use it for turbine overspeed protection systems, connecting magnetic pickups to TMR voting logic.
For chemical plants, the module interfaces toxic gas detectors with safety controllers, ensuring SIL 3-compliant shutdowns during leaks. Offshore drilling platforms rely on the TRICONEX 8120E for subsea BOP control, leveraging its corrosion resistance in salt-spray environments. Pharmaceutical manufacturers utilize it in steam-in-place (SIP) automation, where isolated signals prevent batch contamination during sterilization cycles.
TRICONEX 8120E
Related Products
TRICONEX 8121E: Digital input termination module for 24 VDC sinking/sourcing signals.
TRICONEX 3700A: TMR analog input module compatible with 8120E termination.
TRICONEX 3008: Main processor for legacy 3000-series systems.
TRICONEX 8120X: Next-gen termination module with enhanced diagnostics.
TRICONEX 4351B: Communication module for Triconex-to-DCS integration.
Installation and Maintenance
Pre-installation preparation: Verify cabinet ambient temperature stays within -40°C to +70°C. Ensure DIN rail (EN 50022) is grounded and free of debris. Segregate field wiring (>50 mm separation) from AC power cables to prevent EMI. Use shielded twisted pairs for analog signals.
Maintenance recommendations: Inspect terminal tightness annually (0.5–0.6 N·m torque). Clean contacts with isopropyl alcohol if oxidation occurs. Monitor chassis ground integrity quarterly (<1>TRICONEX 8120E every 10 years or after 100,000 insertion cycles.
