Description

The ICS Triplex T8111C is a high-integrity 16-channel digital input module designed for Rockwell Automation’s Trusted® TMR (Triple Modular Redundant) safety system. Engineered for mission-critical applications, this module converts field device signals (e.g., switches, sensors) into fault-tolerant logic for safety instrumented systems (SIS) achieving SIL 3 certification per IEC 61508. The T8111C employs triple-channel processing with 2-out-of-3 (2oo3) voting logic, ensuring continuous operation even if one channel fails, thereby maximizing availability while meeting rigorous safety targets. It integrates seamlessly into Trusted racks using the TMR bus, providing deterministic scan times and comprehensive diagnostics.

As a core component of the Trusted platform, the ICS Triplex T8111C supports 24V DC sinking/sourcing inputs with individual channel isolation (250V AC) and features built-in health monitoring for field wiring (open/short circuit detection) and internal circuitry. Its ruggedized design withstands harsh industrial environments common in oil & gas, power generation, and chemical processing. The module’s hot-replacement capability minimizes downtime during maintenance, while its configurable fault response actions ensure predictable fail-safe behavior. The ICS Triplex T8111C exemplifies the stringent reliability standards required for emergency shutdown (ESD) and fire & gas (F&G) systems, providing unparalleled data integrity for life-critical automation layers.

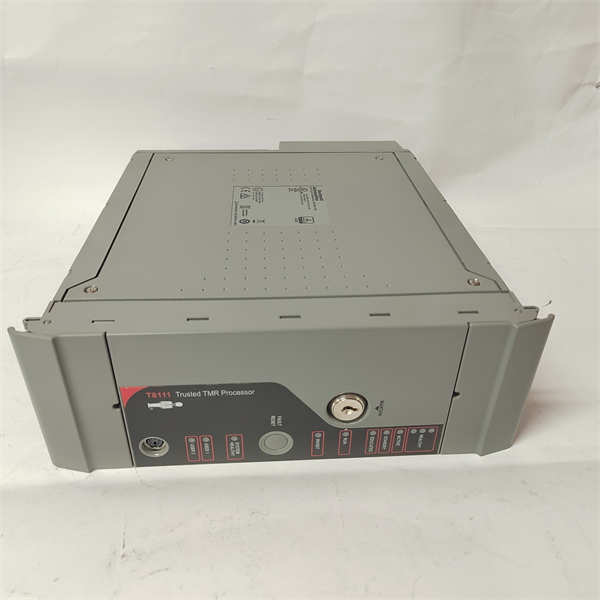

ICS TRIPLEX T8111C

Technical Specifications

Main Features and Advantages

Fault Tolerance & Safety Integrity: The ICS Triplex T8111C utilizes three independent input processing chains per channel. Signals undergo continuous 2oo3 voting within the module and again at the controller level, eliminating single points of failure. This architecture ensures <1>

Advanced Diagnostics & Maintainability: Each channel provides LED status indication for field health (valid signal, open circuit, short circuit) and module status. Detailed diagnostics are accessible via the Trusted Toolbox software, enabling predictive maintenance. The T8111C supports online hot replacement without compromising system safety or availability – critical for continuous processes. Its robust design features galvanic isolation per channel, surge protection, and immunity to EMI/RFI interference.

Engineering Efficiency: Configuration is streamlined via Rockwell’s Trusted Toolbox™. Module parameters (debounce time, fault action per channel) are set intuitively. The T8111C integrates with Allen-Bradley Logix controllers through CIP Safety protocols, enabling unified safety and standard control architectures. Its high channel density reduces cabinet footprint and associated costs while maintaining TMR reliability.

Application Field

The ICS Triplex T8111C is deployed in high-hazard industries where safety system failure could result in catastrophic consequences. In offshore oil & gas platforms, it monitors critical ESD valves, pressure safety switches, and fire detection sensors, executing shutdown commands within milliseconds to prevent blowouts or explosions. For onshore refineries, the T8111C safeguards furnace burner management systems (BMS), validating flame presence and fuel valve positions to prevent uncontrolled combustion.

Power generation facilities rely on the ICS Triplex T8111C for turbine overspeed protection, reactor coolant system monitoring in nuclear plants, and boiler safety interlocks. Its TMR architecture ensures gas turbine generators trip safely during overvoltage or lubrication failures. In chemical processing, the module supervises reactor temperature/pressure interlocks and toxic gas detection, initiating emergency venting or neutralization.

The module’s extreme temperature tolerance (-40°C to +70°C) makes it suitable for arctic exploration or desert LNG terminals. It also protects critical infrastructure like compressor stations in pipelines, ensuring the ICS Triplex T8111C is a cornerstone of functional safety across energy and process sectors globally.

Related Products

T8311C: TMR 16-channel digital output module, complementary to the T8111C for safety actuation.

T8111B: Dedicated baseplate required for mounting the T8111C module in Trusted racks.

T8461: Trusted TMR Controller, the central processing unit coordinating I/O modules.

T8830: Trusted Communication Module for Profibus-DP integration with the T8111C.

T8151B: Power Supply Module, providing conditioned power to Trusted racks.

T8431: Trusted Analog Input Module, for SIL 3 process variable monitoring.

T8461C: Enhanced version of the TMR controller with higher memory capacity.

Trusted Toolbox: Essential configuration and diagnostics software suite.

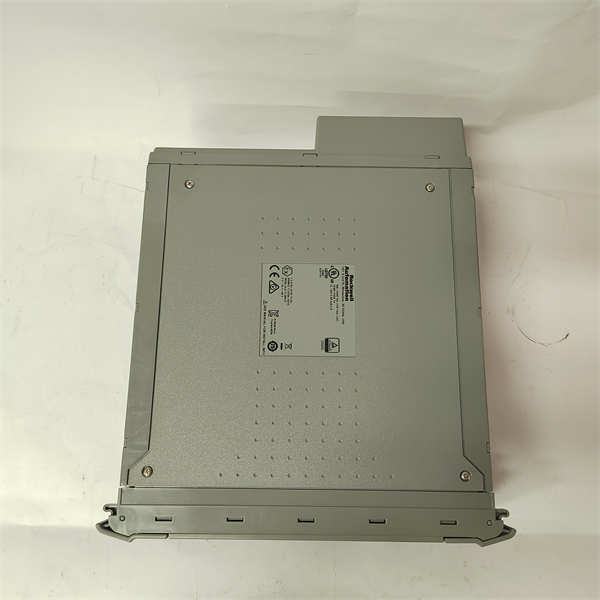

ICS TRIPLEX T8111C

Installation and Maintenance

Pre-installation preparation: Ensure the T8111B baseplate is securely mounted in a Trusted rack with proper grounding. Verify rack power (via T8151B modules) is stable and within specification. Review system configuration in Trusted Toolbox to confirm module addressing and fault response settings. Use shielded, twisted-pair cables for field wiring with separation from high-voltage lines. Adhere to channel-specific terminal assignments per the T8111C installation manual. Personnel must be trained in functional safety procedures.

Maintenance recommendations: Perform annual diagnostic reviews using Trusted Toolbox to assess module health and channel error logs. Monitor LED indicators routinely for abnormal states (e.g., steady red fault LED). During operation, only qualified personnel should execute hot-swap procedures per Rockwell’s guidelines. Keep firmware updated to the latest compatible version. Store replacement T8111C modules in ESD-protected packaging in controlled environments. Record all maintenance actions for safety compliance audits.
