Description

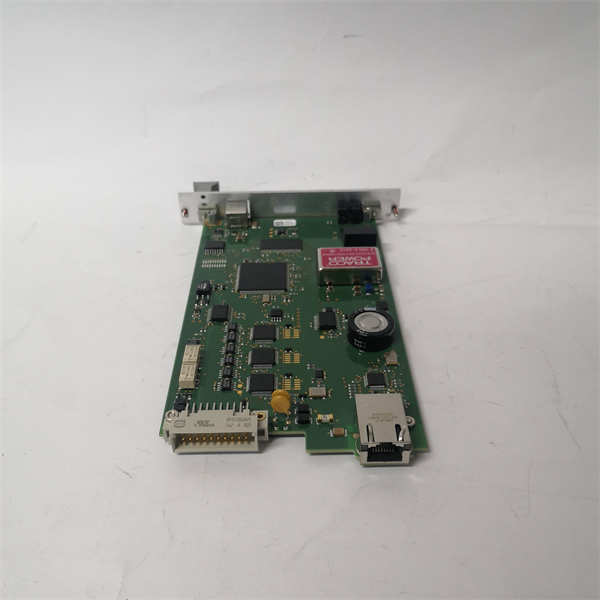

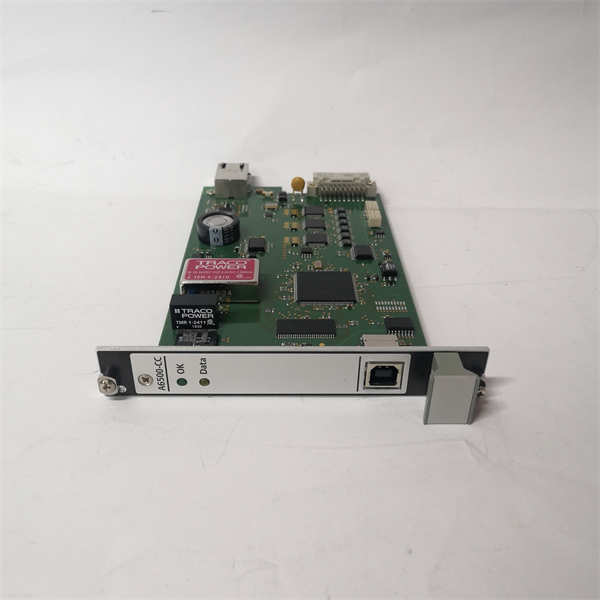

The EMERSON A6500-CC 9199-00120 is a critical chassis communication module for Emerson’s Bently Nevada 3500/70M Machinery Health Monitoring System, designed to bridge high-fidelity vibration data with plant control networks. This module integrates seamlessly within 3500 series racks, aggregating real-time machinery diagnostics (vibration, position, temperature) from monitoring modules and transmitting them via Modbus RTU/TCP or Profibus DP protocols to DCS/PLC systems. The A6500-CC 9199-00120 features dual-redundant RS-485/422 ports and 10/100 Mbps Ethernet connectivity, ensuring uninterrupted data flow for predictive maintenance in critical rotating equipment. Its FPGA-based processing enables simultaneous handling of 500+ dynamic parameters with 1ms resolution while executing advanced algorithms for early fault detection (imbalance, misalignment, bearing wear).

Engineered for extreme environments, the module operates at -30°C to +70°C with 90% non-condensing humidity tolerance and withstands 7g vibration (10-2000Hz). The EMERSON A6500-CC 9199-00120 supports IEC 62443 cybersecurity standards with role-based access control and encrypted data transmission. Its hot-swappable design allows replacement without rack shutdown, while integrated web server capabilities enable remote configuration via System 1™ software – making it indispensable for maintaining operational integrity in power generation, oil & gas, and heavy industrial applications where machine failure carries catastrophic consequences.

EMERSON A6500-CC 9199-00120

Technical Specifications

Main Features and Advantages

High-Density Data Integration: Simultaneously processes 16 dynamic waveforms (up to 20 kHz), 32 orbits, and 500+ process variables from multiple monitoring modules (e.g., 3500/42M, 3500/45). Built-in FFT analysis and event capture buffers enable transient fault diagnosis without external tools.

Network Resilience: Dual independent communication paths with automatic failover ensure zero data loss during network disruptions. The A6500-CC 9199-00120 supports Profibus DP-V1 acyclic services for alarm transmission and Modbus TCP for HMIs integration. Configurable data prioritization (alarms > trends > waveforms) optimizes bandwidth usage.

Engineering Efficiency: Automatic device mapping in System 1™ reduces configuration time by 70%. Web-based interface allows real-time health checks without dedicated software. The module’s non-volatile memory retains settings during power cycles, while electronic keying prevents incorrect module installation in racks.

Application Field

The EMERSON A6500-CC 9199-00120 is deployed where machine health directly impacts safety and revenue:

Power Generation: Integrates turbine vibration (radial/thrust), eccentricity, and differential expansion data into DCS for steam/gas turbine protection

Oil & Gas: Transmits compressor surge detection parameters and pump bearing diagnostics from offshore platforms to central control rooms

Petrochemical: Links reactor agitator vibration profiles with batch control systems for predictive maintenance scheduling

Hydroelectric: Synchronizes generator air-gap monitoring with grid frequency controls

Metals Industry: Feeds rolling mill gearbox spectral data to PLCs for load optimization

Marine: Monitors propulsion shaft alignment in LNG carriers during cryogenic operations

EMERSON A6500-CC 9199-00120

Related Products

3500/42M: Proximitor® Seismic Monitor Module (inputs for A6500-CC)

3500/22M: Transient Data Interface for waveform capture

3500/92: Ethernet Global Data Gateway

1900/65A: Proximitor® Sensor (supports A6500-CC measurements)

3500/15: Power Supply Module for chassis

3500/33: Relay Module for trip outputs

3300 XL 8mm: Proximity Transducer System

System 1™: Asset Performance Management Platform

Installation and Maintenance

Pre-installation preparation: Verify rack slot compatibility (requires position 5,6,7 or 8 in 3500/70M chassis). Configure IP addresses/DIP switches before insertion. Ground rack via 4mm² copper wire (<0>30m.<!--0-->

Maintenance recommendations: Update firmware annually via System 1™. Quarterly clean air filters on rack enclosure. Monitor “COM STATUS” LEDs (green = active link). Replace every 8 years or 60,000 operational hours. For hot-swap: 1) Disable comms in DCS 2) Extract module within 60s 3) Insert replacement. Calibrate connected sensors biannually.
