Description

The GE IS420UCSBH4A is a high-reliability Utility Control System (UCS) module within GE’s Mark VIe series, engineered for critical turbine and power generation control applications. As a core component of GE’s Speedtronic™ platform, this controller delivers deterministic execution of safety and process logic for gas/steam turbines, compressors, and other high-speed rotating machinery. The IS420UCSBH4A integrates triple-redundant processing, fault-tolerant communication, and SIL 3-certified safety functions to ensure uninterrupted operation in mission-critical environments. Its primary role involves real-time monitoring, protective sequencing, and control algorithm execution—preventing catastrophic failures while optimizing operational efficiency.

Positioned as an industrial-grade controller, the GE IS420UCSBH4A excels in extreme conditions with extended temperature support and vibration resistance. It leverages GE’s proprietary high-speed backplane (PDH) for deterministic data exchange with I/O packs like the IS420ESWBH3A and supports industry protocols (Ethernet, Modbus TCP, OPC UA) for SCADA integration. The value of the IS420UCSBH4A lies in its ability to reduce unplanned downtime through predictive diagnostics, simplify compliance with IEC 61508/61511 standards, and extend asset lifecycle via modular hot-swappable design. This module serves as the computational backbone for turbine control systems worldwide, balancing performance with fail-safe reliability.

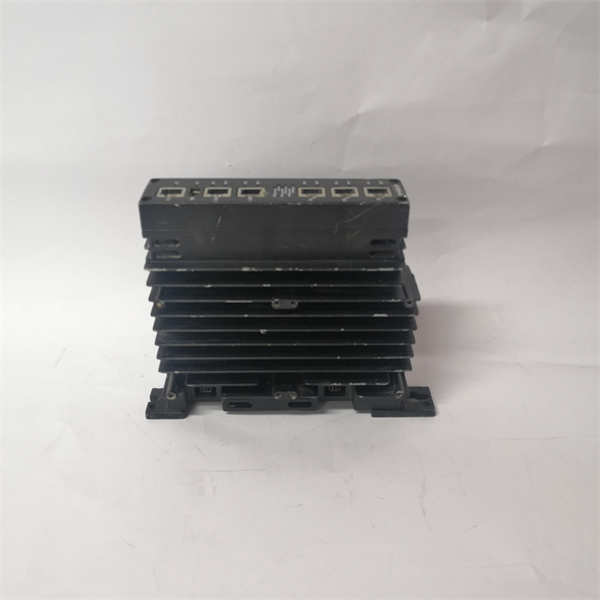

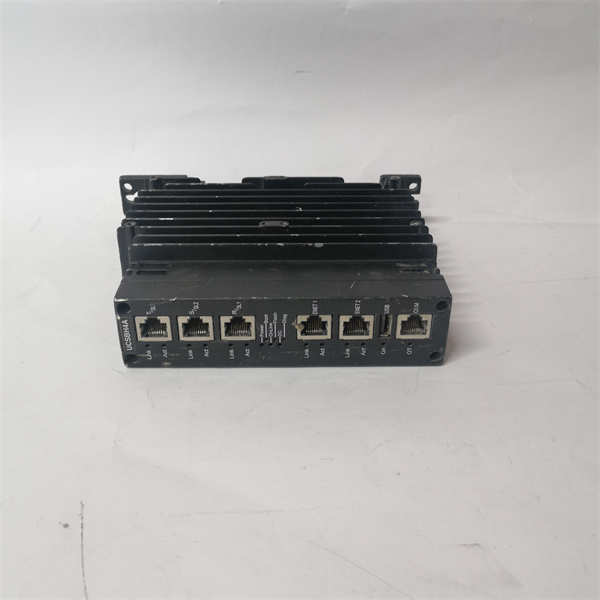

GE IS420UCSBH4A

Technical Specifications

Main Features and Advantages

Fault-Tolerant Architecture: The GE IS420UCSBH4A employs Triple Modular Redundancy (TMR), where three independent processors execute identical logic simultaneously. A majority-voting system instantly isolates failed components, maintaining continuous operation without single-point failure risks. This architecture achieves SIL 3 certification, making it ideal for safety-instrumented systems (SIS) in power plants. The module’s hot-swappability allows replacement during operation, minimizing maintenance windows.

Deterministic Performance: Engineered for high-speed turbine control, the IS420UCSBH4A executes critical algorithms (e.g., overspeed protection, temperature management) with sub-millisecond latency. Its PDH backplane ensures synchronized communication with I/O modules at 100 Mbps, enabling precise actuator control and vibration monitoring. Integrated diagnostics continuously validate sensor inputs, logic execution, and hardware health, triggering pre-emptive alarms for anomalies.

Cyber Security & Integration: Featuring secure boot, role-based access, and encrypted communications, the module defends against unauthorized access. Native support for GE’s ToolboxST software streamlines configuration, while OPC UA and Modbus TCP protocols enable seamless data exchange with DCS/SCADA. The IS420UCSBH4A’s ruggedized design withstands extreme temperatures, humidity, and electromagnetic interference common in turbine halls.

Application Field

The GE IS420UCSBH4A dominates critical control applications in energy infrastructure. It is the cornerstone of gas/steam turbine management systems in combined-cycle power plants, executing start-up/shutdown sequencing, fuel valve control, exhaust temperature regulation, and anti-surge algorithms. Its SIL 3 certification makes it indispensable for safety-critical functions like overspeed protection (triggering mechanical trips at >110% rated speed) and fire detection systems.

In oil & gas, the IS420UCSBH4A controls compressor stations along pipelines, managing load-sharing between units and preventing stall conditions. For industrial cogeneration facilities, it optimizes steam-to-power efficiency through adaptive tuning. The module also integrates with balance-of-plant systems (e.g., GE EX2100 exciters) for grid synchronization and black-start capability. Renewable energy applications include biomass turbine control and hydroelectric governor systems requiring high-availability logic execution. The IS420UCSBH4A’s harsh-environment tolerance ensures reliability in offshore platforms, Arctic installations, and desert-based solar-thermal plants.

Related Products

IS420ESWBH3A: Essential Ethernet Switch module for IS420UCSBH4A network integration.

IS420UCSAH1A: Previous-generation UCS module with lower temperature tolerance.

IS215ACLEH1A: Analog I/O pack for interfacing sensors with the IS420UCSBH4A.

IS200EXHSG1A: Excitation control module compatible with Mark VIe systems.

IS420PDOAH1A: Profibus DP-V1 interface for third-party device connectivity.

DS200TCEAG1A: Terminal board for IS420UCSBH4A signal conditioning.

MKVIe TMR Controller Kit: Complete redundant control package including IS420UCSBH4A.

ToolboxST Software: GE’s engineering suite for programming and diagnostics.

Installation and Maintenance

Pre-installation preparation: Verify chassis compatibility (e.g., VME-64 or TXm backplanes) and confirm PDH slot availability for the GE IS420UCSBH4A. Ensure 24VDC power supplies meet redundancy requirements and voltage stability (±2% ripple). Ground the chassis per IEEE 518 standards to mitigate electrical noise. Pre-load configuration files via ToolboxST and validate firmware versions. Always wear ESD straps when handling the module.

Maintenance recommendations: Monitor the IS420UCSBH4A’s status LEDs (OK, ACTIVE, FAULT) during routine inspections. Perform annual contact cleaning on backplane connectors using certified electronic cleaners. Maintain environmental conditions within specified limits—ensure adequate airflow to prevent >70°C internal temperatures. Cycle redundant modules quarterly to verify failover functionality. Backup configuration files before firmware updates and replace units showing persistent fault indicators. Utilize ToolboxST’s diagnostic logs for predictive maintenance.
