The WOODWARD 2301E 8273-1011 is a microprocessor-based speed control and load-sharing module engineered for precision management of gas turbines, steam turbines, and reciprocating engines in demanding power generation and industrial applications. As a flagship product in Woodward’s 2301E series, this controller integrates advanced PID algorithms, dual-configuration memory, and ruggedized design to ensure reliable operation in extreme environments. The 2301E 8273-1011 acts as the central nervous system for prime movers, dynamically adjusting fuel valves or inlet guide vanes to maintain stable speed/load during grid synchronization, load ramps, or disturbances. Its core innovation lies in adaptive tuning capabilities that optimize response times while preventing instability during transient conditions.
Designed for SIL 2 compliance (IEC 61508), the WOODWARD 2301E 8273-1011 supports critical fail-safe functions like overspeed protection through redundant voting logic. The module interfaces with Woodward’s ProTech™ safety systems and third-party DCS via Modbus TCP, Profibus DP, or HART protocols. With its extended temperature tolerance (-40°C to +85°C) and corrosion-resistant housing, the 2301E 8273-1011 delivers unmatched longevity in offshore platforms, arctic power plants, and desert cogeneration facilities. Its value proposition centers on maximizing turbine efficiency, reducing emissions via precise combustion control, and eliminating costly downtime through predictive diagnostics and <0>

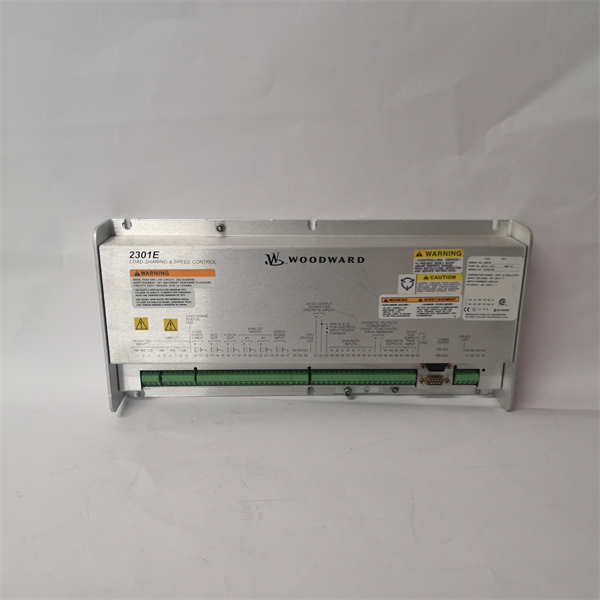

WOODWARD 2301E 8273-1011
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | 2301E 8273-1011 |
| Manufacturer | Woodward |
| Product Type | Digital Speed Control Module |
| Input Signals | Speed (MPU/magnetic pickup), Load (4–20mA), Aux. Process Variables |
| Output Signals | 4–20mA (Actuator), 0–10VDC (Position Feedback) |
| Control Accuracy | ±0.25% of setpoint |
| Speed Range | 0–12,000 RPM (configurable) |
| Communication Protocols | Modbus TCP, Profibus DP, HART, CANbus |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Safety Integrity | SIL 2 (IEC 61508) |
| Power Supply | 18–36 VDC (redundant capable) |
| Vibration Resistance | 8g (operating), 15g (survival) |
| Dimensions | 145 mm × 105 mm × 45 mm (5.7″ × 4.1″ × 1.8″) |
| Certifications | ATEX/IECEx Zone 2, UL/cUL Class I Div 2 |
Main Features and Advantages
Adaptive Control & Diagnostics: The WOODWARD 2301E 8273-1011 employs real-time adaptive gain tuning that automatically adjusts PID parameters during load transients, eliminating manual recalibration. Embedded model-based diagnostics continuously monitor actuator health, sensor drift, and combustion instability, generating predictive alerts for issues like valve stiction or MPU degradation. Dual non-volatile memory stores active and backup configurations, enabling instant fallback during corruption events.
Cyber-Secure Integration: Featuring Woodward’s SecureLock™ technology, the module enforces role-based access control, firmware signature validation, and encrypted communications to thwart unauthorized configuration changes. Native support for HART 7 allows digital diagnostics from smart positioners without additional wiring. The integrated web server provides secure remote access for real-time tuning via Toolkit™ software.
Rugged Reliability: Encased in a hardened aluminum enclosure with IP66 sealing, the 2301E 8273-1011 withstands high humidity, salt spray, and explosive atmospheres. Redundant power inputs ensure uninterrupted operation during grid fluctuations. Hot-swappable design allows maintenance without turbine shutdown, while MIL-STD-202G vibration compliance guarantees performance in reciprocating engine applications.
Application Field
The WOODWARD 2301E 8273-1011 excels in mission-critical speed control scenarios across energy and heavy industries. In power generation, it governs gas turbine synchronization to grids with <2ms>ISO-sleeved actuators.
In marine applications, the module stabilizes propulsion engines on vessels during dynamic positioning operations. Industrial uses include turbine-driven pumps in pipeline booster stations, where it maintains constant discharge pressure despite flow variations. The 2301E 8273-1011 also integrates into hybrid renewable systems, regulating biogas engines during solar/wind intermittency. Its SIL 2 capabilities enable safety functions like turbine overspeed tripping (≥110% rated speed) in nuclear auxiliary systems.
Related Products
WOODWARD 2301E-8273-1012: HART-enhanced variant for smart valve diagnostics.
WOODWARD 9907-164: ProTech overspeed module for SIL 3 protection.
WOODWARD 8276-105: Analog actuator driver for 2301E output expansion.
WOODWARD 5442-258: Magnetic pickup (MPU) sensor for speed feedback.
WOODWARD 8406-105: Touchscreen HMI for local 2301E configuration.
WOODWARD L-Series Actuator: Hydraulic actuator optimized for 2301E control.
WOODWARD Toolkit™ Software: Engineering suite for 2301E programming.
WOODWARD EGB-1P: Load-sharing module for generator paralleling.
WOODWARD 2301E 8273-1011
Installation and Maintenance
Pre-installation preparation: Verify mounting surface flatness (<0>2301E 8273-1011.
Maintenance recommendations: Perform quarterly MPU gap checks (0.5–1.2mm optimal) and annual calibration validation using precision signal simulators. Monitor Toolkit™’s diagnostic trends for early signs of actuator wear. Clean air vents with low-pressure nitrogen to prevent dust ingress. Update firmware during scheduled outages to access performance enhancements. Replace units showing persistent “CPU Fault” LED indicators.
