The GE CT11T7F10PN1 PMC676RCTX V2.3 (Configuration ID: 01 16 C1145 CR11 V2.x) is an advanced Motion Control CPU Module for GE’s PACSystems RX3i platform, engineered for high-precision multi-axis synchronization in demanding industrial automation. This ruggedized controller integrates a real-time PowerPC processor with dedicated motion ASICs, delivering deterministic servo control (<1ms>PMC676RCTX variant features extended temperature tolerance (-40°C to +70°C), conformal coating for harsh environments, and integrated PROFINET IRT (CT11T7F10PN1 suffix) for seamless drive networking. With 32-axis capability and SERCOS III/EtherCAT support via expansion, it executes complex cam profiling, gearing, and position correction algorithms while interfacing with HMIs and MES via embedded Ethernet/IP. The V2.3 firmware enhances safety with SIL 2-compliant motion functions, making this module indispensable for applications demanding micron-level accuracy combined with industrial resilience.

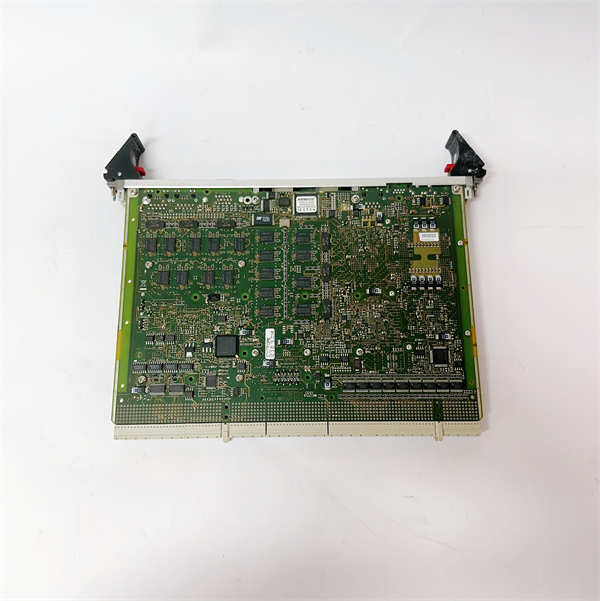

GE CT11T7F10PN1 PMC676RCTX V2.3 01 16 C1145 CR11 V2.x
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | CT11T7F10PN1 PMC676RCTX V2.3 (Config: 01 16 C1145 CR11 V2.x) |
| Manufacturer | GE Intelligent Platforms (Emerson) |
| Product Type | Motion Controller CPU |
| Processor | PowerPC 1.0 GHz + Motion Co-processor |
| Motion Axes | 32 (Integrated + Expansion) |
| Control Cycle Time | 0.25–4 ms (Axis Dependent) |
| Communication Ports | 2x Ethernet (1x PROFINET IRT, 1x Ethernet/IP), 1x Serial (RS-232/485) |
| Motion Networks | SERCOS III, EtherCAT (via IC695ETM001 module) |
| Memory | 32 MB User Program, 1 GB Storage |
| I/O Scanning | ≤ 2 ms for 512 Points |
| Safety Certification | SIL 2 (IEC 61800-5-2, Firmware V2.3+) |
| Operating Temperature | -40°C to +70°C |
| Vibration Resistance | 5g (10–500 Hz) |
| Backplane Interface | PCI-104 (RX3i) |
| Power Consumption | 12W @ 5VDC (via backplane) |
| Certifications | cULus, CE, DNV-GL, ATEX Cat 3 |
Main Features and Advantages
Deterministic Multi-Axis Control: The PMC676RCTX executes complex interpolation (linear/circular) and electronic camming with ±1 microsecond synchronization jitter, enabling precision in high-speed pick-and-place or printing applications.
Integrated PROFINET IRT: The “PN1” suffix denotes embedded PROFINET IRT Class 3 support, enabling ≤1ms cycle times for servo drives (e.g., SINAMICS S210) without additional hardware.
Ruggedized Construction: “RCTX” variants feature conformal-coated PCBs, extended temperature range, and reinforced connectors for vibration-prone environments like metal stamping or mining.
Advanced Motion Toolkit: Includes backlash compensation, torque limiting, and adaptive feedforward control – configurable via Machine Edition PLC Motion Developer.
Safety Integration: SIL 2-compliant functions (STO, SS1) reduce need for external safety relays when paired with certified drives.
Application Field
The GE CT11T7F10PN1 PMC676RCTX V2.3 excels in:
Automotive Robotics: Synchronizing welding robots with conveyor tracking (≤0.1mm path accuracy).
Packaging Machinery: Coordinating servo cutters, fillers, and labelers at 300+ packages/minute.
Printing Presses: Maintaining register control across 12-color towers at 15m/s web speeds.
Semiconductor Handling: Precision wafer positioning with vibration rejection in cleanrooms.
Aerospace Machining: 5-axis CNC contouring with adaptive toolpath compensation.
In all cases, the module’s deterministic performance prevents scrap losses in high-value processes.

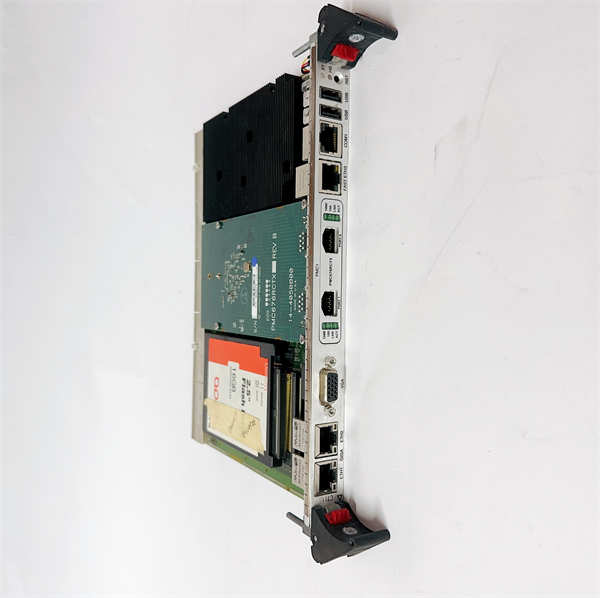

GE CT11T7F10PN1 PMC676RCTX V2.3 01 16 C1145 CR11 V2.x
Related Products
IC695ETM001: EtherCAT Master Module – Expands PMC676RCTX motion network options.
DS200TCEAG1: SERCOS III Fiber Interface – For noise-immune servo networking.
RX3i CRD310: Standard CPU – For non-motion logic integrated with PMC676RCTX.
IC695PSD140: 40W Power Supply – Powers RX3i racks hosting motion CPUs.
PROFINET IRT Drives: e.g., SINAMICS S210 – Directly controlled via CT11T7F10PN1.
IC694ALG392: Analog I/O Module – For auxiliary process control.
Machine Edition V8.0+: Required configuration software for V2.x firmware.
Installation and Maintenance
Pre-installation preparation: Verify backplane compatibility (≥PCI-104 bandwidth). Ground rack to<1>
Maintenance recommendations: Monitor axis following error (<5>CPUBAT03) every 5 years. Never interrupt power during firmware updates.
