Description

Product Introduction

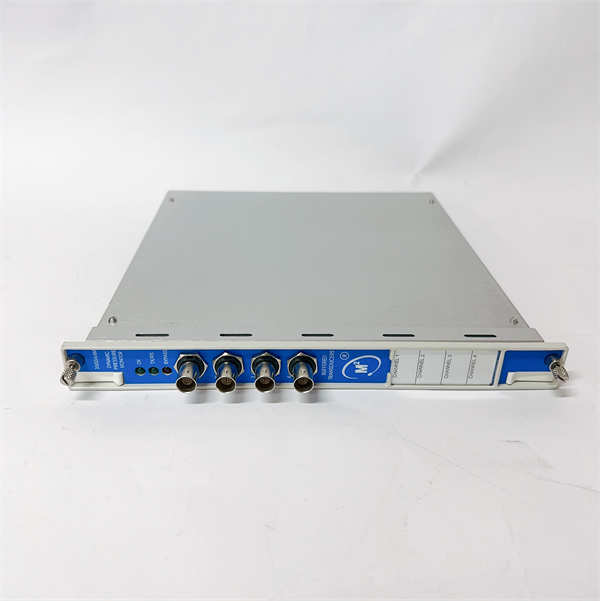

The Bently Nevada 3500/64M (140734-05) is a dual-channel vibration monitoring and protection module designed as part of the 3500 Series Machinery Protection System, widely used in industries such as oil & gas, power generation, petrochemicals, and manufacturing.

This module receives analog vibration signals (typically 4–20 mA or 0–20 mA) from sensors such as proximity probes, accelerometers, or velocity transducers, and processes them to monitor machine health. It provides programmable alarm thresholds and activates relay outputs when predefined vibration levels are exceeded, enabling safe shutdown or alert actions.

The 3500/64M supports integration into larger PLC/DCS systems through standard Modbus communication and analog output interfaces. It is commonly used for monitoring turbines, compressors, pumps, motors, and other rotating equipment.

BENTLY 3500/64M 140734-05

Main Features and Advantages

Dual-Channel Vibration Monitoring

Supports two independent vibration signal inputs for comprehensive machinery diagnostics.

Programmable Alarm Levels

Allows user-defined Alarm and Danger thresholds for each channel to suit specific machine requirements.

Relay Output Activation

Each channel includes Form C relay contacts for triggering external devices like alarms, trip relays, or shutdown circuits.

Flexible Input Compatibility

Accepts standard 4–20 mA or 0–20 mA signals from various types of vibration sensors and transmitters.

Communication Interfaces

Includes RS-485 Modbus for remote monitoring and data acquisition, plus optional Ethernet connectivity through the backplane.

Integration with Bently 3500 Rack System

Designed to be installed in the 3500 rack, alongside other modules like power supplies, communication cards, and tachometer modules.

Diagnostic Capabilities

Built-in diagnostics for detecting sensor faults, signal loss, and internal hardware issues.

Front Panel Display (Optional)

Some versions include an LCD screen for real-time vibration readings and alarm status visualization.

High Reliability and Redundancy Support

Can be configured in redundant setups for mission-critical applications where continuous operation is essential.

Industrial-Grade Design

Engineered to withstand harsh environments, including high temperatures, electrical noise, and mechanical vibrations.

Application Areas

Turbine Monitoring

Used to protect steam, gas, and hydro turbines by continuously monitoring bearing vibration and shaft displacement.

Compressor Protection

Detects abnormal vibration levels in centrifugal and reciprocating compressors, preventing catastrophic failures.

Pump Monitoring

Ensures early detection of imbalance, misalignment, or bearing wear in process pumps.

Generator Sets (GenSets)

Provides vibration-based protection for diesel and gas-powered generators.

Refineries and Petrochemical Plants

Monitors critical rotating equipment in hazardous and non-hazardous areas.

Power Generation Facilities

Integrated into plant-wide protection systems for boilers, turbines, and cooling water pumps.

Offshore and Marine Applications

Installed on drilling rigs, FPSOs, and vessels to monitor propulsion systems and auxiliary machinery.

Predictive Maintenance Systems

Feeds real-time vibration data into condition monitoring systems for predictive maintenance strategies.

BENTLY 3500/64M 140734-05

Related Products

Bently Nevada 3500 Rack: Houses the 3500/64M along with power supplies, interface modules, and communication units.
3500/44 Proximitor Module: Signal conditioning module for eddy current proximity probes.
3500/25 Keyphasor Module: Provides phase reference for vibration analysis and balancing.
3500/42M Tachometer Module: Measures speed and overspeed conditions for rotating machines.
3500/32 Communication Module: Enables MODBUS RTU/TCP or Ethernet/IP communication for integration with DCS/SCADA systems.
3500 Software Suite (e.g., ViewMate, System 1): Used for configuration, monitoring, and trending of all 3500 modules.
Vibration Sensors (Proximity Probes, Accelerometers): Connected to the 3500/64M for field signal acquisition.

Installation, Commissioning and Maintenance Instructions

Installation Preparation

Ensure the control cabinet is clean, dry, and properly grounded before inserting the 3500/64M module. Confirm correct slot assignment in the 3500 rack and verify all backplane connections are intact and free from dust.

Commissioning Steps

Insert the 3500/64M into the appropriate slot in the 3500 chassis. Connect the vibration signal wires to the terminal block according to the application diagram. Set any required addressing or configuration switches if applicable. Power on the system and confirm proper boot-up via LED indicators. Use ViewMate or System 1 software to configure alarm setpoints, relay actions, and communication settings. Perform loop checks and simulate test signals to validate functionality.

Maintenance Suggestions

Regularly monitor module health through diagnostic logs and alarms. Inspect for dust accumulation and perform cleaning as needed. Test relay outputs periodically using built-in diagnostics. Replace faulty modules under hot-standby conditions if redundancy is configured.
