Description

The ABB PCD230A101 3BHE022291R0101 is a high-speed differential protection relay from ABB’s Relion® 650 series, engineered to safeguard transformers, generators, and motors against internal faults in utility and industrial power networks. Utilizing advanced harmonic restraint algorithms and dual-slope percentage differential characteristics, the ABB PCD230A101 3BHE022291R0101 discriminates between genuine faults and inrush currents with <15>ABB PCD230A101 3BHE022291R0101 ensures uninterrupted protection in substations, offshore platforms, and data centers.

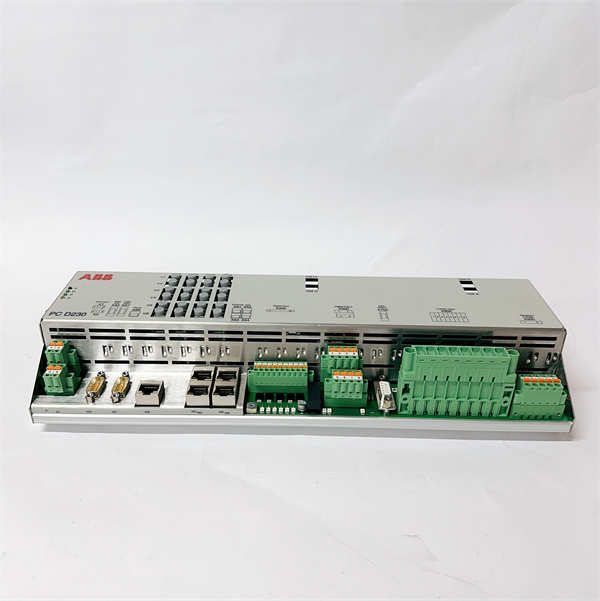

ABB PCD230A101 3BHE022291R0101

Technical Specifications

Main Features and Advantages

Advanced fault discrimination: The ABB PCD230A101 3BHE022291R0101 employs adaptive 2nd/5th harmonic blocking with user-defined slopes (10–50%), preventing false trips during transformer energization. Real-time phasor measurement (1 µs resolution) detects turn-to-turn faults invisible to conventional relays.

Cyber-secure architecture: Hardware-enforced role-based access control and IEC 62351-compliant encrypted communications (GOOSE, MMS) defend against unauthorized access. Secure boot with digital signatures prevents firmware tampering.

Operational resilience: Dual redundant power inputs with 100 ms buffering ensure ride-through during grid disturbances. Vibration-resistant construction (IEC 60255-21-1) suits offshore wind converter platforms. Non-volatile event recording stores 10,000 time-stamped disturbances.

Engineering efficiency: Configure via PCM600 software with drag-and-drop logic editor (CFC). Synchrophasor support (IEEE C37.118) enables wide-area protection coordination. Hot-swappable modules minimize replacement downtime.

Application Field

The ABB PCD230A101 3BHE022291R0101 protects critical assets in energy-intensive sectors. In substations, it secures 400 kV autotransformers with multi-zone differential logic, preventing cascading grid failures. Hydroelectric plants deploy it for generator stator protection, leveraging its <5>

Oil refineries use it for synchronous motor protection in compressor trains, with adaptive restraint settings for variable-frequency drives. Data centers rely on its arc-flash detection for UPS systems. For offshore wind farms, the relay’s salt fog certification (IEC 60068-2-52) ensures reliability in nacelles. Mining operations utilize its immunity to harmonics from dragline excavators.

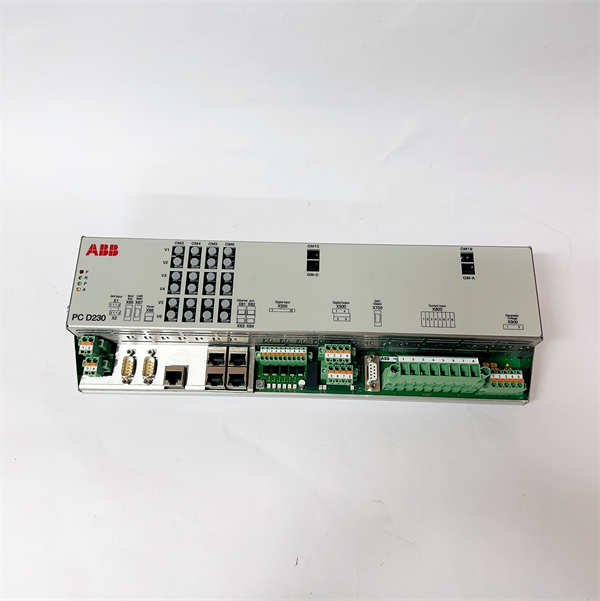

ABB PCD230A101 3BHE022291R0101

Related Products

RET650: Transformer protection relay with temperature monitoring.

REC650: Bay controller for switchgear integration.

REF615: Feeder protection relay for downstream coordination.

SAM600-IO: Process bus module for IEC 61850-9-2LE.

PCM600: Protection and Control IED Manager software.

SPS300: Redundant power supply unit.

DDA230: Differential protection for busbars.

Installation and Maintenance

Pre-installation preparation: Verify CT saturation curves match relay settings (KTD factor ≥2). Ground the ABB PCD230A101 3BHE022291R0101 chassis via dedicated M5 screw (<0>

Maintenance recommendations: Perform annual stability tests using secondary injection kit (e.g., Omicron CMC). Monitor “Relay Health” in PCM600; replace if self-test errors recur. Calibrate analog inputs every 3 years. Update firmware during planned outages using ABB-signed packages.
