The ABB PCD235A101 3BHE032025R0101 is an advanced generator protection relay from ABB’s Relion® 650 series, engineered to secure power generation assets against internal and external electrical faults. Combining high-speed differential protection with comprehensive monitoring capabilities, the ABB PCD235A101 3BHE032025R0101 delivers deterministic tripping (<10>

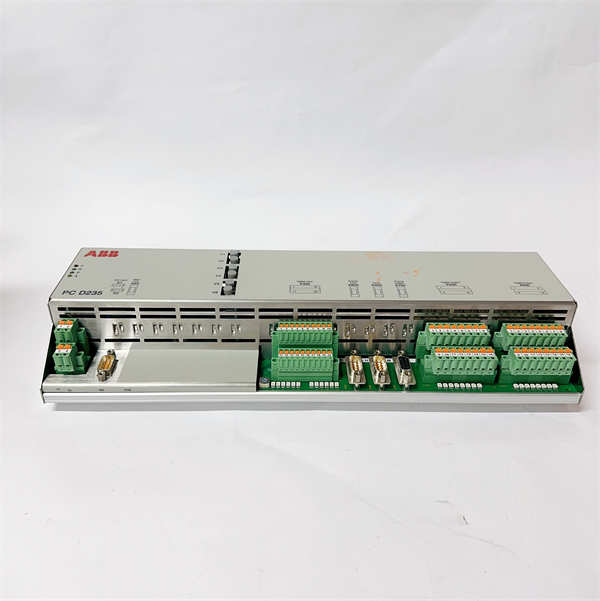

ABB PCD235A101 3BHE032025R0101
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | PCD235A101 3BHE032025R0101 |
| Manufacturer | ABB |
| Product Type | Generator Protection Relay |
| Protection Functions | Stator Differential, Rotor Earth Fault, Overload, Reverse Power |
| Standards Compliance | IEC 60255, ANSI/IEEE C37.90, IEC 61850 |
| Tripping Time | <10> |
| CT Inputs | 1A/5A (configurable), VT 100–120V |
| Harmonic Restraint | 2nd/3rd harmonic blocking (5–40% adjustable) |
| Communication | IEC 61850-8-1 (GOOSE/MMS), Modbus TCP, DNP3.0 |
| Safety Certification | SIL 2 (IEC 61508) |
| Power Supply | 48–250 VDC/AC (redundant inputs) |
| Operating Temperature | -40°C to +70°C |
| HMI | Color LCD, keypad, LED indicators |
| Dimensions | 177 x 190 x 150 mm (HxWxD) |
| Mounting | DIN-rail or panel |
| MTBF | >300,000 hours |
Main Features and Advantages
Precision fault detection: The ABB PCD235A101 3BHE032025R0101 uses adaptive 2nd/3rd harmonic restraint to avoid false trips during generator energization. Its 32-bit DSP processor executes real-time phasor calculations (1 µs resolution), detecting inter-turn faults with 0.5% sensitivity.
Cybersecurity hardened: Role-based access control (RBAC) and IEC 62351-compliant encryption secure GOOSE/MMS communications. Secure boot with cryptographic firmware validation prevents tampering.
Resilient operation: Redundant power inputs with 200 ms buffering withstand voltage dips. Conformal coating protects against humidity and corrosive gases (ISO 12944). Vibration resistance (IEC 60255-21-1) suits turbine deck installations.
Diagnostic depth: Records 500+ event logs with 1 ms timestamps for fault analysis. Synchrophasor support (IEEE C37.118) enables grid stability monitoring. Hot-swappable design allows <5>
Application Field
The ABB PCD235A101 3BHE032025R0101 protects generators in mission-critical environments:
Power Plants: Safeguards 500 MVA+ turbogenerators against stator ground faults and loss-of-field events.
Offshore Wind: Monitors doubly-fed induction generators (DFIGs) in nacelles, leveraging salt-fog certification (IEC 60068-2-52).
Industrial Cogeneration: Prevents motoring in gas turbines during steam valve failures.
Hydroelectric: Detects rotor overheating during low-frequency operation.
Data Centers: Integrates with UPS systems via IEC 61850 for arc-flash backup protection.

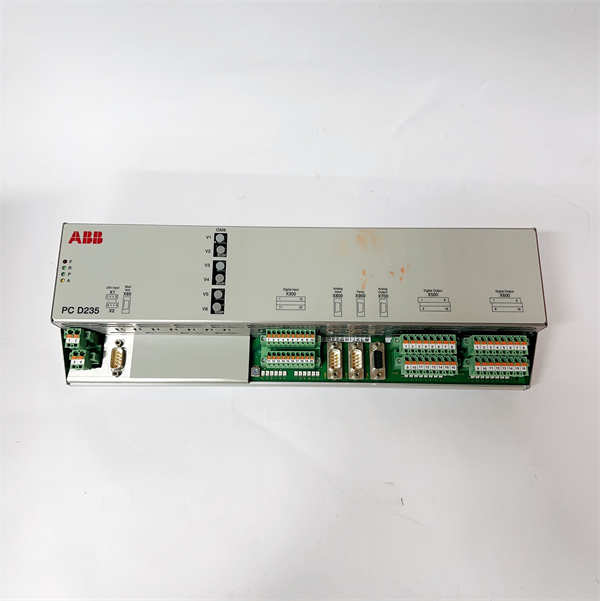

ABB PCD235A101 3BHE032025R0101
Related Products
REG670: Generator management relay with voltage regulation.
RET670: Transformer protection for step-up units.
REC650: Bay controller for switchyard integration.
SAM600-IO: Merging unit for IEC 61850-9-2LE process bus.
PCM600: Engineering software for relay configuration.
REF615: Feeder protection for auxiliary circuits.
UniGear ZS1: Compatible medium-voltage switchgear.
Installation and Maintenance
Pre-installation preparation: Verify CT/VT ratios match relay settings. Ground the ABB PCD235A101 3BHE032025R0101 via M5 earthing screw (<0>
Maintenance recommendations: Test differential elements annually using primary injection (Omicron Test Universe). Monitor “Wear Index” for contact wear; replace if >80%. Update firmware biannually via ABB Ability™ portal. Calibrate analog inputs every 24 months.
