Description

The GE IC695CPE310-ABAB is a high-performance CPU module for GE’s PACSystems RX3i PLC platform, delivering industrial-strength control for complex automation applications. This dual-core processor combines a 1.0 GHz PowerPC core for deterministic logic execution with an ARM core for communications management, achieving sub-2ms scan times for 10K ladder instructions. Supporting up to 64,000 I/O points and 128MB user memory, the GE IC695CPE310-ABAB handles large-scale distributed control systems while maintaining SIL 2 safety integrity. Its unified programming environment (Proficy Machine Edition) supports IEC 61131-3 languages and Cimplicity HMI integration, enabling seamless migration from legacy Series 90-30 systems.

Designed for mission-critical applications, this module features triple-redundant Ethernet ports (10/100/1000 Mbps) supporting SRTP, Modbus TCP, and PROFINET IO-Controller protocols simultaneously. The GE IC695CPE310-ABAB‘s non-volatile storage retains programs during power loss, while built-in cybersecurity includes role-based access control and encrypted firmware validation. With -40°C to +70°C operating range and 50g shock resistance, it excels in harsh environments like mining and energy where vibration and temperature extremes compromise standard controllers.

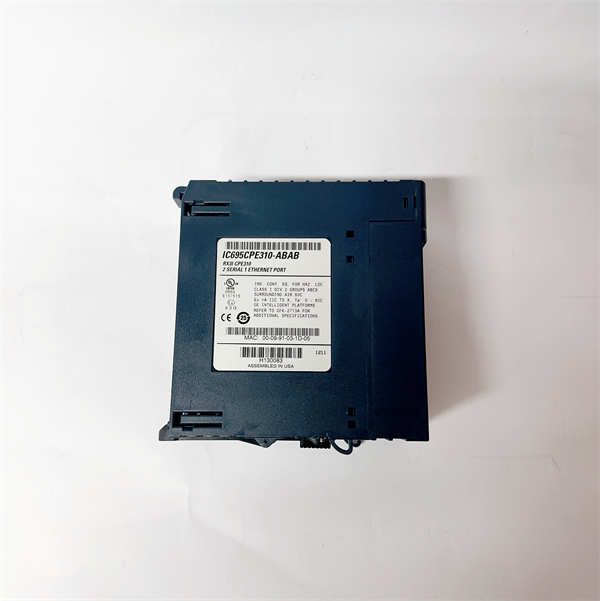

GE IC695CPE310-ABAB

Technical Specifications

Main Features and Advantages

Deterministic Multi-Tasking:
Four independent task zones with hardware-enforced priority scheduling ensure critical safety logic (e.g., E-stops) always interrupts background processes. The GE IC695CPE310-ABAB executes motion control loops with ≤250μs jitter—essential for synchronized conveyors and CNC machines.

Advanced Network Management:
Simultaneous protocol operation allows the GE IC695CPE310-ABAB to control PROFINET drives while exchanging Modbus TCP data with SCADA. Built-in OPC UA server functionality enables secure IIoT connectivity without additional gateways.

Cybersecurity Architecture:
Hardware-based secure boot with cryptographic signature verification blocks unauthorized code. Role-based authentication (RBAC) with Active Directory integration meets NERC CIP requirements for critical infrastructure.

Legacy Integration:
90-30 Series emulation mode preserves investment in existing logic while supporting modern Ethernet Global Data (EGD) exchanges. Dual flash partitions enable online firmware updates with automatic rollback on failure.

Application Field

The GE IC695CPE310-ABAB dominates applications requiring high-speed control and massive I/O:

Power Generation: Governs boiler feedpump sequencing and turbine bypass control with SIL 2-certified logic

Water Treatment: Manages membrane filtration backwash cycles using precision timer interrupts

Automotive: Synchronates robotic welding cells via PROFINET IRT with ≤1μs clock deviation

Pharmaceutical: Enforces 21 CFR Part 11 compliance with audit trails and electronic signatures

Material Handling: Controls high-speed sortation conveyors using embedded motion algorithms

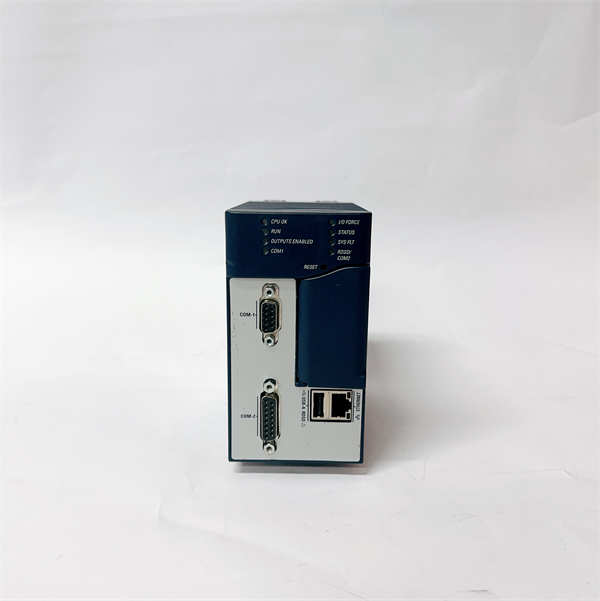

GE IC695CPE310-ABAB

Related Products

IC695CPE305: Entry-level RX3i CPU with 64MB memory

IC695CMM002: Communications module adding EtherNet/IP and DNP3

IC694ACC300: Analog input module (16-channel) for process control

IC695PNC001: PROFINET Controller module for motion expansion

IC695ALG600: Safety CPU for SIL 3 applications

IC695ETM001: Genius bus controller for legacy I/O integration

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (IC695CHSxxx series). Discharge static via wrist strap before handling. Configure IP addresses offline using Proficy ME. Reserve 75mm clearance for heat dissipation.

Maintenance recommendations:
Monitor CPU load via %SR334 system variable; sustained >80% requires logic optimization. Replace backup battery every 5 years. Update firmware during planned outages using GE update packages. Clean air filters quarterly in dusty environments.
