Description

The ACQUISITIONLOGIC AL81G is an advanced data acquisition system module designed to support industrial automation, process monitoring, and control systems. Specially crafted to handle real-time data collection from various sensors and field devices, this module plays a crucial role in capturing high-precision data in environments that require rapid decision-making and control actions. The AL81G offers reliable performance in industries such as manufacturing, energy, and utilities, providing accurate and timely measurements to ensure process efficiency and operational safety.

By integrating seamlessly with SCADA systems and other industrial control platforms, the ACQUISITIONLOGIC AL81G enables real-time monitoring of critical parameters, making it an essential component for systems requiring continuous, high-speed data logging.

Application Scenarios:

In a chemical processing plant, the ACQUISITIONLOGIC AL81G is used to monitor the real-time performance of temperature, pressure, and flow sensors throughout the facility. By collecting data from various sources and sending it to the central control system, the module ensures that operators can monitor the conditions in the plant, predict any potential failures, and take timely corrective actions.

In a power plant, the ACQUISITIONLOGIC AL81G is used for monitoring turbine performance, fuel flow, and exhaust emissions. The system collects real-time data from various instrumentation, allowing operators to make data-driven decisions that improve plant efficiency and reduce energy waste.

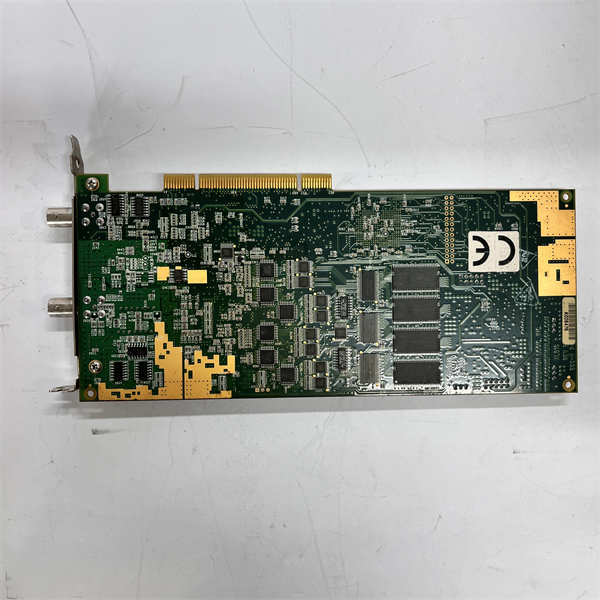

ACQUISITIONLOGIC AL81G

Main Parameters:

Sampling Rate: The ACQUISITIONLOGIC AL81G supports a high-speed sampling rate of up to 1 kHz per channel, enabling it to capture fast-changing data with minimal latency.

Communication Protocol: With support for Modbus RTU, Profibus, and EtherCAT, the module integrates seamlessly into most industrial control and automation systems, ensuring fast and reliable data transmission.

Voltage Rating: Designed for industrial environments, it operates at 24 V DC, which is standard for most automation systems.

Technical Principles and Innovative Values:

Innovation Point 1: The ACQUISITIONLOGIC AL81G features an advanced analog-to-digital conversion (ADC) system that allows for highly accurate measurements, even in demanding industrial applications.

Innovation Point 2: This module supports multiple communication protocols, allowing it to integrate effortlessly with a wide variety of industrial devices and systems. This makes it a versatile solution for diverse applications.

Innovation Point 3: With high-speed sampling capabilities, the ACQUISITIONLOGIC AL81G ensures that real-time data from sensors is captured and transmitted with minimal delay, making it ideal for high-performance applications that require immediate action.

Innovation Point 4: The module’s robust construction and IP20 rating ensure reliability in industrial environments, even in conditions with moderate exposure to dust and vibrations.

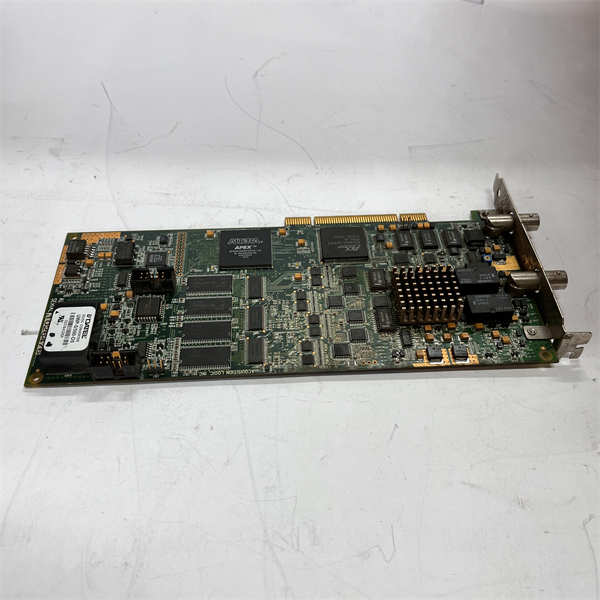

ACQUISITIONLOGIC AL81G

Application Cases and Industry Value:

In an automotive manufacturing plant, the ACQUISITIONLOGIC AL81G was used to monitor various stages of the production line, collecting real-time data on machine temperatures, motor speeds, and production flow. By enabling continuous data collection and early fault detection, the module helped reduce downtime by 25%, improving overall production efficiency.

At a wastewater treatment facility, the ACQUISITIONLOGIC AL81G was deployed to monitor critical parameters such as pH, turbidity, and flow rate. The system enabled operators to track the effectiveness of treatment processes in real time, allowing for prompt adjustments that optimized chemical dosing and reduced operational costs. As a result, the facility achieved a 30% reduction in chemical usage.

Related Product Combination Solutions:

For an expanded data acquisition system, consider integrating the ACQUISITIONLOGIC AL81G with the following related products:

ACQUISITIONLOGIC AL80G – A companion module designed to add additional digital input/output capabilities, expanding the scope of the AL81G system for larger applications.

ACQUISITIONLOGIC AL82G – A more advanced model with enhanced sampling rates and additional communication options, perfect for high-speed or high-volume data acquisition needs.

ACQUISITIONLOGIC AL88G – A specialized version of the AL81G, equipped with additional analog outputs for control systems, useful for applications in closed-loop control.

ACQUISITIONLOGIC AL90G – A gateway module that enables remote data access via cloud platforms, making it easier to monitor and analyze data from anywhere.

ACQUISITIONLOGIC AL70G – A versatile I/O expansion module that adds more analog and digital channels, offering greater scalability and flexibility to the AL81G system.

These related products enhance the capabilities of the ACQUISITIONLOGIC AL81G, enabling comprehensive data acquisition, monitoring, and control solutions for a variety of industrial applications.

Installation, Maintenance, and Full-Cycle Support:

The ACQUISITIONLOGIC AL81G is designed for easy installation with straightforward wiring and connection options. The module can be mounted on a DIN rail for convenient integration into control panels and automation racks. The product comes with detailed installation guides to facilitate a seamless setup process.

Routine maintenance for the ACQUISITIONLOGIC AL81G includes verifying communication connections, checking the integrity of input/output signals, and performing software updates. The module’s built-in diagnostic functions allow for quick identification of potential issues, minimizing downtime and ensuring continuous operation.

AcquisitionLogic offers robust after-sales support, including access to technical assistance, software updates, and a reliable spare parts supply. The company’s service team is committed to ensuring that customers achieve maximum performance from their AL81G module throughout its lifecycle.
