Description

Product Introduction

The HIMA F8621A is a high-integrity digital input module engineered for critical safety applications in process and machinery protection systems. As part of HIMA’s F35/F70 safety controller platform, this SIL 3 certified module interfaces with emergency stop devices, safety switches, and trip signals to provide fail-safe monitoring of plant conditions. The F8621A converts 24V DC field signals into galvanically isolated logic states for the safety controller, featuring continuous channel diagnostics to detect faults like wire breaks, short circuits, or internal component failures.

Designed for deployment in hazardous environments like oil refineries and chemical plants, the HIMA F8621A implements redundant signal processing paths with cross-comparison diagnostics. Its value lies in enabling safety instrumented functions (SIFs) with sub-50ms response times while meeting rigorous international standards. The module’s hot-swappable design allows replacement without compromising safety system availability – a critical feature for continuous processes. With ATEX/IECEx Zone 2 certification, the HIMA F8621A provides reliable safety monitoring in explosive atmospheres where conventional I/O would pose unacceptable risks.

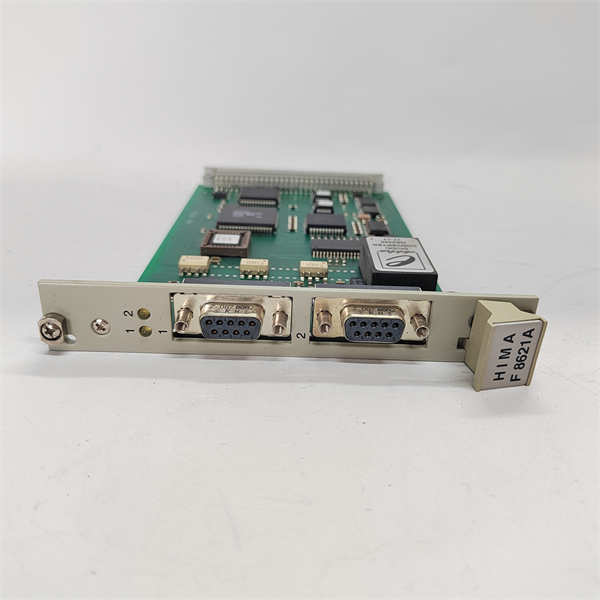

HIMA F8621A

Core Advantages and Technical Highlights

Ultra-high diagnostic coverage: The HIMA F8621A achieves >99% diagnostic coverage through continuous hardware self-checks. Dual microprocessors compare input signals in real-time, while integrated circuit monitoring detects FET failures and analog measurement drift.

Cross-channel comparison: Implements Diversity Monitoring where even-numbered channels serve as reference for odd channels (and vice-versa), detecting common-cause failures that escape conventional diagnostics.

Intrinsic safety integration: Optional IS barriers (e.g., HIMA Z7226) enable direct connection to Zone 0/1 field devices without external isolators. The module’s <0>

Fault-tolerant architecture: Dual-redundant power inputs with reverse polarity protection. Short-circuit proof design withstands 60V continuous miswiring. Galvanic isolation >500V AC between field/channels/backplane.

Engineering efficiency: Automatic address assignment via backplane. LED per channel indicates signal state and fault condition. Configuration via HIMatrix software with pre-certified function blocks.

Typical Application Scenarios

Emergency shutdown systems: In offshore platforms, the HIMA F8621A monitors pressure safety valves (PSVs) and gas detection sensors. Its <15ms>

Turbine overspeed protection: Monitors magnetic pickups on steam turbine shafts. Dual-channel voting (2oo3) with F8621A modules prevents spurious trips while guaranteeing shutdown on genuine overspeed events.

Chemical reactor safeguards: Detects flame failure in burner management systems (BMS). Cross-comparison diagnostics differentiate between actual flame loss and sensor failure.

Railway signaling: Processes track occupancy signals in SIL 4 configurations (with redundancy). The module’s -40°C operation ensures reliability in outdoor interlocking cabinets.

Related Model Recommendations

F8621X: Non-redundant variant for non-critical applications

F8650X: SIL 3 Digital Output Module (complementary partner)

F35/F70: Central Processing Units

F8627A: Analog Input Module (4-20mA SIL 3)

F8623A: HART-enabled Analog Input

F8654A: Relay Output Module

F8620A: Digital Input with Pulse Counting

F-I/O IS: Intrinsic Safety Interface System

PLX 42: Modular Safety PLC Platform

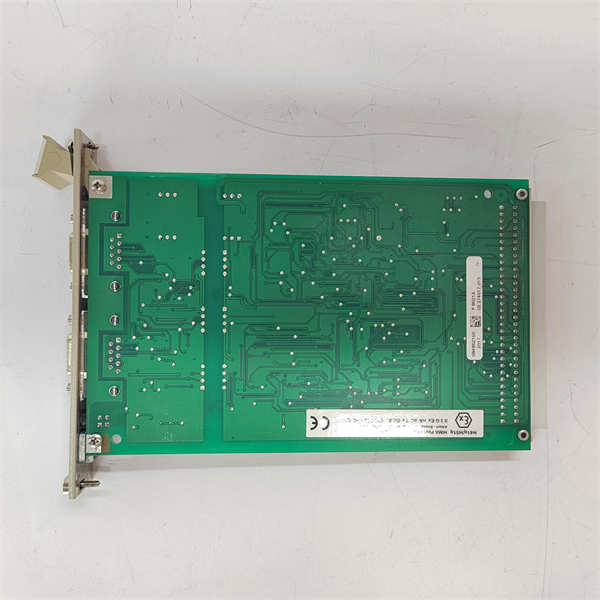

HIMA F8621A

Installation, Commissioning and Maintenance Instructions

Installation preparation: De-energize the F35/F70 rack before insertion. Verify backplane compatibility (supports F35-4B/F70-4B racks). Use 18-22 AWG shielded twisted pairs for field wiring. Ground shields at single point only. Maintain 10mm channel separation for high-voltage circuits.

Commissioning procedure: Insert module until backplane connector seats audibly. Configure channel parameters in HIMatrix: Define normal state (NO/NC), filter time (1-255ms), and voting logic. Perform forced value test to validate signal path integrity. Use HIMA Diag+ software to verify diagnostic coverage.

Maintenance suggestions: Quarterly inspection of terminal tightness (0.4-0.6 N·m torque). Annually exercise test switches to verify diagnostics. Replace after 15 years or 100,000 power cycles (whichever first). Monitor “CH Diag” LEDs:

Green: Normal operation

Red blinking: Field fault (e.g., wire break)

Red steady: Internal hardware failure
Always replace with identical part revision to avoid compatibility issues.
